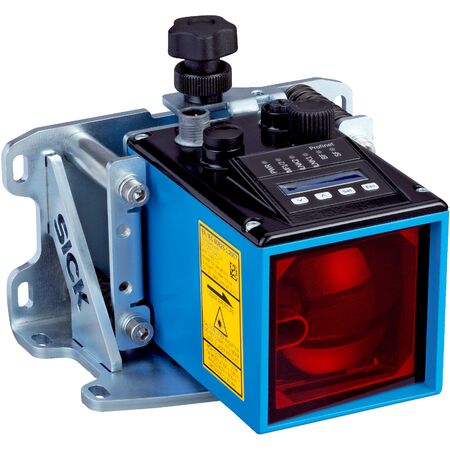

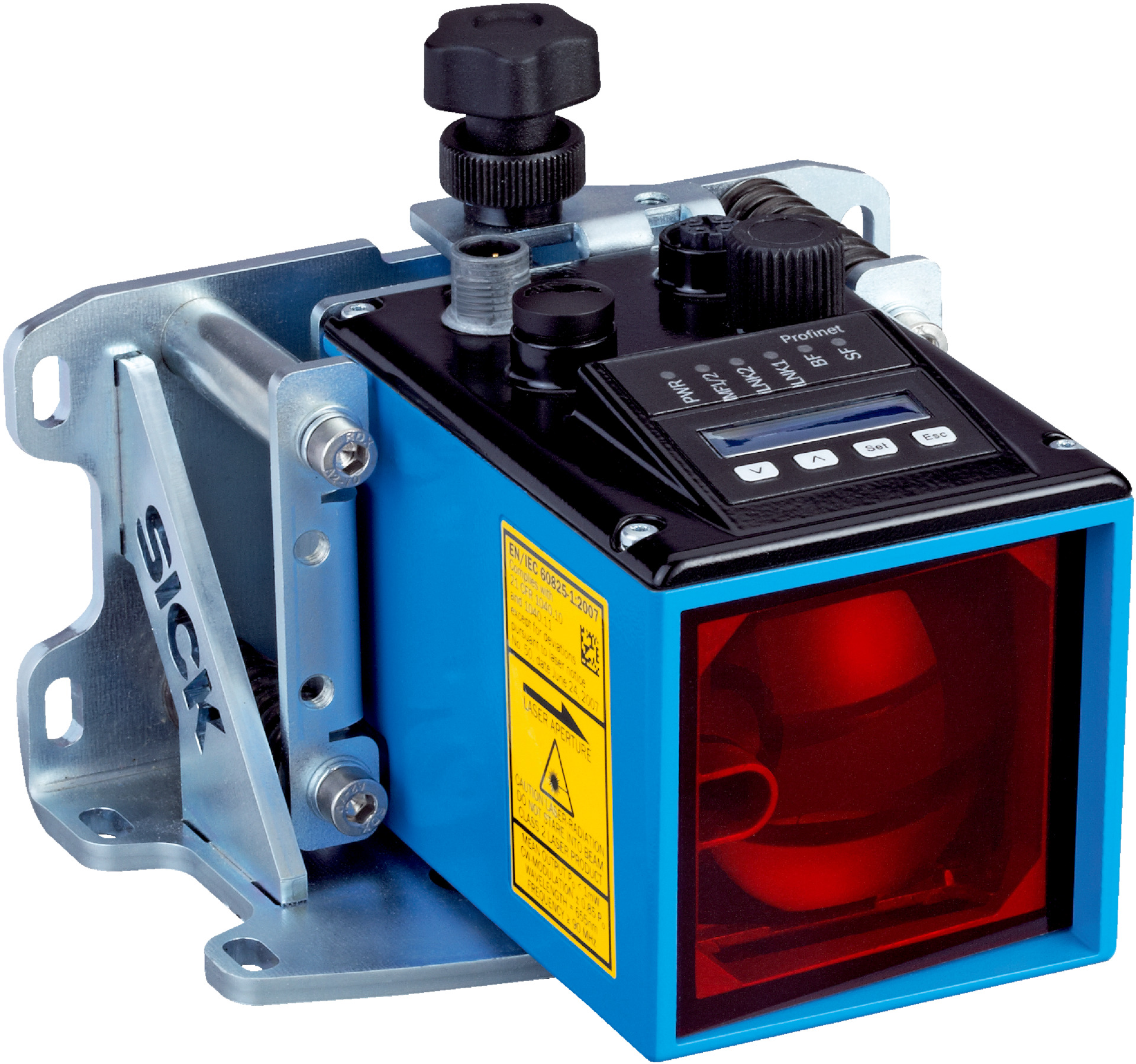

Laser Distance Sensor DL100-21HA2109 | 0.15m to 100m Range | 0.1mm Resolution | IP65 Rated | by SICK
The Laser Distance Sensor DL100-21HA2109 offers a measuring range from 0.15 m to 100 m on reflective tape, with high resolution options of 0.1 mm and repeatability of 0.5 mm. Ideal for industrial automation and process control, this sensor features a fast response time of 2 ms and operates efficiently in various environments, ensuring accurate distance measurements for quality control and safety monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0.15 m to 100 m on diamond grade reflective tape
- Resolution: 0.1 mm, 0.125 mm, 1 mm, 10 mm, 100 mm
- Repeatability: 0.5 mm
- Measurement accuracy: ±2 mm
- Response time: 2 ms
- Measurement cycle time: 1 ms
- Output time: 1 ms
- Light source: Visible red laser, class 2
- Typical light spot size: 5 mm + (2 mm x distance in m)
- Max movement speed: 15 m/s
- Acceleration max: ≤ 15 m/s²
- Supply voltage: DC 18 V to 30 V
- Current consumption: < 1,000 mA at 24 V DC
- Enclosure rating: IP65
- Protection class: III
- Display: 6 digit 5 x 7 dot matrix with LEDs
- Connection: Male M12 SPEEDCON compatible connector
- Dimensions (H x L x W): 82.5mm x 100.2mm x 69.4mm
- Weight: 1.6 kg
Key Features
- Measuring range from 0.15 m to 100 m on diamond grade reflective tape
- High resolution options: 0.1 mm, 0.125 mm, 1 mm, 10 mm, 100 mm
- Repeatability of 0.5 mm and measurement accuracy of ±2 mm
- Fast response time of 2 ms and measurement cycle time of 1 ms
- Visible red laser light source, laser class 2 compliant with IEC 60825-1:2014
- Maximum movement speed up to 15 m/s and acceleration ≤ 15 m/s²
- Equipped with heating for operation in cold environments
- Digital outputs with push-pull PNP/NPN type and multifunctional input
- Supply voltage DC 18 V to 30 V with current consumption under 1 A
- Robust metal aluminum die cast housing with IP65 rating
- Operating temperature range from -40 °C to +55 °C (with heating) and up to +75 °C with cooling case
