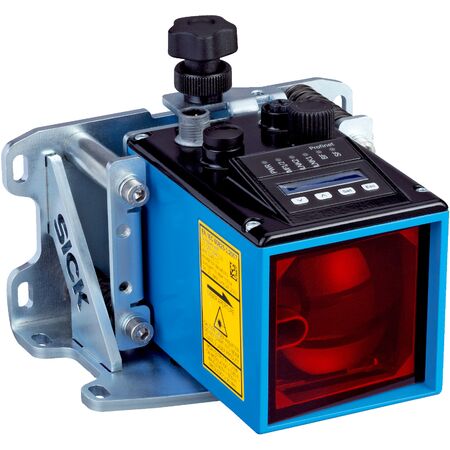

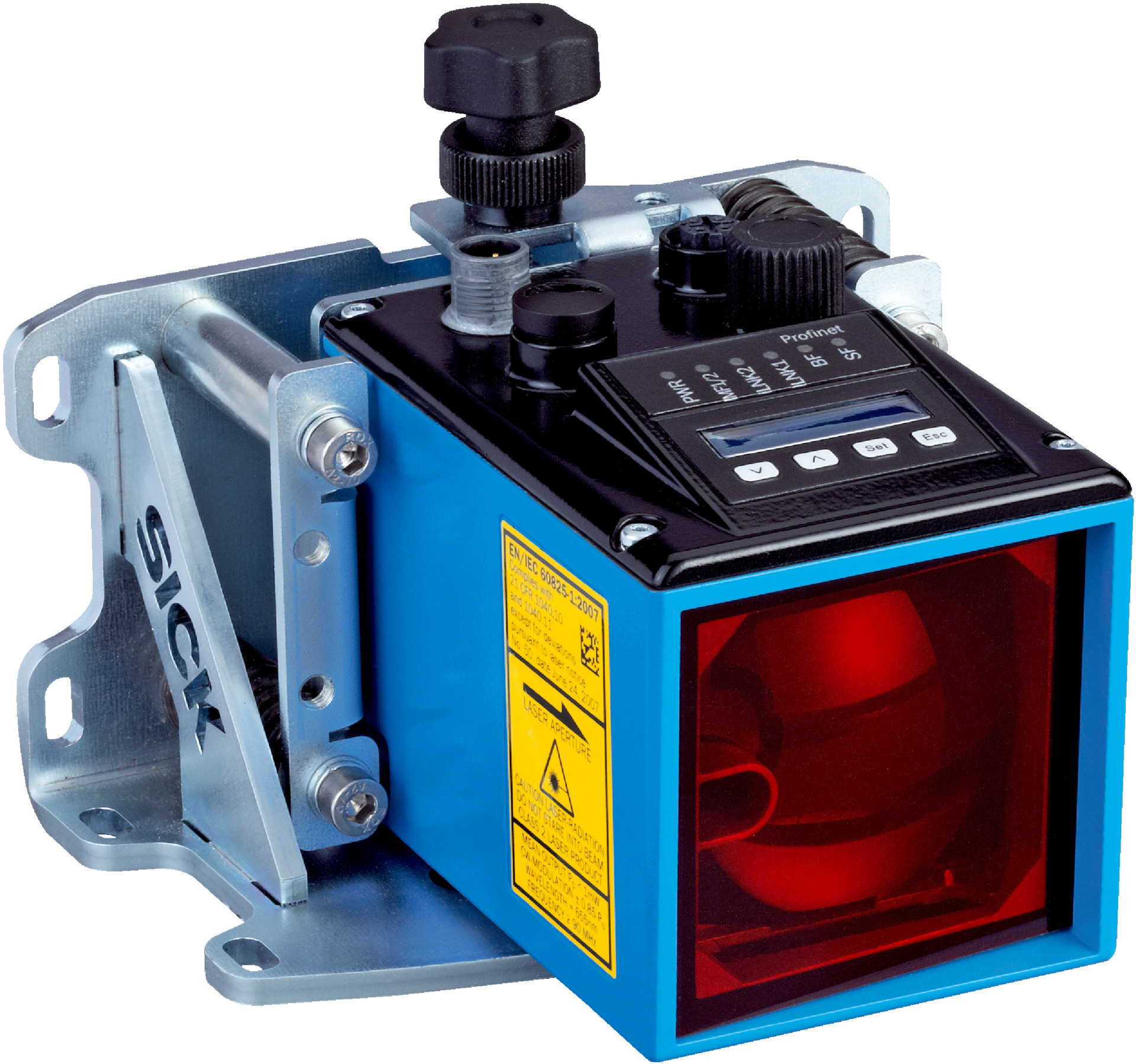

Laser Distance Sensor DL100-21HA2112 | 0.15m to 100m Range | 0.1mm to 100mm Resolution | IP65 Rated | by SICK
The Laser Distance Sensor DL100-21HA2112 offers a measuring range from 0.15m to 100m, making it perfect for indoor industrial applications. With adjustable resolution from 0.1mm to 100mm and a fast response time of 2ms, it ensures precise measurements for automation and process control. Built for durability with an IP65 rating, this sensor is ideal for quality control and safety monitoring in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0.15 m to 100 m on diamond grade reflective tape
- Resolution: Adjustable from 0.1 mm to 100 mm
- Repeatability: 0.5 mm
- Measurement accuracy: ±2 mm
- Response time: 2 ms
- Measurement cycle time: 1 ms
- Light source: Visible red laser, class 2
- Maximum movement speed: 15 m/s
- Acceleration max: ≤ 15 m/s²
- Supply voltage: DC 18 V to 30 V
- Current consumption: < 1,000 mA at 24 V DC
- Enclosure rating: IP65
- Housing material: Aluminum die cast
- Operating temperature: -40 °C to +55 °C with heating
- Dimensions (H x L x W): 82.5mm x 100.2mm x 69.4mm
- Weight: 1.6 kg
Key Features
- Measuring range from 0.15 m to 100 m on diamond grade reflective tape
- High resolution adjustable from 0.1 mm to 100 mm
- Repeatability of 0.5 mm and measurement accuracy of ±2 mm
- Fast response time of 2 ms and measurement cycle time of 1 ms
- Visible red laser light source, laser class 2 compliant with IEC 60825-1:2014
- Maximum movement speed of 15 m/s and acceleration up to 15 m/s²
- Equipped with heating for operation in cold environments
- PROFINET interface and digital push-pull outputs (PNP/NPN)
- Supply voltage DC 18 V to 30 V with current consumption under 1 A
- Enclosure rated IP65 with metal aluminum die cast housing
- Operating temperature range from -40 °C to +55 °C (with heating) and up to +75 °C with cooling case
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Indoor distance measurement using diamond grade reflective tape
- Industrial automation and process control
- Speed and distance monitoring in manufacturing
- Quality control and safety monitoring
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
- Supports precise measurement to optimize industrial processes and reduce material waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK DL100-21HA2112 Laser Distance Sensor is available for immediate purchase, ideal for indoor industrial measurement and automation applications.
