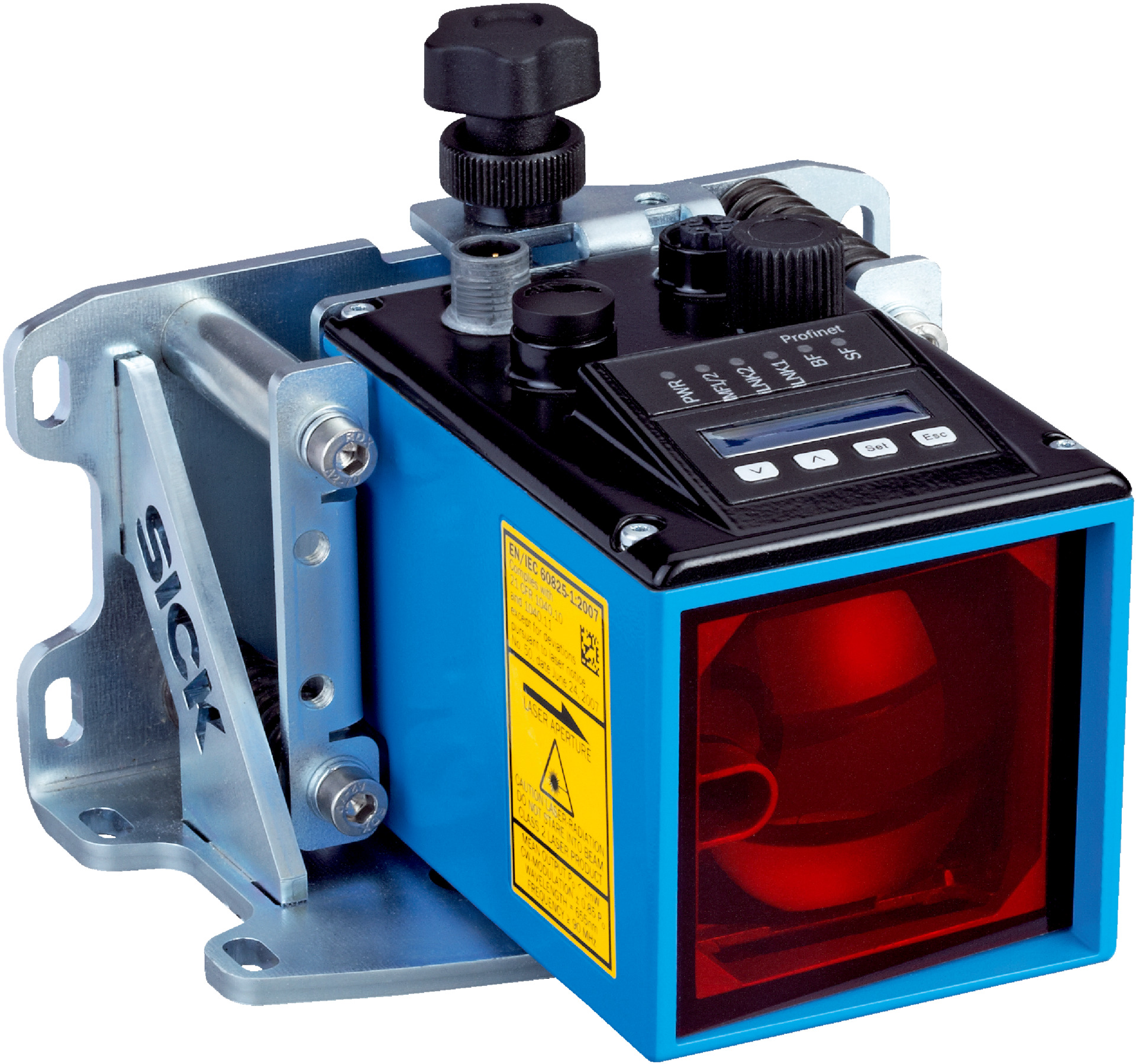

Laser Distance Sensor DL100-22AA2109 | 0.15m to 200m Range | 0.1mm Resolution | IP65 Rated | by SICK
The Laser Distance Sensor DL100-22AA2109 offers a measuring range from 0.15 m to 200 m on reflective tape, with high resolution options down to 0.1 mm. Designed for industrial automation and process control, this sensor features a fast response time of 2 ms and a robust IP65-rated aluminum housing, making it ideal for indoor distance measurement and safety monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0.15 m to 200 m on diamond grade reflective tape
- Resolution: 0.1 mm, 0.125 mm, 1 mm, 10 mm, 100 mm
- Repeatability: 1 mm
- Measurement accuracy: ±2.5 mm
- Response time: 2 ms
- Measurement cycle time: 1 ms
- Output time: 1 ms
- Light source: Visible red laser, class 2
- Typical light spot size: 5 mm + (2 mm x distance in m)
- Max movement speed: 15 m/s
- Acceleration max: ≤ 15 m/s²
- Supply voltage: DC 18 V to 30 V
- Current consumption: < 250 mA at 24 V DC
- Enclosure rating: IP65
- Housing material: Aluminum die cast
- Display: 6 digit 5x7 dot matrix with LEDs
- Connection: Male M12 SPEEDCON compatible connector
- Dimensions (H x L x W): 83mm x 100mm x 69mm
- Weight: 1.6 kg
Key Features
- Measuring range from 0.15 m to 200 m on diamond grade reflective tape
- High resolution options: 0.1 mm, 0.125 mm, 1 mm, 10 mm, 100 mm
- Fast response time of 2 ms and measurement cycle time of 1 ms
- Visible red laser light source, laser class 2 compliant with IEC 60825-1:2014
- Digital outputs with push-pull PNP/NPN type and multifunctional input
- Robust metal aluminum die cast housing with IP65 rating
- Operating temperature range from -20 °C to +55 °C (up to +75 °C with cooling case)
- 6 digit 5x7 dot matrix display with LEDs for indication
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup, calibration, and compliance with safety standards.
Applications
- Indoor distance measurement using reflective targets
- Industrial automation and process control
- Safety monitoring and positioning
- Speed and acceleration measurement in manufacturing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DL100-22AA2109 Laser Distance Sensor is available for immediate purchase, ideal for industrial indoor measurement and automation applications.
