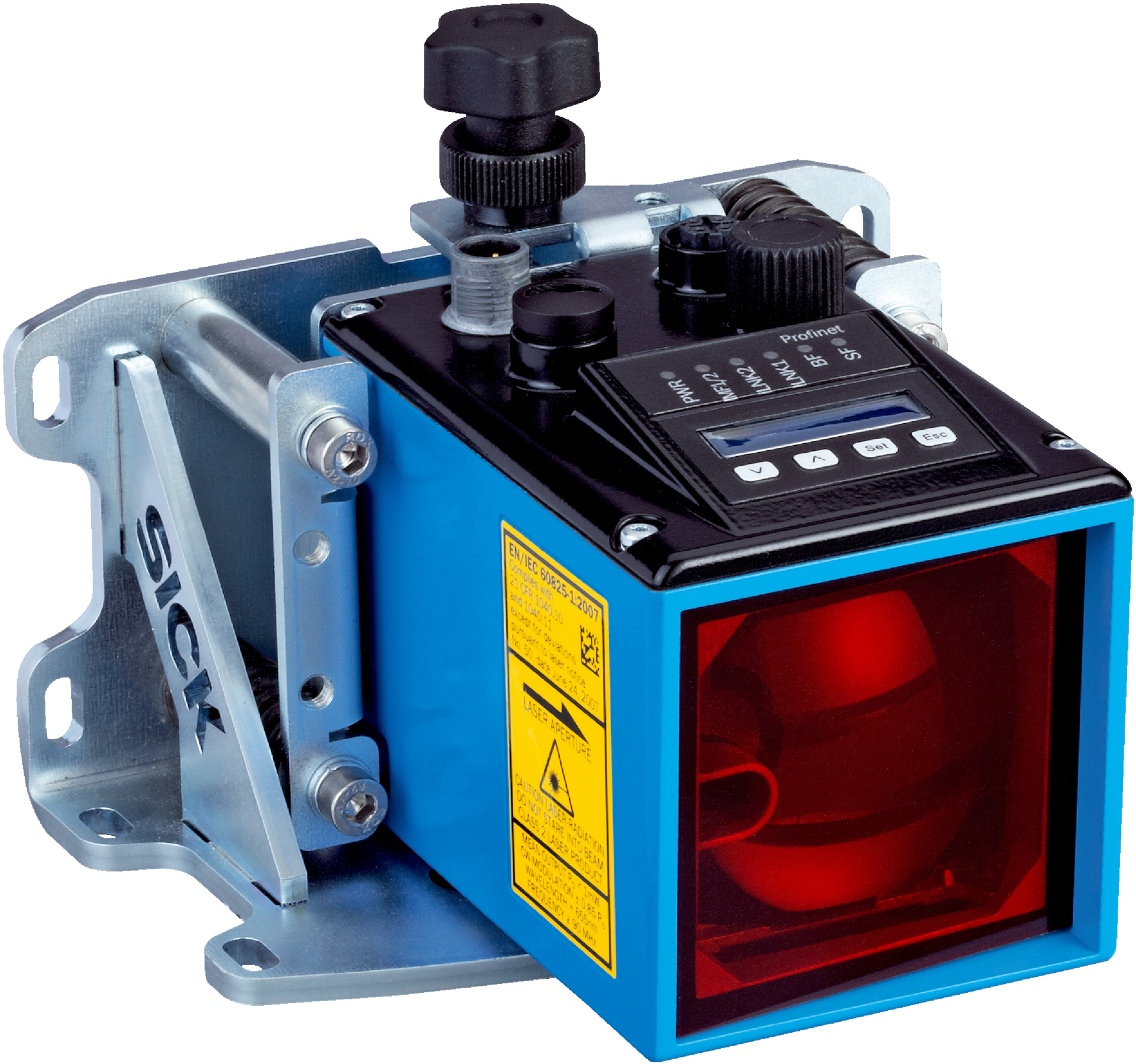

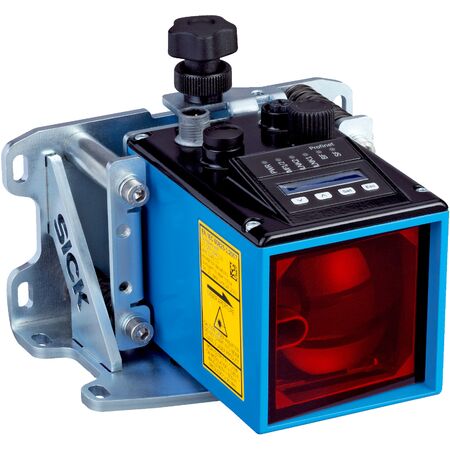

Laser Distance Sensor DL100-23HA2211 | 0.15m to 300m Range | High Resolution | IP65 Rated | by SICK
The Laser Distance Sensor DL100-23HA2211 is designed for precise indoor distance measurement, featuring a measuring range from 0.15 m to 300 m on reflective tape and high resolution adjustable from 0.1 mm to 100 mm. With an IP65 rated enclosure and fast response time of 2 ms, it's perfect for industrial automation and process control, ensuring accuracy and reliability in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 83mm x 100mm x 69mm
- Weight: 1.6 kg
Key Features
- Measuring range from 0.15 m to 300 m on diamond grade reflective tape
- High resolution adjustable from 0.1 mm to 100 mm
- Repeatability of 2 mm and measurement accuracy of ±3 mm
- Fast response time of 2 ms and measurement cycle time of 1 ms
- Visible red laser light source, laser class 2 compliant with IEC 60825-1:2014
- IP65 rated enclosure for robust protection
- EtherCAT® interface with push-pull PNP/NPN digital outputs
- Operating temperature range from -40 °C to +55 °C (up to +75 °C with cooling case)
- Metal aluminum die cast housing with plastic PMMA window
- 6 digit 5x7 dot matrix display with LEDs for indication
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper setup and compliance with safety standards.
Applications
- Indoor distance measurement with reflector targets
- Industrial automation and process control
- High precision measurement in manufacturing environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal housing reduces waste and extends product life
- Low power consumption with supply voltage DC 18 V to 30 V
- High measurement accuracy reduces material waste in industrial processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK DL100-23HA2211 Laser Distance Sensor is available for immediate purchase, ideal for precise indoor industrial measurement applications.
