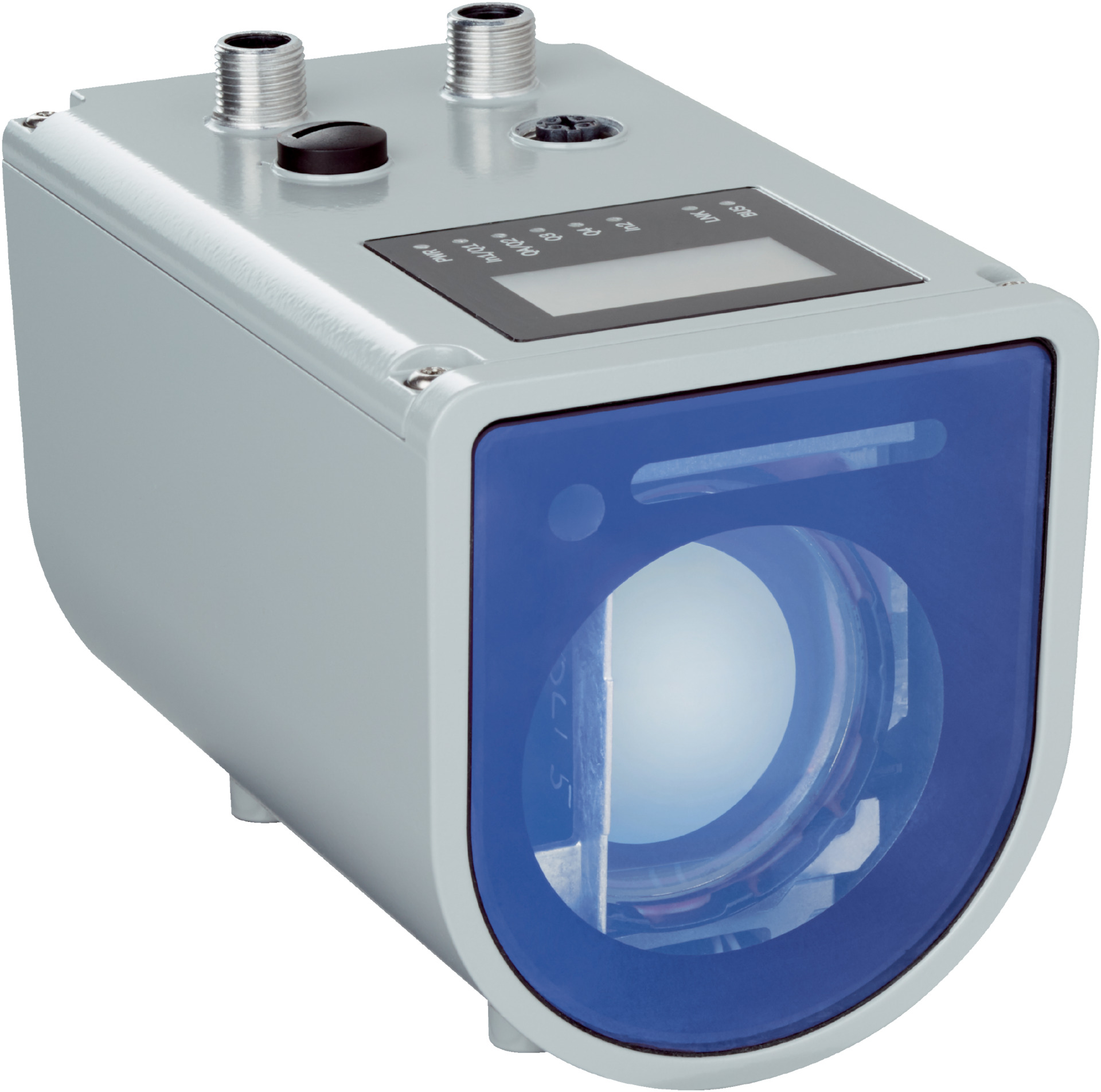

Laser Distance Sensor DL1000-S11101 | HDDM+ Measurement | 0.2m to 1500m Range | IP65 & IP67 Rated | by SICK
The Laser Distance Sensor DL1000-S11101 utilizes HDDM+ technology for precise measurements ranging from 0.2m to 1500m, making it ideal for industrial distance measurement and automation. With a high resolution adjustable from 0.001 mm to 100 mm and an IP65/IP67 enclosure rating, this sensor is built for durability and reliability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: HDDM+
- Measuring range: 0.2 m to 1500 m on diamond grade reflective tape
- Resolution: 0.001 mm to 100 mm adjustable
- Repeatability: ≥ 1 mm
- Measurement accuracy: Typically ± 15 mm
- Response time: 3 ms to 384 ms
- Measurement cycle time: 1 ms, 4 ms, 16 ms selectable
- Output time: ≥ 1 ms
- Light source: Infrared laser 905 nm, visible red laser 650 nm
- Laser class: 1 (IEC 60825-1:2014)
- Typical light spot size varies with distance from 5 mm x 20 mm at 1 m to 4200 mm x 920 mm at ≥ 1500 m
- Filters: Rain, snow, fog, Kalman filter, moving average
- Max movement speed: 128 m/s
- Supply voltage: DC 18 V to 30 V, reverse polarity protected
- Power consumption: ≤ 22 W (heating off), ≤ 35 W (heating on)
- Enclosure rating: IP65 and IP67
- Protection class: III (EN 61140)
- Interfaces: Ethernet TCP/IP 10/100 MBit/s, RS-422 serial, SSI
- Inputs/outputs: Digital and analog outputs, digital inputs
- Display: Graphical resistive touch with status LEDs
- Operating temperature: -40 °C to +55 °C (up to +95 °C with cooling case)
- Storage temperature: -40 °C to +75 °C
- Shock resistance: 30 g / 6 ms
- Dimensions (H x L x W): 104mm x 141mm x 84mm
- Weight: 0.98 kg
Key Features
- Measurement principle: HDDM+
- Measuring range: 0.2 m to 1500 m on diamond grade reflective tape
- High resolution adjustable from 0.001 mm to 100 mm
- Repeatability ≥ 1 mm
- Measurement accuracy typically ± 15 mm
- Fast response time from 3 ms to 384 ms
- Infrared measuring laser (905 nm) with visible red alignment laser (650 nm)
- Laser class 1 compliant with IEC 60825-1:2014
- Multiple filters including rain, snow, fog, and Kalman filter
- Average laser service life of 100,000 hours
- Max movement speed up to 128 m/s
- Graphical resistive touch display with status LEDs
- Enclosure rated IP65 and IP67
- Shock resistant to 30 g / 6 ms
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup, calibration, and compliance with safety standards.
Applications
- Industrial distance measurement
- Automation and process control
- Material handling and logistics
- Safety and monitoring in manufacturing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long laser service life reduces waste and replacement frequency
- Energy-efficient operation with low power consumption
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK DL1000-S11101 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation, safety monitoring, and precision measurement applications.
