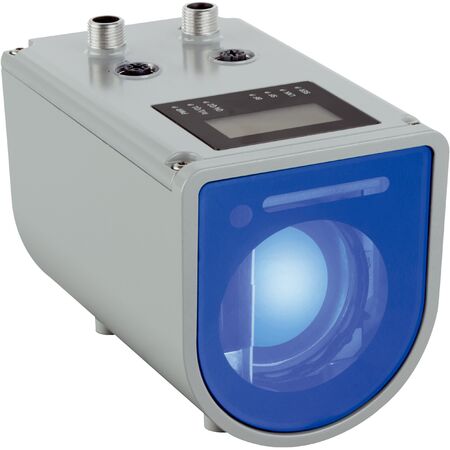

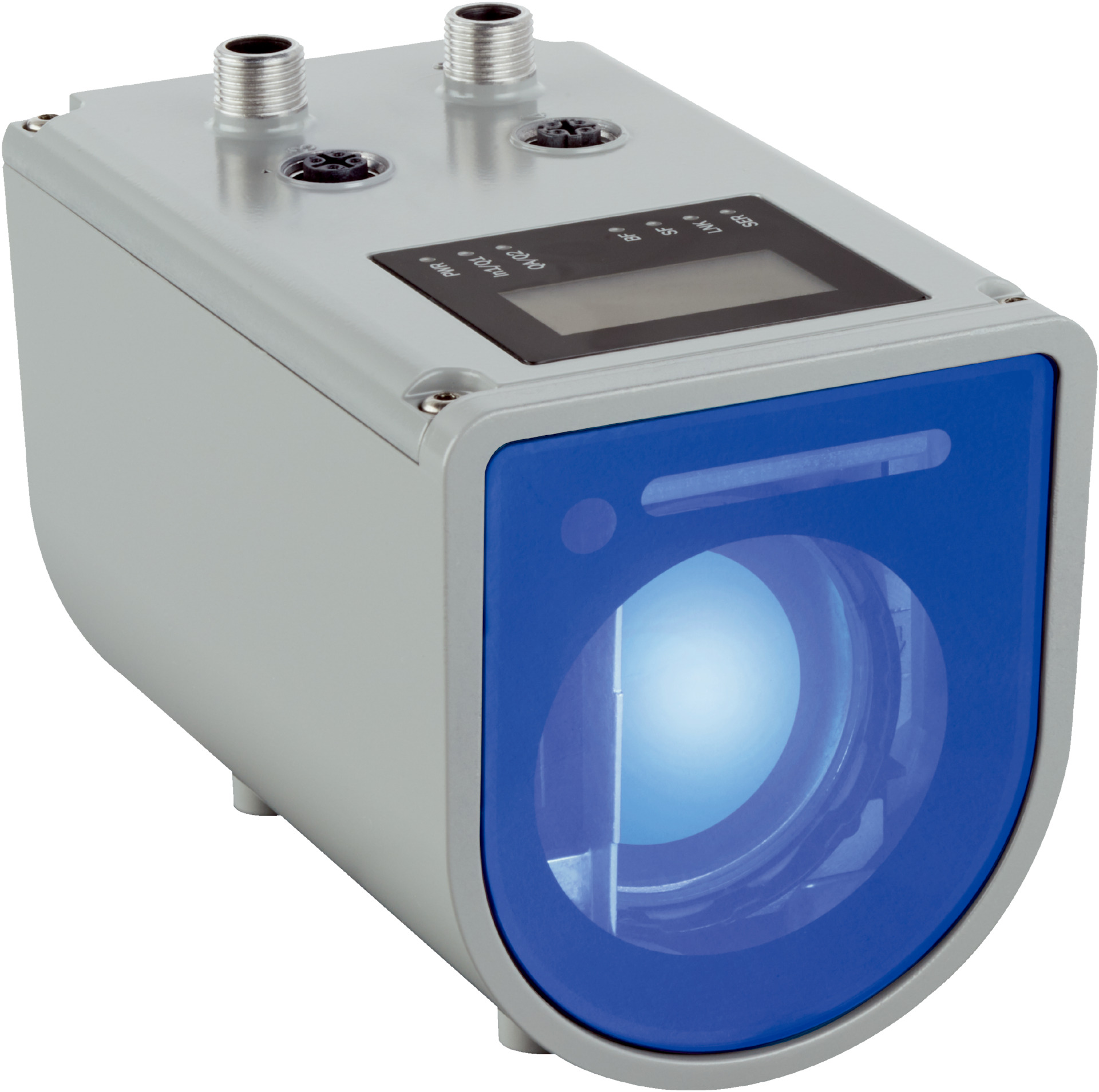

Laser Distance Sensor DL1000-S11102 | HDDM+ Technology | 0.2m to 1500m Range | IP65/IP67 Rated | by SICK
The Laser Distance Sensor DL1000-S11102 utilizes advanced HDDM+ technology for precise measurements ranging from 0.2m to 1500m, making it ideal for industrial automation and safety monitoring. With a high resolution adjustable from 0.001 mm to 100 mm and an IP65/IP67 enclosure rating, this sensor is built for durability and reliability in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: HDDM+
- Measuring range: 0.2 m to 1500 m on diamond grade reflective tape
- Resolution: 0.001 mm to 100 mm adjustable
- Repeatability: ≥ 1 mm
- Measurement accuracy: Typical ± 15 mm
- Response time: 3 ms to 384 ms
- Measurement cycle time: 1 ms, 4 ms, 16 ms selectable
- Output time: ≥ 1 ms
- Light source: Infrared laser 905 nm, visible red laser 650 nm
- Laser class: 1 (IEC 60825-1:2014)
- Light spot size varies with distance from 5 mm x 20 mm at 1 m to 4200 mm x 920 mm at ≥1500 m
- Filters: Rain, snow, fog, moving average distance and speed, Kalman filter
- Additional functions: Selection of relevant distance and signal level range, echo selection
- Average laser service life: 100,000 hours at 25°C
- Max movement speed: 128 m/s
- Supply voltage: DC 18 V to 30 V, reverse polarity protected
- Power consumption: ≤ 22 W (heating off), ≤ 35 W (heating on)
- Enclosure rating: IP65/IP67
- Protection class: III (EN 61140)
- Interfaces: Ethernet TCP/IP, PROFIBUS DP, RS-422, SSI
- Display: Graphical resistive touch with status LEDs
- Housing material: Aluminum alloy (AlSi12)
- Window material: Glass
- Connection type: Round connector M12 x 1
- Dimensions (H x L x W): 104mm x 141mm x 84mm
- Weight: 1 kg
Key Features
- Measurement principle: HDDM+
- Measuring range: 0.2 m to 1500 m on diamond grade reflective tape
- High resolution adjustable from 0.001 mm to 100 mm
- Repeatability ≥ 1 mm
- Measurement accuracy typically ± 15 mm
- Fast response time from 3 ms to 384 ms
- Infrared measuring laser (905 nm) and visible red alignment laser (650 nm)
- Laser class 1 safety standard
- Multiple filters including rain, snow, fog, and Kalman filter
- Average laser service life of 100,000 hours
- Max movement speed up to 128 m/s
- Graphical resistive touch display with status LEDs
- Enclosure rated IP65/IP67 for harsh environments
- Metal housing with glass window
- Multiple interface options including Ethernet TCP/IP, PROFIBUS DP, RS-422, SSI
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup, calibration, and compliance with safety standards.
Applications
- Industrial distance measurement
- Automation and process control
- Material handling and logistics
- Safety and monitoring systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long laser service life reduces waste and replacement frequency
- Energy-efficient operation with low power consumption
- Robust IP65/IP67 rated housing ensures durability and reduces environmental impact from replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK DL1000-S11102 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation, safety monitoring, and precision measurement applications.
