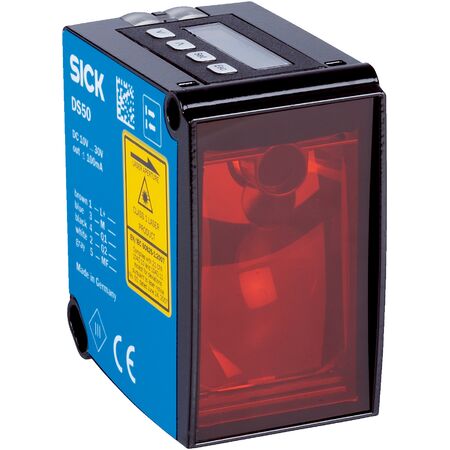

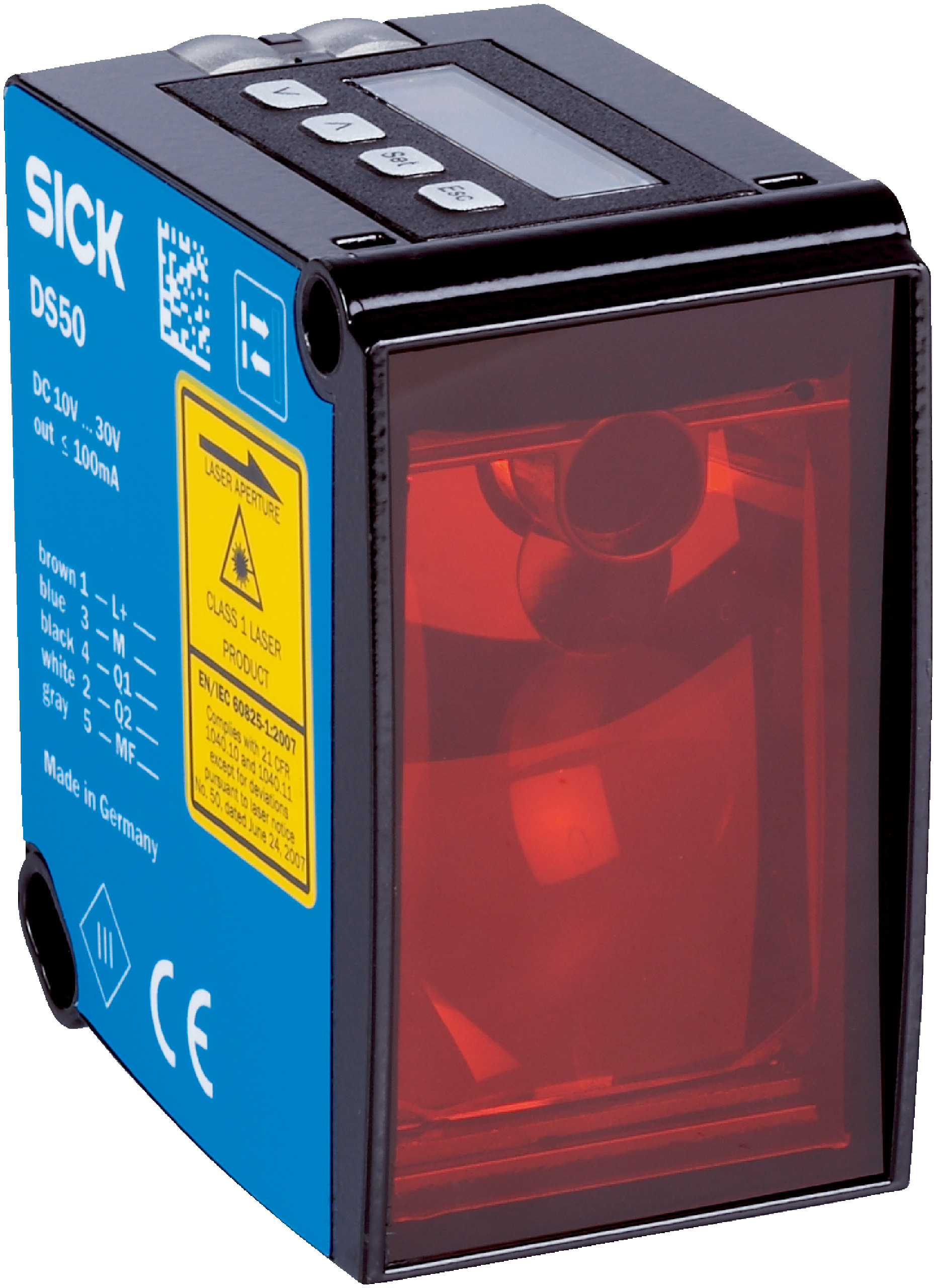

Laser Distance Sensor DL50-P2228 | 200 mm to 50,000 mm Range | 0.1 mm Resolution | IP65 Rated | by SICK
The Laser Distance Sensor DL50-P2228 offers a measuring range from 200 mm to 50,000 mm, making it perfect for industrial automation and measurement tasks. With a high resolution of 0.1 mm and an impressive measurement accuracy of ± 3 mm, this sensor is designed for quality control and process monitoring. Its robust IP65-rated housing ensures durability in challenging environments, while the visible red laser light source guarantees safety and precision.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 200 mm to 50,000 mm on diamond grade reflective tape
- Resolution: 0.1 mm
- Repeatability: ≥ 0.25 mm
- Measurement accuracy: ± 3 mm
- Response time: 10 ms to 160 ms adjustable
- Output time: 2.5 ms
- Light source: Visible red laser, laser class 1 (IEC 60825-1:2014)
- Typical light spot size at 10 m: 15 mm x 15 mm
- Supply voltage: DC 10 V to 30 V
- Power consumption: ≤ 2.1 W
- Enclosure rating: IP65
- Protection class: III
- Connection type: Male M12, 8-pin connector
- Display: LC display with 2 LEDs
- Operating temperature: -30 °C to +65 °C (up to +140 °C with cooling plates)
- Storage temperature: -40 °C to +75 °C
- Max relative humidity: ≤ 95% non-condensing
- Vibration and shock resistance compliant with EN 60068 standards
- Dimensions (H x L x W): 63mm x 58mm x 36mm
- Weight: 0.2 kg
Key Features
- Measuring range from 200 mm to 50,000 mm on diamond grade reflective tape
- High resolution of 0.1 mm and repeatability ≥ 0.25 mm
- Measurement accuracy of ± 3 mm
- Fast response time adjustable between 10 ms and 160 ms
- Visible red laser light source with laser class 1 safety
- Multifunctional input and output with adjustable resolution
- Robust metal zinc diecast housing with IP65 rating
- Wide operating temperature range from -30 °C to +65 °C (up to +140 °C with cooling plates)
- Interfaces include SSI and PNP digital outputs
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation and measurement
- Distance measurement on reflective targets
- Quality control and process monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long laser service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with power consumption ≤ 2.1 W
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DL50-P2228 Laser Distance Sensor is available for immediate purchase, ideal for industrial measurement and automation applications.
