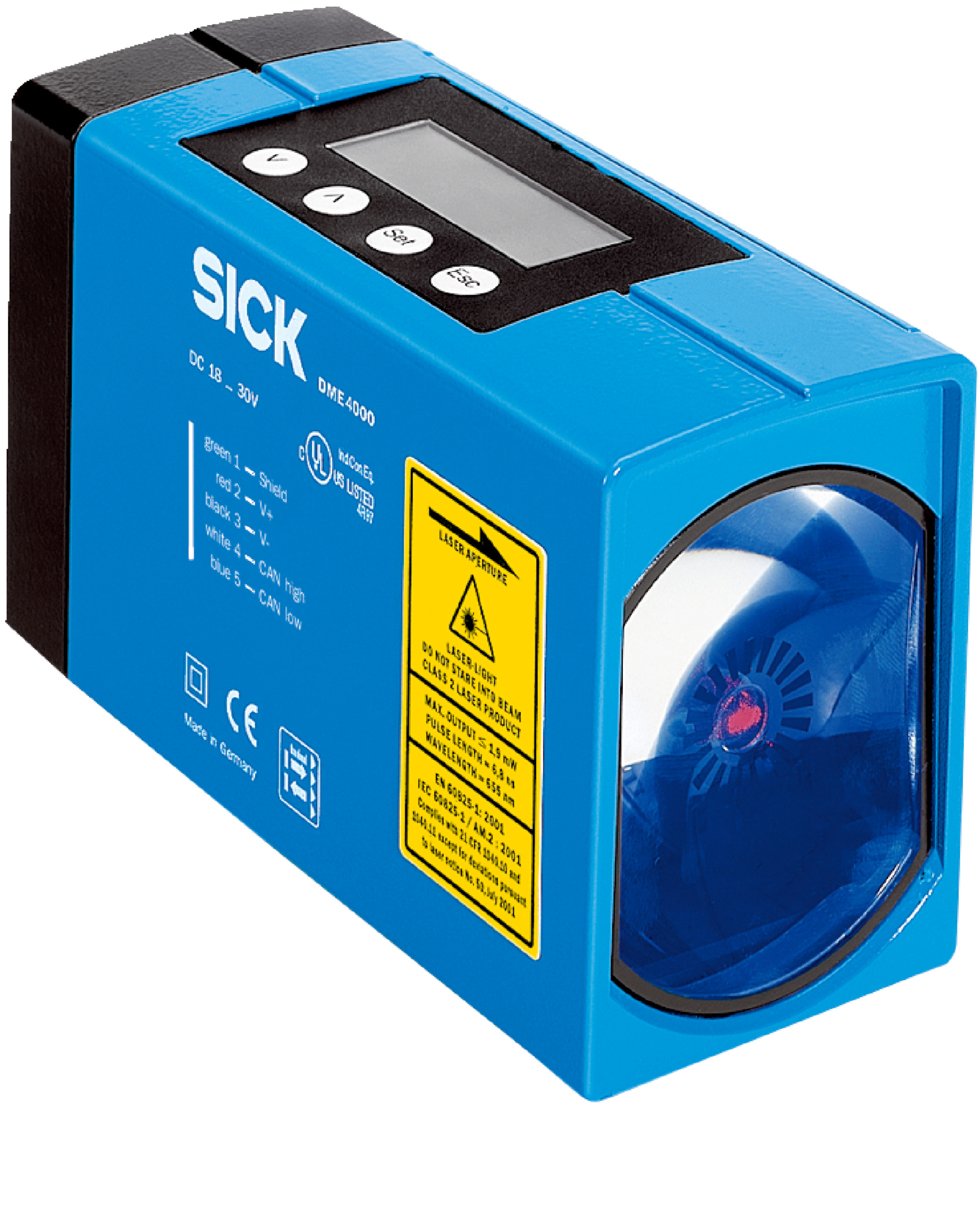

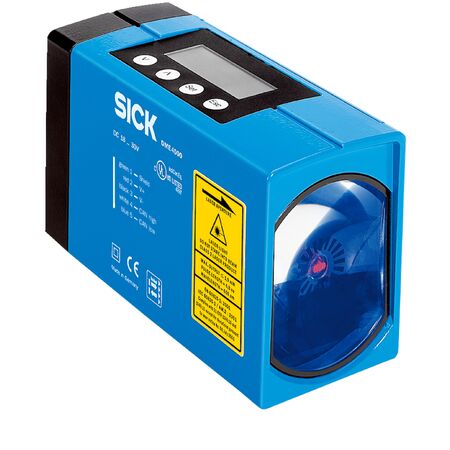

Laser Distance Sensor DME4000-111 | 0.15m to 50m Range | IP65 Rated | by SICK
The Laser Distance Sensor DME4000-111 offers a measuring range from 0.15 m to 50 m, making it ideal for industrial automation and measurement tasks. With high resolution from 0.05 mm to 5 mm and a fast response time of 6 ms, this sensor ensures precise distance measurements. Its robust IP65 rated enclosure provides dust and water protection, making it perfect for challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Laser Distance Sensor DME4000-111 | 0.15m to 50m Range | IP65 Rated | by SICK
Brand: SICK
SKU: 1029789
Alternatively Known As: Laser Distance Sensor, Laser Rangefinder, Industrial Distance Sensor, SICK DME4000
Technical Specifications
- Measuring range: 0.15 m to 50 m on diamond grade reflective tape
- Resolution: 0.05 mm to 5 mm
- Repeatability: ≤ 1 mm
- Measurement accuracy: ± 3 mm
- Response time: 6 ms
- Output time: 1 ms
- Light source: Visible red laser, class 2
- Typical light spot size: 130 mm at 70 m, 270 mm at 150 m, 360 mm at 220 m
- Max movement speed: 10 m/s
- Supply voltage: DC 18 V to 30 V
- Current consumption: < 250 mA at 24 V DC
- Enclosure rating: IP65
- Protection class: II
- Operating temperature: -10 °C to +55 °C (up to +75 °C with cooling case)
- Electromagnetic compatibility: EN 61000-6-2, EN 55011 Class B
- Dimensions (H x L x W): 85mm x 166mm x 61mm
- Weight: 1.65 kg
Key Features
- Measuring range from 0.15 m to 50 m on diamond grade reflective tape
- High resolution from 0.05 mm to 5 mm
- Repeatability of ≤ 1 mm
- Measurement accuracy of ± 3 mm
- Fast response time of 6 ms and output time of 1 ms
- Visible red laser light source, laser class 2 compliant with IEC 60825-1:2014
- Two digital push-pull outputs (PNP/NPN) with max output current ≤ 100 mA
- Multifunctional input available
- Supply voltage DC 18 V to 30 V with current consumption < 250 mA
- IP65 rated enclosure for dust and water protection
- Robust metal zinc diecast housing with glass window
- Operating temperature range -10 °C to +55 °C (up to +75 °C with cooling case)
- Electromagnetic compatibility compliant with EN 61000-6-2 and EN 55011 Class B
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment, electrical connection, and compliance with safety standards.
Applications
- Industrial automation and measurement
- Material handling and logistics
- Quality control and inspection
- Positioning and distance measurement in manufacturing
Standards & Compliance
- AS/NZS 61000 – Electromagnetic compatibility standards (aligned with EN 61000 series)
Environmental Benefits
- Non-contact measurement reduces wear and tear on equipment
- Energy-efficient laser technology minimizes power consumption
- Durable IP65 housing extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK DME4000-111 Laser Distance Sensor is available for immediate purchase, ideal for industrial measurement and automation applications.
