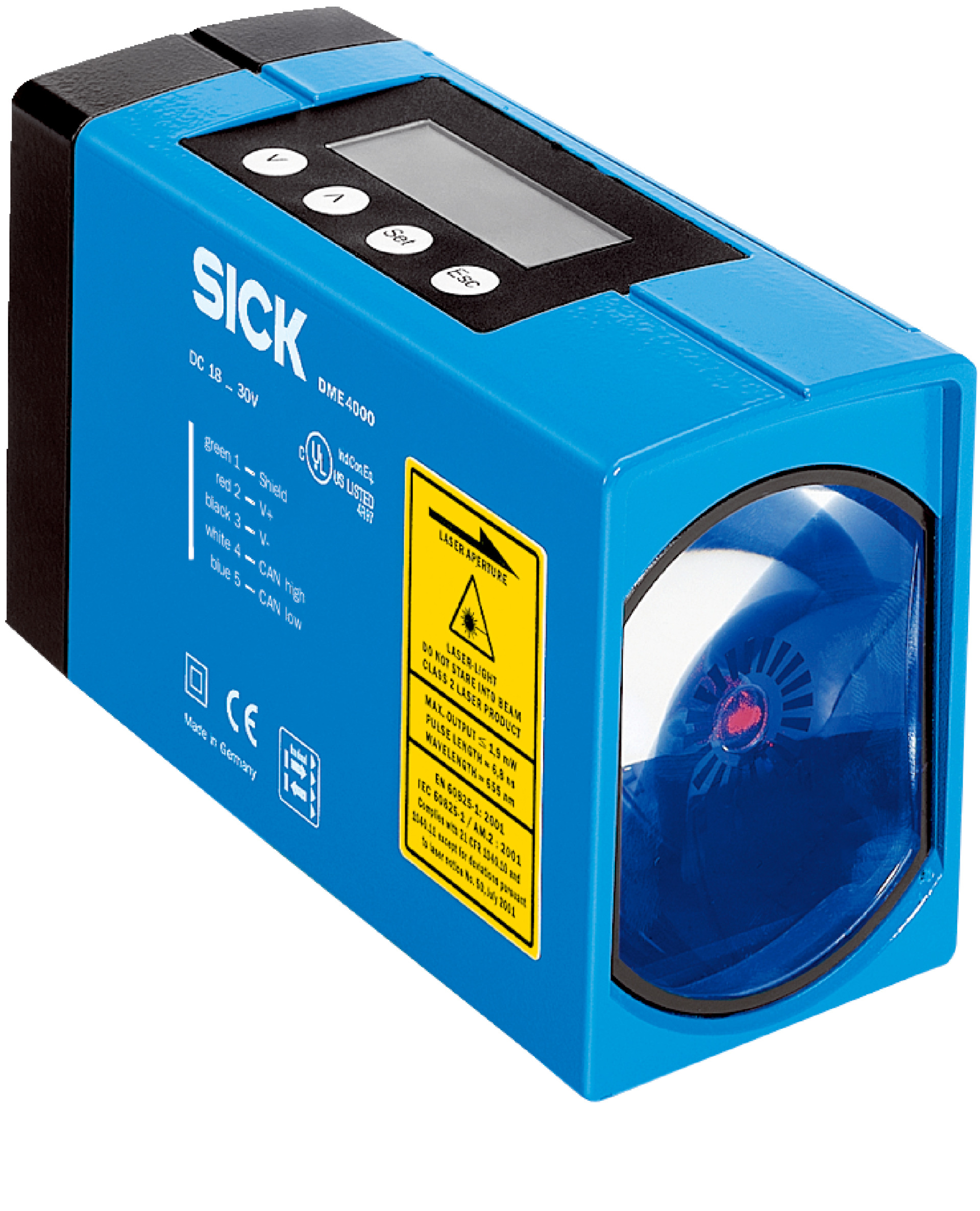

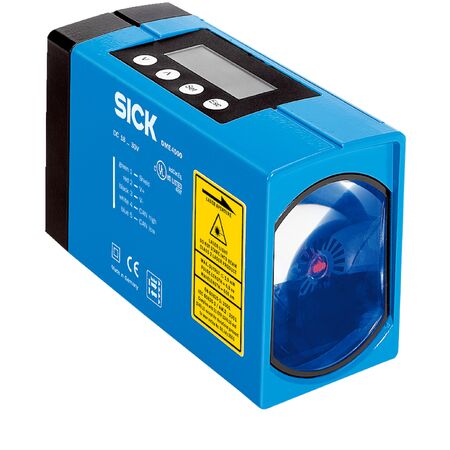

Laser Distance Sensor DME4000-127 | 0.15m to 50m Range | IP65 Rated | by SICK
The Laser Distance Sensor DME4000-127 offers a measuring range from 0.15 m to 50 m, making it ideal for industrial automation and measurement applications. With high resolution from 0.25 mm to 4 mm and a fast response time of 6 ms, this sensor ensures precise measurements. Its IP65 rated enclosure provides protection against dust and water, making it suitable for various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0.15 m to 50 m on diamond grade reflective tape
- Resolution: 0.25 mm to 4 mm
- Repeatability: 1 mm
- Measurement accuracy: ±3 mm
- Response time: 6 ms
- Output time: 2 ms
- Light source: Visible red laser, class 2
- Typical light spot size: 130 mm at 70 m, 270 mm at 150 m, 360 mm at 220 m
- Max movement speed: 10 m/s
- Supply voltage: DC 18 V to 30 V
- Current consumption: < 1000 mA at 24 V DC
- Enclosure rating: IP65
- Protection class: II
- Operating temperature: -40 °C to +55 °C (with heating up to +75 °C)
- Storage temperature: -25 °C to +75 °C
- EMC: EN 61000-6-2, EN 55011 Class B
- Dimensions (H x L x W): 85mm x 166mm x 61mm
- Weight: 1.65 kg
Key Features
- Measuring range from 0.15 m to 50 m on diamond grade reflective tape
- High resolution from 0.25 mm to 4 mm
- Repeatability of 1 mm
- Measurement accuracy of ±3 mm
- Fast response time of 6 ms and output time of 2 ms
- Visible red laser light source, laser class 2 compliant with IEC 60825-1:2014
- IP65 rated enclosure for protection against dust and water
- Metal zinc diecast housing with glass window
- Digital push-pull outputs (PNP/NPN) with max output current ≤ 100 mA
- Operating temperature range from -40 °C to +55 °C (with heating up to +75 °C)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation and measurement
- Material handling and logistics
- Quality control and inspection
- Robotics and machine safety
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal housing extends product lifespan reducing waste
- Low power consumption with efficient electronics
- Complies with RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DME4000-127 Laser Distance Sensor is available for immediate purchase, ideal for industrial measurement and automation applications.
