Laser Distance Sensor DME4000-211S06 | 0.15m to 130m Range | IP65 Rated | by SICK
The Laser Distance Sensor DME4000-211S06 offers a measuring range from 0.15 m to 130 m, making it ideal for industrial automation and precise distance measurement. With high repeatability of ≤ 2 mm and a fast response time of 6 ms, this sensor is perfect for applications in material handling, quality control, and robotics. Its durable IP65 rated housing ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

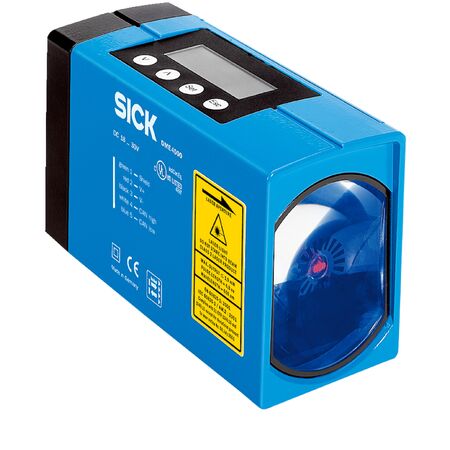

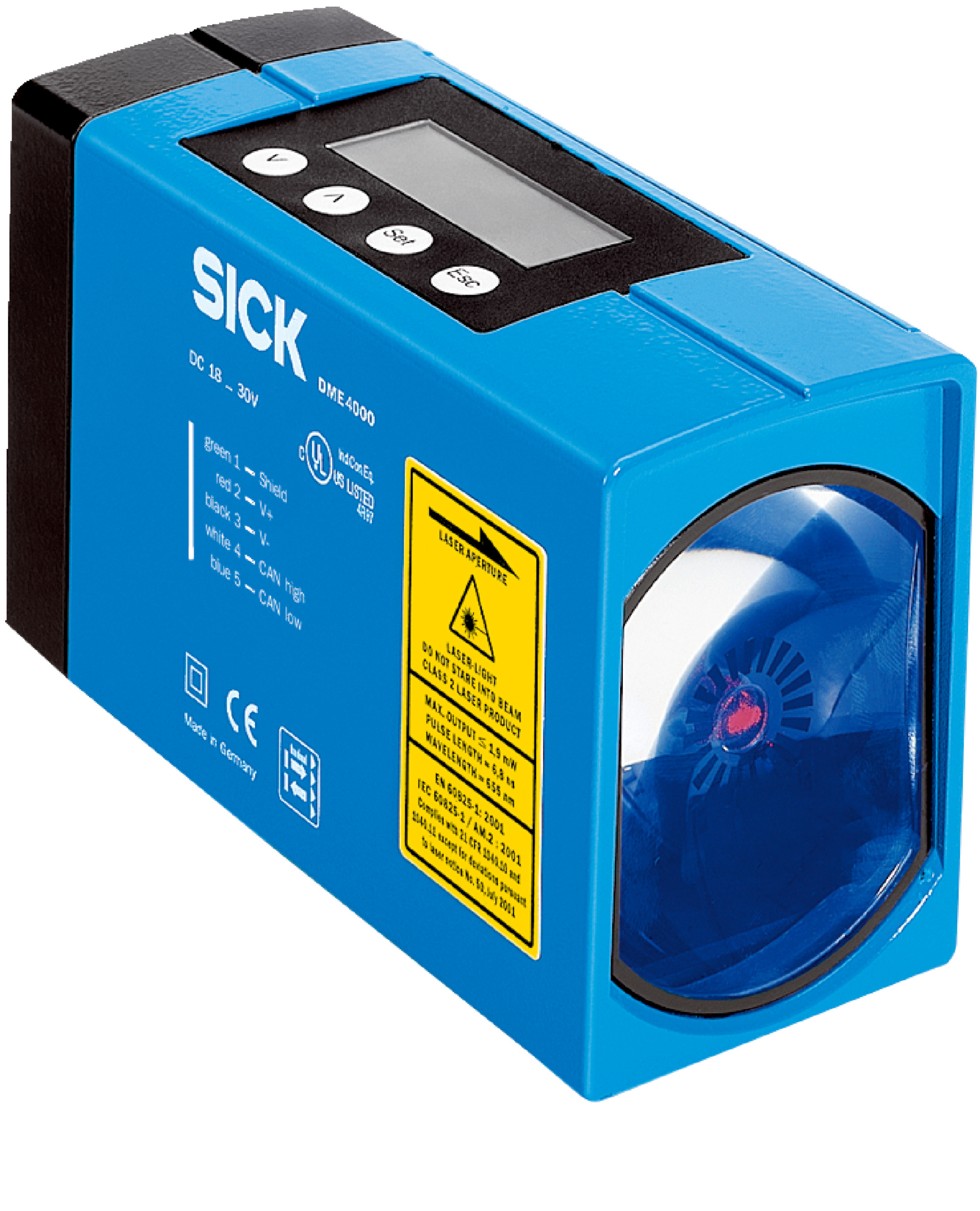

Product Name/Title: Laser Distance Sensor DME4000-211S06 | 0.15m to 130m Range | IP65 Rated | by SICK
Brand: SICK
SKU: 1045160
Alternatively Known As: Laser Distance Sensor, Laser Rangefinder, Industrial Distance Sensor, SICK DME4000 Laser Sensor
Technical Specifications
- Measuring range: 0.15 m to 130 m on diamond grade reflective tape
- Repeatability: ≤ 2 mm
- Measurement accuracy: ± 5 mm
- Response time: 6 ms
- Output time: 1 ms
- Light source: Visible red laser, class 2
- Typical light spot size: 130 mm at 70 m
- Max movement speed: 10 m/s
- Interfaces: 2 digital push-pull outputs (PNP/NPN), 1 multifunctional input
- Supply voltage: DC 18 V to 30 V
- Current consumption: < 1,000 mA at 24 V DC
- Enclosure rating: IP65
- Housing material: Zinc diecast metal
- Operating temperature: -10 °C to +55 °C (up to +75 °C with cooling case)
- Connection type: Male M16, 8-pin connector
- Dimensions (H x L x W): 85mm x 166mm x 61mm
- Weight: 1.65 kg
Key Features
- Measuring range from 0.15 m to 130 m on diamond grade reflective tape
- High repeatability of ≤ 2 mm
- Measurement accuracy of ± 5 mm
- Fast response time of 6 ms and output time of 1 ms
- Visible red laser light source, laser class 2 compliant with IEC 60825-1:2014
- IP65 rated enclosure for protection against dust and water
- Metal zinc diecast housing with glass window
- Digital outputs: 2 push-pull PNP/NPN with max output current ≤ 100 mA
- Supply voltage DC 18 V to 30 V with current consumption under 1 A
- Operating temperature range -10 °C to +55 °C (up to +75 °C with cooling case)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical connections to ensure compliance with safety standards and optimal sensor performance.
Applications
- Industrial automation for precise distance measurement
- Material handling and logistics for position detection
- Quality control and inspection systems
- Robotics and machine safety systems
Standards & Compliance
- Complies with AS/NZS 61000 series for electromagnetic compatibility
- Laser safety compliant with IEC 60825-1:2014 standards
Environmental Benefits
- Non-contact measurement reduces wear and tear on equipment
- Energy-efficient laser technology minimizes power consumption
- Durable IP65 rated housing extends product lifespan reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DME4000-211S06 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation, robotics, and quality control applications.
