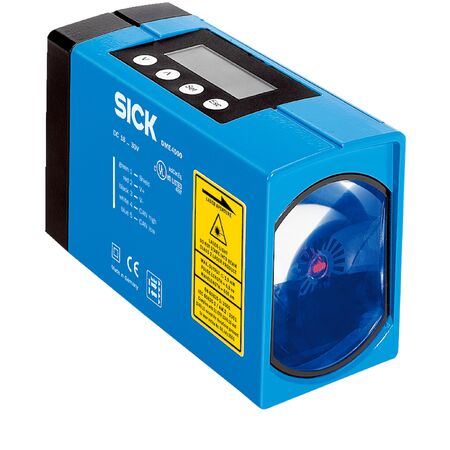

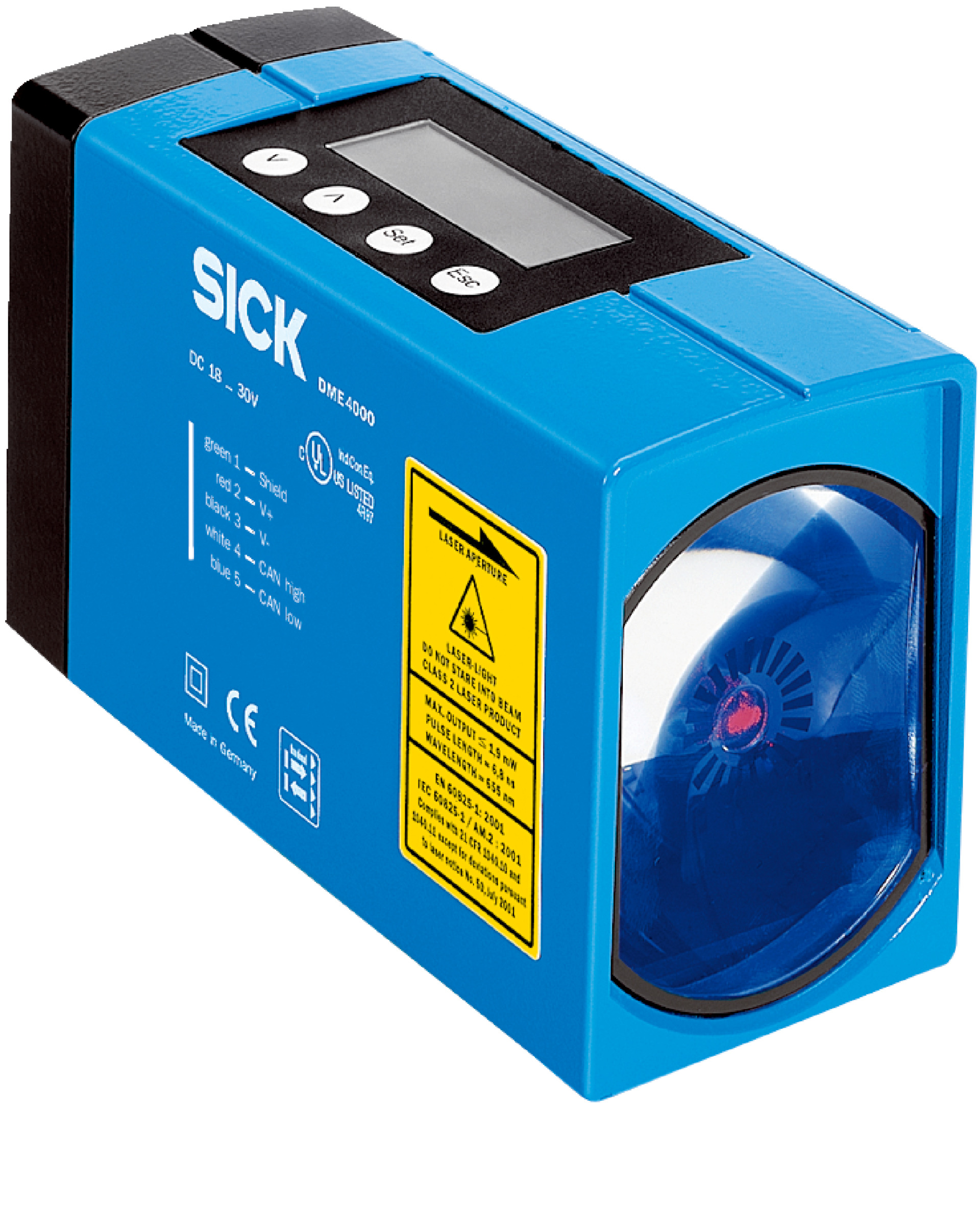

Laser Distance Sensor DME4000-213 | 0.15m to 130m Range | IP65 Rated | by SICK
The Laser Distance Sensor DME4000-213 offers a measuring range from 0.15 m to 130 m on diamond grade reflective tape, with high resolution from 0.05 mm to 5 mm. Ideal for industrial automation and control, this sensor features a fast response time of 6 ms and an IP65 rated enclosure for robust protection, making it perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Laser Distance Sensor DME4000-213 | 0.15m to 130m Range | IP65 Rated | by SICK
Brand: SICK
SKU: 1029798
Alternatively Known As: Laser Distance Sensor, Laser Rangefinder, Industrial Distance Sensor, Reflective Laser Sensor
Technical Specifications
- Measuring range: 0.15 m to 130 m on diamond grade reflective tape
- Resolution: 0.05 mm to 5 mm
- Repeatability: 2 mm
- Measurement accuracy: ±5 mm
- Response time: 6 ms
- Output time: 2 ms
- Light source: Visible red laser, class 2
- Typical light spot size: 130 mm at 70 m, 270 mm at 150 m, 360 mm at 220 m
- Max movement speed: 10 m/s
- Supply voltage: DC 18 V to 30 V
- Current consumption: <250 mA at 24 V DC
- Enclosure rating: IP65
- Protection class: II
- Connection type: Male connector, M16, 8-pin
- Dimensions (H x L x W): 85mm x 166mm x 61mm
- Weight: 1.65 kg
Key Features
- Measuring range from 0.15 m to 130 m on diamond grade reflective tape
- High resolution from 0.05 mm to 5 mm
- Repeatability of 2 mm
- Measurement accuracy of ±5 mm
- Fast response time of 6 ms and output time of 2 ms
- Visible red laser light source, laser class 2 compliant with IEC 60825-1:2014
- IP65 rated enclosure for robust protection
- Metal zinc diecast housing with glass window
- Digital outputs: 2 push-pull (PNP/NPN) with max 100 mA current
- Supply voltage DC 18 V to 30 V with low current consumption (<250 mA at 24 V DC)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation and control
- Material handling and logistics
- Robotics and machine safety
- Distance measurement in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DME4000-213 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
