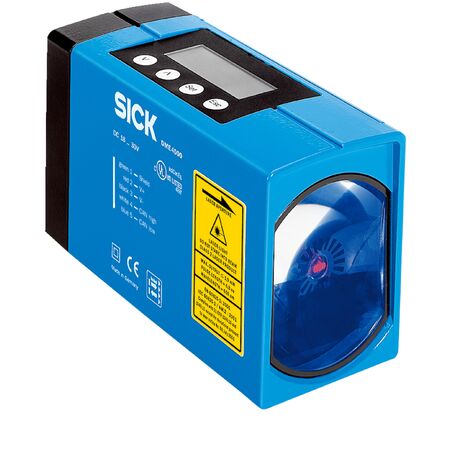

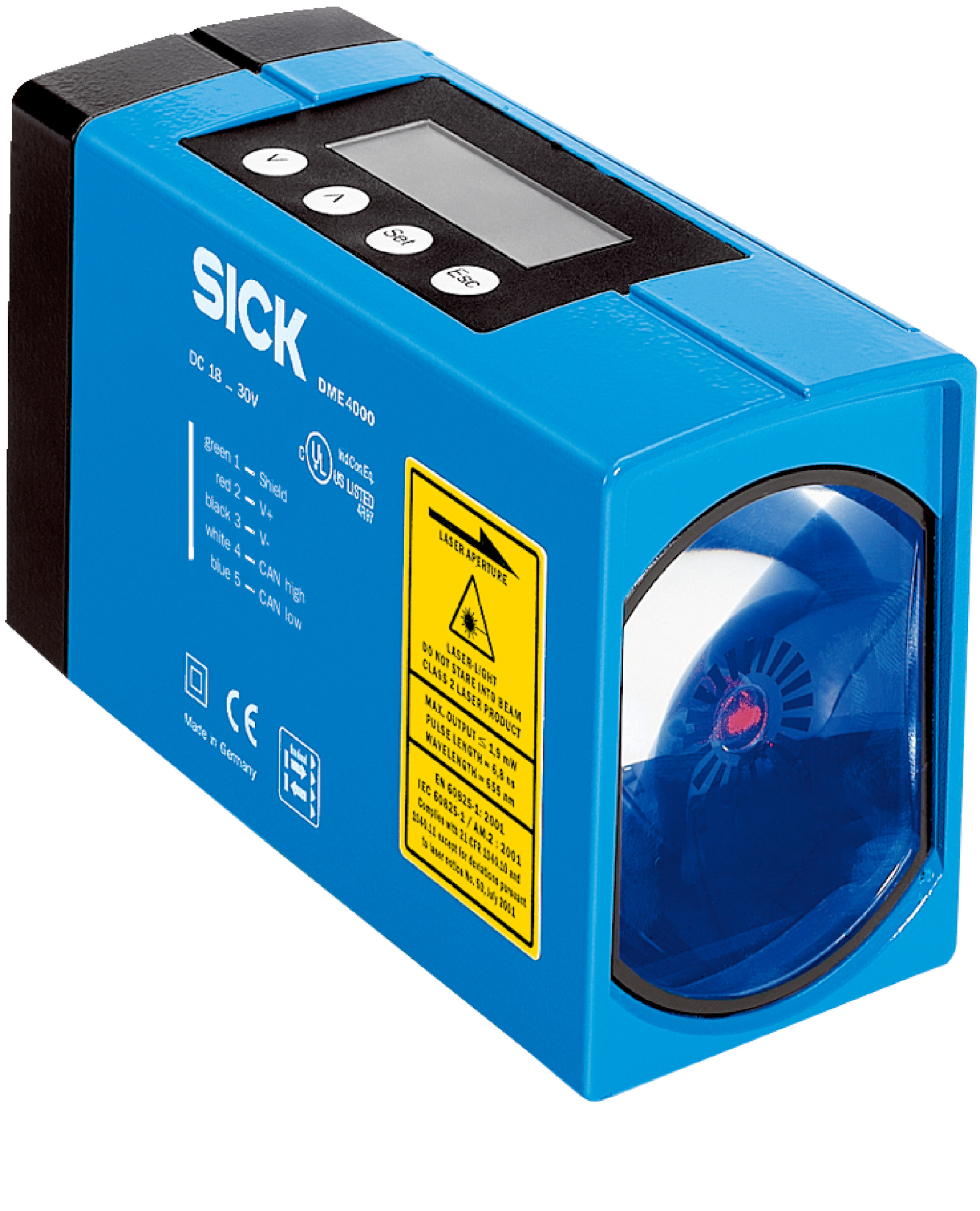

Laser Distance Sensor DME4000-222 | 0.15m to 130m Range | IP65 Rated | by SICK
The Laser Distance Sensor DME4000-222 offers a measuring range from 0.15 m to 130 m, making it ideal for industrial automation and precision measurement applications. With high resolution from 0.05 mm to 5 mm and a fast response time of 6 ms, this sensor ensures accurate distance measurements in various environments. Its robust IP65 rated enclosure and durable metal housing provide reliable performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0.15 m to 130 m on diamond grade reflective tape
- Resolution: 0.05 mm to 5 mm
- Repeatability: 2 mm
- Measurement accuracy: ±5 mm
- Response time: 6 ms
- Output time: 2 ms
- Light source: Visible red laser, class 2
- Typical light spot size: 130 mm at 70 m, 270 mm at 150 m, 360 mm at 220 m
- Max movement speed: 10 m/s
- Supply voltage: DC 18 V to 30 V
- Current consumption: < 1000 mA at 24 V DC
- Enclosure rating: IP65
- Protection class: II
- Connection: Male connector, 2 x M12 5-pin B-coded, 1 x M16 8-pin B-coded
- Operating temperature: -40 °C to +55 °C (with heating up to +75 °C)
- Storage temperature: -25 °C to +75 °C
- EMC: EN 61000-6-2, EN 55011 Class B
- Dimensions (H x L x W): 85mm x 166mm x 61mm
- Weight: 1.65 kg
Key Features
- Measuring range from 0.15 m to 130 m on diamond grade reflective tape
- High resolution from 0.05 mm to 5 mm
- Repeatability of 2 mm
- Measurement accuracy of ±5 mm
- Fast response time of 6 ms and output time of 2 ms
- Visible red laser light source, laser class 2 compliant with IEC 60825-1:2014
- IP65 rated enclosure for robust protection
- Metal zinc diecast housing with glass window
- Digital outputs: 2 push-pull PNP/NPN with max 100 mA current
- Supports PROFIBUS DP interface
- Operating temperature range from -40 °C to +55 °C (with heating up to +75 °C)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation and process control
- Distance measurement in manufacturing
- Positioning and monitoring in logistics
- Quality control and inspection systems
Standards & Compliance
- Complies with AS/NZS 61000 series for electromagnetic compatibility
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal housing extends product lifespan reducing waste
- Low power consumption with efficient electronics
- High accuracy reduces material waste in industrial processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DME4000-222 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
