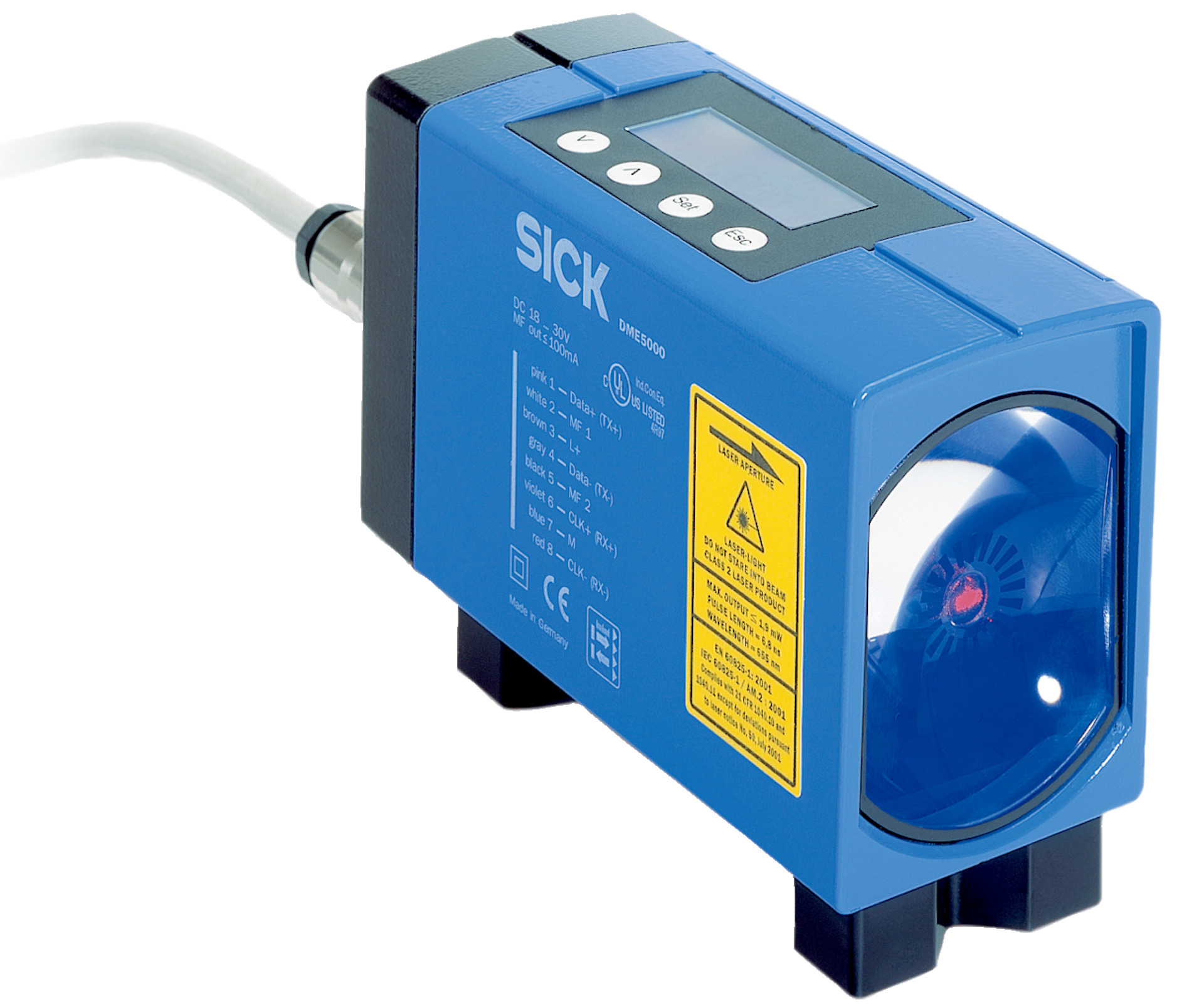

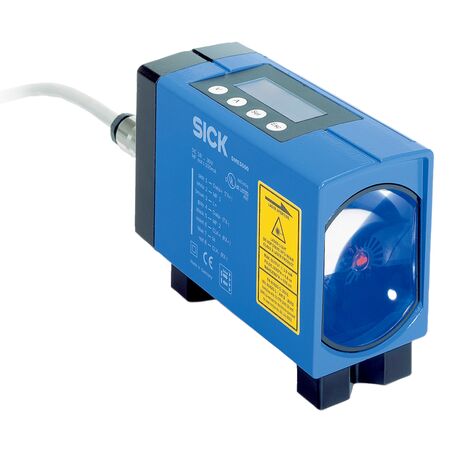

Laser Distance Sensor DME5000-315 | 0.15m to 300m Range | High Resolution 0.05mm | IP65 Rated | by SICK
The DME5000-315 Laser Distance Sensor is designed for precise distance measurement in industrial automation, offering a measuring range from 0.15 m to 300 m with high resolution of 0.05 mm. With a fast response time of 6 ms and an IP65 rated enclosure, it’s perfect for applications in material handling, quality control, and robotics, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Laser Distance Sensor DME5000-315 | 0.15m to 300m Range | High Resolution 0.05mm | IP65 Rated | by SICK
Brand: SICK
SKU: 1026003
Alternatively Known As: Laser Distance Sensor, Laser Rangefinder, Industrial Distance Sensor, SICK DME5000
Technical Specifications
- Dimensions (H x L x W): 101mm x 176mm x 61mm
- Weight: 1.65 kg
Key Features
- Measuring range from 0.15 m to 300 m on diamond grade reflective tape
- High resolution from 0.05 mm to 5 mm
- Repeatability of 2 mm
- Measurement accuracy of ±5 mm
- Fast response time of 6 ms and output time of 2 ms
- Visible red laser light source, laser class 2 compliant with IEC 60825-1:2014
- IP65 rated enclosure for protection against dust and water
- Metal zinc diecast housing with glass window
- Digital outputs: 2 push-pull (PNP/NPN) with max output current ≤ 100 mA
- Supply voltage DC 18 V to 30 V with current consumption under 250 mA
- Operating temperature range -10 °C to +55 °C (up to +75 °C with cooling case)
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for precise distance measurement
- Material handling and logistics for object detection
- Quality control and inspection systems
- Robotics and machine safety applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact measurement reduces wear and tear, extending device lifespan
- Energy-efficient laser technology minimizes power consumption
- Robust IP65 housing ensures durability and reduces waste from replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DME5000-315 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
