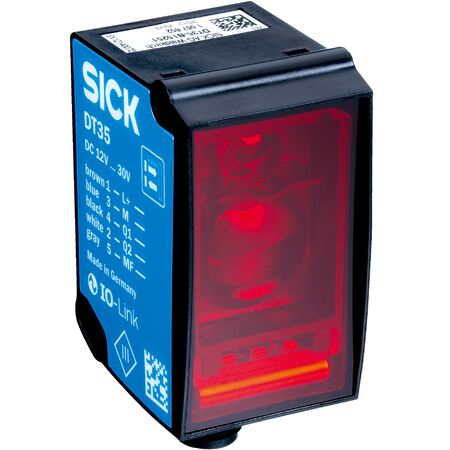

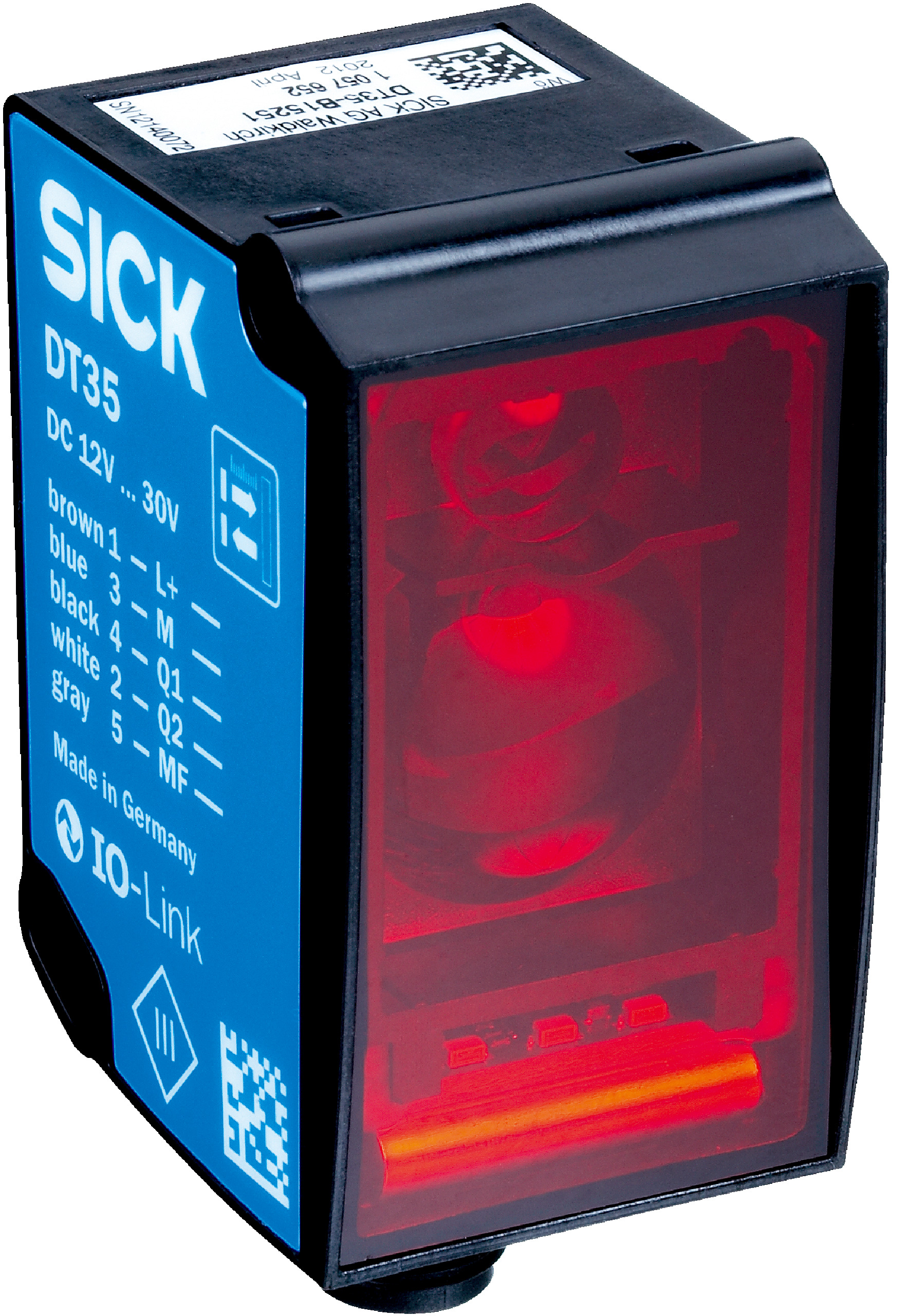

Laser Distance Sensor DR35-B15522 | 200 mm to 35,000 mm Range | 0.1 mm Resolution | IP65 & IP67 Rated | by SICK
The Laser Distance Sensor DR35-B15522 offers a measuring range from 200 mm to 35,000 mm, with a high resolution of 0.1 mm and repeatability of ≥ 0.5 mm. Ideal for industrial automation, this sensor is designed for precise distance measurement and object detection, ensuring accuracy and reliability in manufacturing processes. With a robust IP65 and IP67 rated enclosure, it withstands harsh environments while providing fast response times and low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 200 mm to 35,000 mm on diamond grade reflective tape
- Resolution: 0.1 mm
- Repeatability: ≥ 0.5 mm
- Measurement accuracy: Typically ± 15 mm
- Response time: 2.5 ms to 96.5 ms selectable
- Switching frequency: 6 Hz to 333 Hz selectable
- Output time: 1 ms to 32 ms selectable
- Light source: Red laser, visible light
- Laser class: 1 (IEC 60825-1:2014)
- Supply voltage: DC 12 V to 30 V
- Power consumption: ≤ 1.7 W
- Enclosure rating: IP65, IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -40 °C to +75 °C
- Connection type: Male connector
- Protection class: III
- Dimensions (H x L x W): 58.67mm x 42.7mm x 32mm
- Weight: 0.1 kg
Key Features
- Measuring range from 200 mm to 35,000 mm on diamond grade reflective tape
- High resolution of 0.1 mm and repeatability ≥ 0.5 mm
- Fast response time options from 2.5 ms to 96.5 ms
- Visible red laser light source with 15 mm x 15 mm spot size at 2 m
- Laser class 1 with 100,000 hours average laser service life
- Multiple switching frequencies and output time settings
- Multifunctional input for laser off, external teach, and reset
- Robust IP65 and IP67 rated enclosure for harsh environments
- Wide operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and compliance with safety standards.
Applications
- Industrial automation for precise distance measurement
- Object detection and positioning in manufacturing
- Quality control and process monitoring
Standards & Compliance
- Complies with AS/NZS 61000 series for Electromagnetic Compatibility (EMC)
Environmental Benefits
- Low power consumption of ≤ 1.7 W reduces energy usage
- Long laser service life of 100,000 hours minimizes waste and replacement frequency
- Robust design reduces environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK DR35-B15522 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
