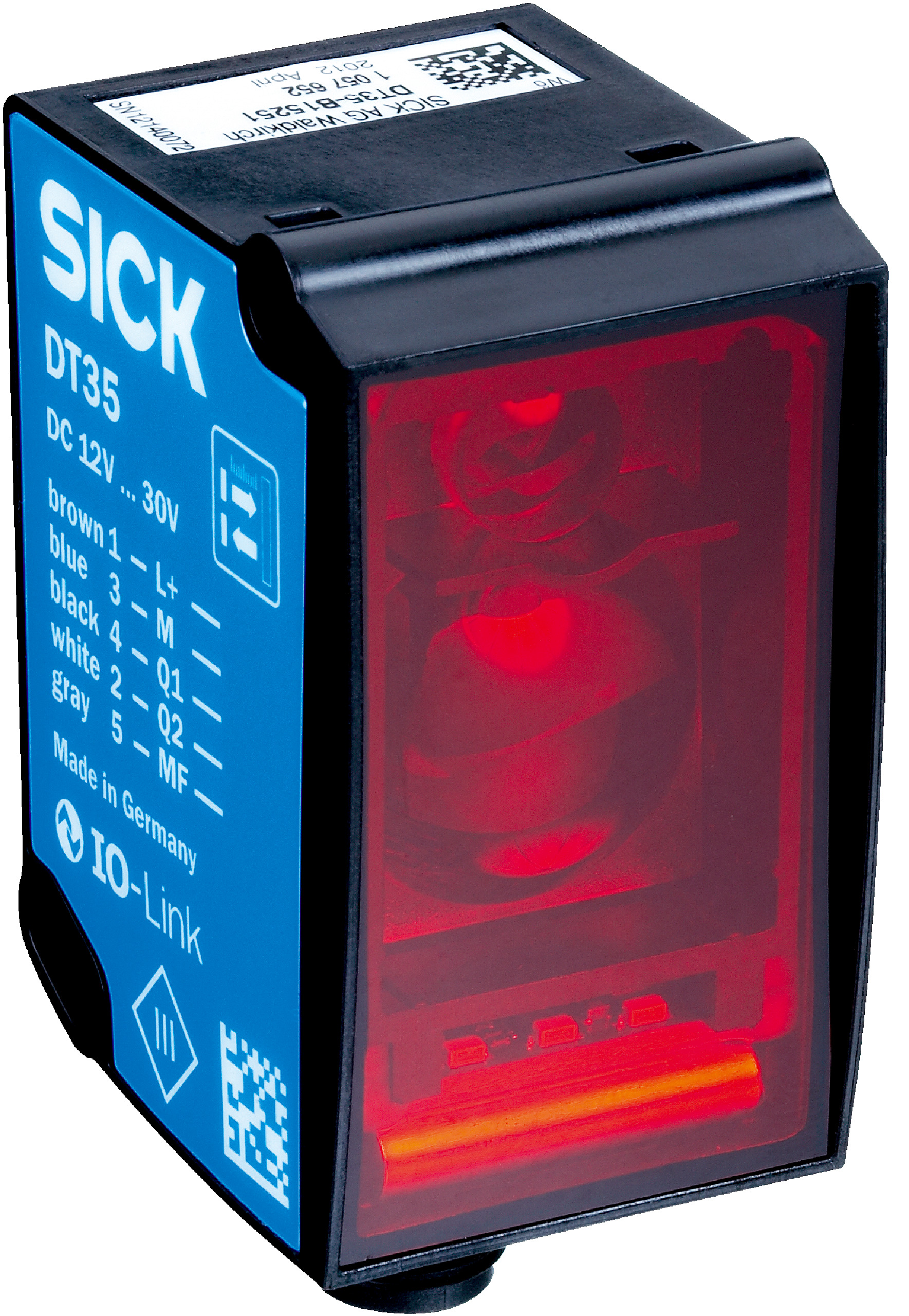

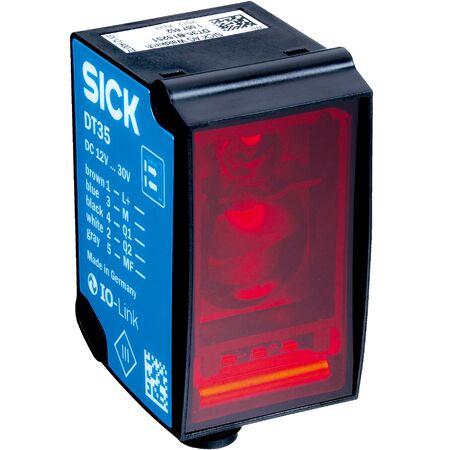

Laser Distance Sensor DS35-B15521 | 50 mm to 12,000 mm Range | 0.1 mm Resolution | IP65 & IP67 Rated | by SICK
The Laser Distance Sensor DS35-B15521 offers a measuring range from 50 mm to 12,000 mm, making it perfect for industrial automation and precise distance measurement. With a high resolution of 0.1 mm and robust IP65/IP67 enclosure, it ensures reliable performance in harsh environments. Ideal for object detection, quality control, and process monitoring, this sensor is designed for professionals seeking accuracy and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 50 mm to 12,000 mm (90% remission factor)
- Resolution: 0.1 mm
- Repeatability: ≥ 0.5 mm
- Measurement accuracy: Typically ±10 mm
- Response time: 4.5 ms to 192.5 ms selectable
- Switching frequency: Up to 166 Hz
- Output time: 2 ms to 64 ms selectable
- Light source: Red laser, visible light
- Laser class: 1 (IEC 60825-1:2014 compliant)
- Supply voltage: DC 12 V to 30 V
- Power consumption: ≤ 1.7 W
- Enclosure rating: IP65, IP67
- Connection: Male connector
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -40 °C to +75 °C
- Protection class: III
- Dimensions (H x L x W): 58.67mm x 42.7mm x 32mm
- Weight: 0.1 kg
Key Features
- Measuring range from 50 mm to 12,000 mm depending on remission factor
- High resolution of 0.1 mm and repeatability ≥ 0.5 mm
- Fast response time adjustable from 4.5 ms to 192.5 ms
- Visible red laser light source with laser class 1 safety
- Multifunctional input and adaptable digital outputs
- Robust IP65 and IP67 rated enclosure for harsh environments
- Wide operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and compliance with safety standards.
Applications
- Industrial automation for precise distance measurement
- Object detection and positioning in manufacturing
- Quality control and process monitoring
Standards & Compliance
- Complies with AS/NZS 61000 series for Electromagnetic Compatibility (EMC)
Environmental Benefits
- Low power consumption of ≤ 1.7 W reduces energy usage
- Long laser service life of 100,000 hours minimizes waste
- Robust design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DS35-B15521 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precise measurement applications.
