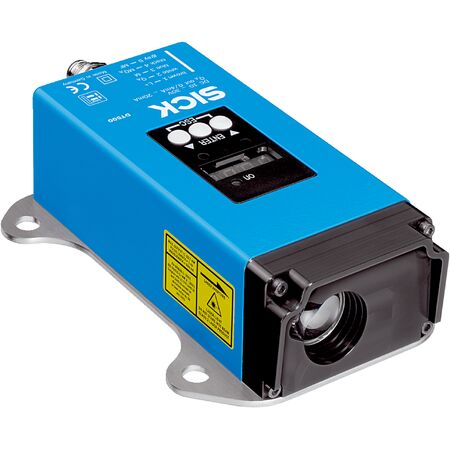

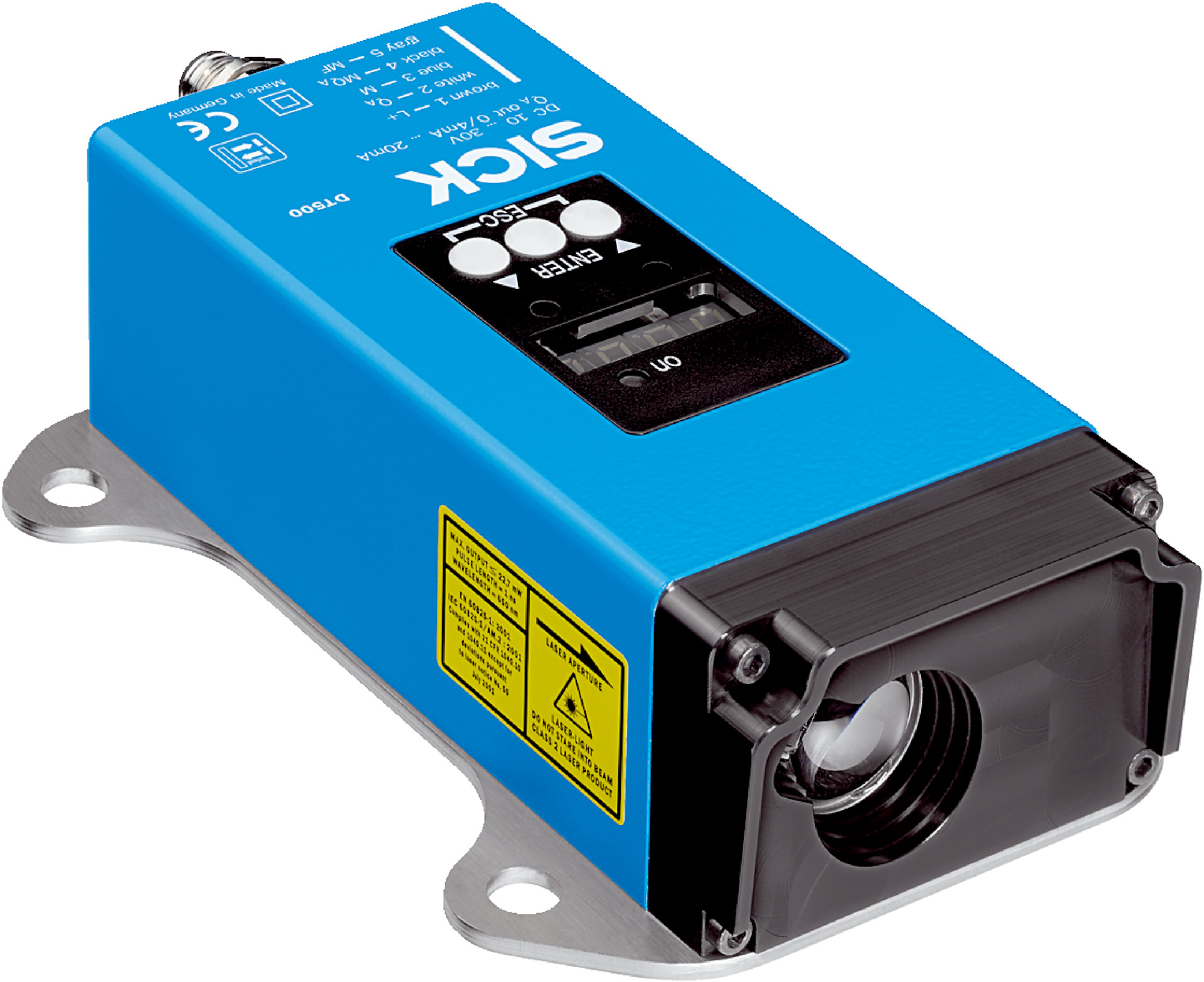

Laser Distance Sensor DS500-P511 | 0.2m to 70m Range | IP65 Rated | by SICK
The Laser Distance Sensor DS500-P511 offers a measuring range from 0.2 m to 70 m, with high resolution and repeatability of 1 mm. Ideal for industrial automation, this sensor ensures precise distance measurement and object detection, making it perfect for quality control and process monitoring in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Laser Distance Sensor DS500-P511 | 0.2m to 70m Range | IP65 Rated | by SICK
Brand: SICK
SKU: 1040479
Alternatively Known As: Laser Distance Sensor, Laser Rangefinder, Industrial Distance Sensor, DS500 Series Sensor
Technical Specifications
- Measuring range: 0.2 m to 70 m (90% remission), 0.2 m to 30 m (6% remission)
- Resolution: ≤ 1 mm
- Repeatability: 1 mm
- Measurement accuracy: ± 3 mm
- Response time: 150 ms to 6,000 ms
- Output time: 150 ms to 6,000 ms
- Light source: Visible red laser light, laser class 2
- Typical light spot size: 10 mm at 7 m, 45 mm at 30 m, 100 mm at 70 m
- Digital outputs: 2 PNP outputs, max current ≤ 100 mA
- Supply voltage: DC 10 V to 30 V, reverse polarity protected
- Power consumption: Typically 3 W
- Enclosure rating: IP65
- Housing material: Aluminum die cast
- Connection type: Male M12, 5-pin connector
- Operating temperature: –10 °C to +45 °C (up to +75 °C with cooling case)
- Storage temperature: –25 °C to +75 °C
- EMC compliance: EN 61000-6-2 / EN 61000-6-3
- Dimensions (H x L x W): 50mm x 153mm x 69mm
- Weight: 1 kg
Key Features
- Measuring range from 0.2 m to 70 m with 90% remission factor
- High resolution of ≤ 1 mm and repeatability of 1 mm
- Measurement accuracy of ± 3 mm
- Response and output time adjustable from 150 ms to 6,000 ms
- Visible red laser light source, laser class 2 compliant with IEC 60825-1:2014
- IP65 rated enclosure for protection against dust and water
- Metal aluminum die cast housing with glass window
- Two PNP digital outputs with maximum output current ≤ 100 mA
- Operating temperature range from –10 °C to +45 °C (up to +75 °C with cooling case)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for precise distance measurement
- Object detection and positioning in manufacturing
- Quality control and process monitoring
Standards & Compliance
- AS/NZS 61000 – Electromagnetic compatibility (EMC) standards
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and duration.
Available Now
The SICK DS500-P511 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precise measurement applications.
