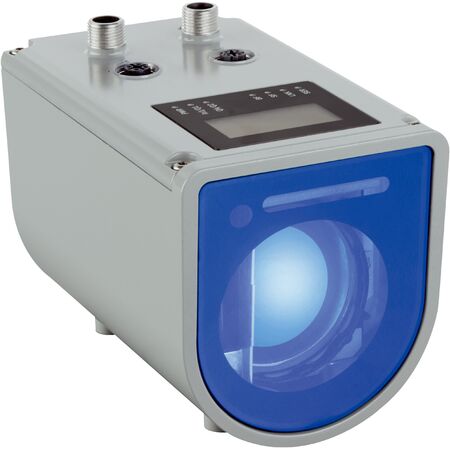

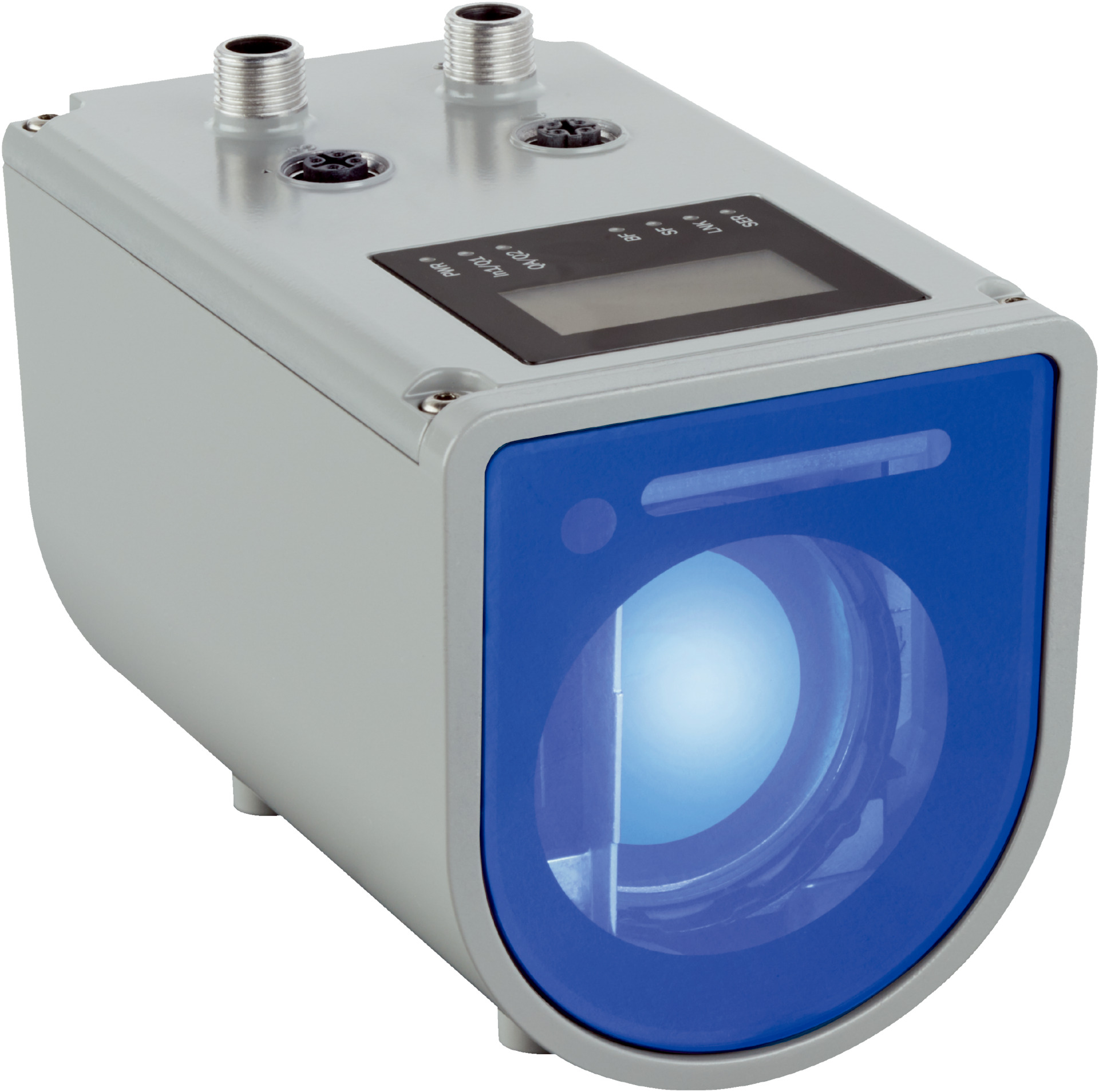

Laser Distance Sensor DT1000-S11102 | HDDM+ Technology | 0.2m to 460m Range | IP65 & IP67 Rated | by SICK
The Laser Distance Sensor DT1000-S11102 utilizes advanced HDDM+ technology for precise measurements ranging from 0.2m to 460m, making it ideal for industrial applications. With a resolution adjustable from 0.001 mm to 100 mm and an IP65/IP67 enclosure rating, this sensor is built for durability and accuracy in challenging environments. Perfect for manufacturing and automation, it ensures reliable performance even in harsh conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: HDDM+
- Measuring range: 0.2 m to 155 m (6% remission), 0.2 m to 460 m (90% remission)
- Resolution: 0.001 mm to 100 mm, adjustable
- Repeatability: ≥ 1 mm
- Measurement accuracy: typically ± 15 mm
- Response time: 3 ms to 384 ms
- Measurement cycle time options: 1 ms, 4 ms, 16 ms, 64 ms, 128 ms
- Output time: ≥ 1 ms
- Light source: Infrared laser 905 nm, visible red laser 650 nm
- Laser class: 1 (IEC 60825-1:2014)
- Light spot size varies with distance from 5 mm x 20 mm at 1 m to 570 mm x 140 mm at 200 m
- Filters: Rain, snow, fog, Kalman, moving average distance and speed
- Max object temperature: +1400 °C
- Max movement speed: 128 m/s
- Interfaces: Ethernet TCP/IP, PROFIBUS DP, Serial RS-422, SSI
- Supply voltage: DC 18 V to 30 V, reverse polarity protected
- Power consumption: ≤ 22 W (heating off), ≤ 35 W (heating on)
- Enclosure rating: IP65 and IP67
- Protection class: III (EN 61140)
- Operating temperature: -40 °C to +55 °C (up to +95 °C with cooling case)
- Storage temperature: -40 °C to +75 °C
- Humidity: ≤ 95% non-condensing
- Shock resistance: 30 g / 6 ms
- Dimensions (H x L x W): 104mm x 141mm x 84mm
- Weight: 1 kg
Key Features
- Measurement principle: HDDM+
- Measuring range: 0.2 m to 155 m (6% remission), up to 460 m (90% remission)
- Resolution adjustable from 0.001 mm to 100 mm
- Repeatability ≥ 1 mm
- Measurement accuracy typically ± 15 mm
- Response time from 3 ms to 384 ms
- Infrared measuring laser (905 nm) and visible red alignment laser (650 nm)
- Laser class 1 compliant with IEC 60825-1:2014
- Multiple filters including rain, snow, fog, Kalman filter, and moving average
- Max object temperature up to +1400 °C
- Average laser service life of 100,000 hours
- Max movement speed 128 m/s
- Graphical resistive touch display with status LEDs
- Enclosure rating IP65 and IP67
- Shock resistance up to 30 g / 6 ms
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial distance measurement
- Natural object detection
- High precision measurement in manufacturing and automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long laser service life reduces waste and replacement frequency
- Energy-efficient operation with low power consumption
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK DT1000-S11102 Laser Distance Sensor is available for immediate purchase, ideal for industrial and manufacturing applications requiring precise distance measurement.
