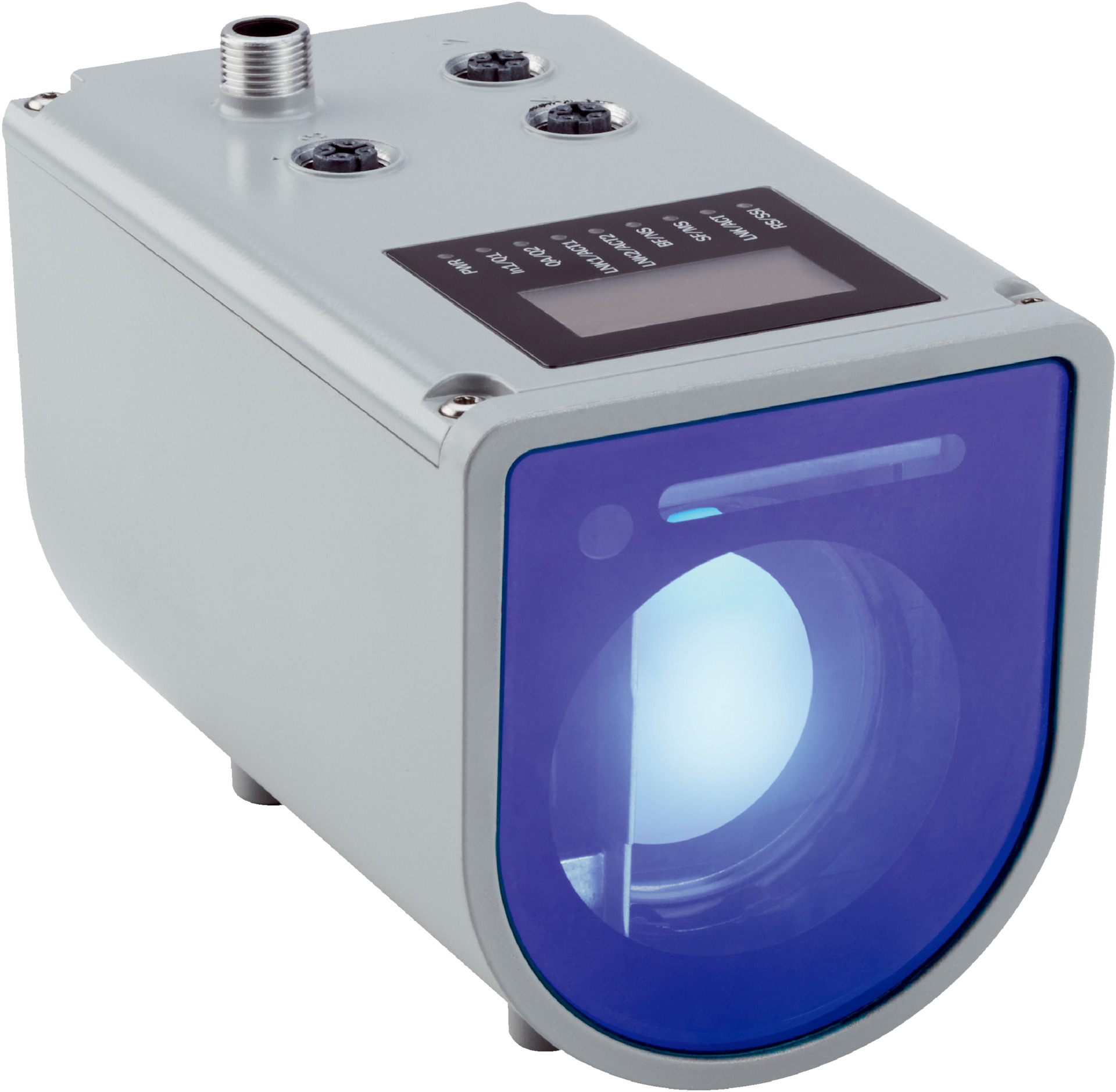

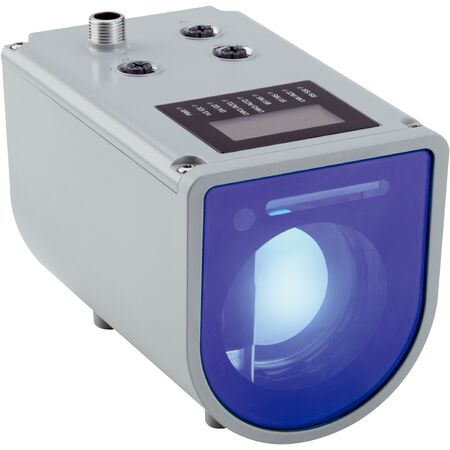

Laser Distance Sensor DT1000-S11110 | HDDM+ Technology | 0.2m to 155m Range | IP65/IP67 Rated | by SICK
The Laser Distance Sensor DT1000-S11110 utilizes advanced HDDM+ technology for precise measurements ranging from 0.2m to 155m, and up to 460m with high remission. Ideal for industrial automation and high precision applications, this sensor features a robust IP65/IP67 rated housing, ensuring durability in challenging environments. With a graphical resistive touch display and multiple interface options, it’s designed for seamless integration into your systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 104mm x 141mm x 84mm
- Weight: 1 kg
Key Features
- Measurement principle: HDDM+
- Measuring range: 0.2 m to 155 m (6% remission), up to 460 m (90% remission)
- Resolution adjustable from 0.001 mm to 100 mm
- Repeatability ≥ 1 mm
- Measurement accuracy typically ± 15 mm
- Response time from 3 ms to 384 ms
- Infrared measuring laser (905 nm) and visible red alignment laser (650 nm)
- Laser class 1 compliant with IEC 60825-1:2014
- Multiple filters including rain, snow, fog, Kalman filter
- Max object temperature up to +1400 °C
- Average laser service life 100,000 hours
- Max movement speed 128 m/s
- Graphical resistive touch display with status LEDs
- Enclosure rating IP65 and IP67
- Metal housing with glass window
- Multiple interface options including Ethernet TCP/IP, RS-422, SSI, EtherNet/IP™
- Digital and analog outputs with switchable functions
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial distance measurement
- Natural object detection
- High precision measurement in manufacturing and automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long laser service life reduces waste and replacement frequency
- Robust IP65/IP67 housing protects against environmental damage
- Energy efficient operation with low power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK DT1000-S11110 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
