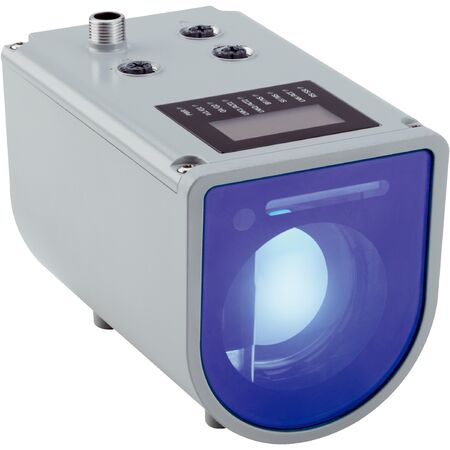

Laser Distance Sensor DT1000-S11112 | HDDM+ Technology | 0.2m to 460m Range | IP65 & IP67 Rated | by SICK
The Laser Distance Sensor DT1000-S11112 utilizes advanced HDDM+ technology for precise measurements ranging from 0.2m to 460m, making it ideal for industrial automation and process control. With a robust IP65 and IP67 enclosure rating, this sensor is built to withstand harsh environments while delivering exceptional accuracy and repeatability. Perfect for applications requiring high precision in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: HDDM+
- Measuring range: 0.2 m to 155 m (6% remission), 0.2 m to 460 m (90% remission)
- Resolution: 0.001 mm to 100 mm, adjustable
- Repeatability: ≥ 1 mm
- Measurement accuracy: Typically ± 15 mm
- Response time: 3 ms to 384 ms
- Measurement cycle time options: 1 ms, 4 ms, 16 ms, 64 ms, 128 ms
- Output time: ≥ 1 ms
- Light source: Infrared laser 905 nm, visible red laser 650 nm
- Laser class: 1 (IEC 60825-1:2014)
- Light spot size varies with distance from 5 mm x 20 mm at 1 m to 570 mm x 140 mm at 200 m
- Filters: Rain, snow, fog, moving average distance and speed, Kalman filter
- Max object temperature: +1,400 °C
- Max movement speed: 128 m/s
- Interfaces: Ethernet TCP/IP, RS-422 serial, SSI, PROFINET
- Supply voltage: DC 18 V to 30 V, reverse polarity protected
- Power consumption: ≤ 22 W (heating off), ≤ 35 W (heating on)
- Enclosure rating: IP65 and IP67
- Protection class: III (EN 61140)
- Operating temperature: -40 °C to +55 °C (up to +95 °C with cooling case)
- Storage temperature: -40 °C to +75 °C
- Weight: 1,000 g
- Housing material: Aluminum alloy (AlSi12)
- Window material: Glass
- Connection type: Round connector M12 x 1
- Dimensions (H x L x W): 104mm x 141mm x 84mm
- Weight: 1 kg
Key Features
- Measurement principle: HDDM+
- Measuring range: 0.2 m to 155 m (6% remission), up to 460 m (90% remission)
- Resolution adjustable from 0.001 mm to 100 mm
- Repeatability ≥ 1 mm
- Measurement accuracy typically ± 15 mm
- Response time from 3 ms to 384 ms
- Infrared measuring laser (905 nm) and visible red alignment laser (650 nm)
- Laser class 1 for safe operation
- Multiple filters including rain, snow, fog, and Kalman filter
- Max object temperature up to +1,400 °C
- Average laser service life of 100,000 hours
- Max movement speed 128 m/s
- Graphical resistive touch display with status LEDs
- Enclosure rating IP65 and IP67
- Shock resistance up to 30 g / 6 ms
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation and process control
- Measurement of natural objects in manufacturing
- High precision distance measurement in harsh environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long laser service life reduces waste and replacement frequency
- High accuracy reduces material waste in industrial processes
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK DT1000-S11112 Laser Distance Sensor is available for immediate purchase, ideal for industrial and manufacturing applications requiring precise distance measurement.
