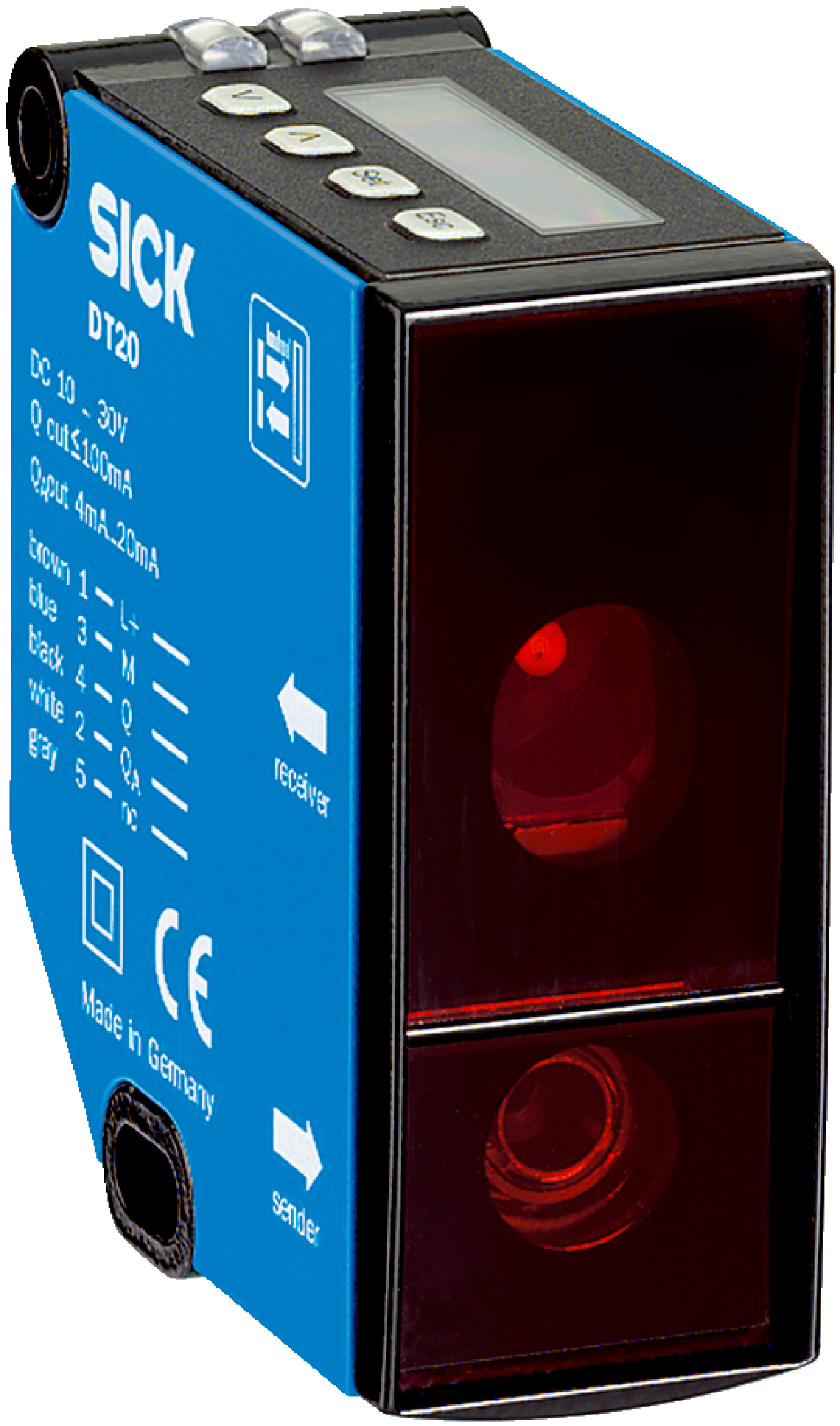

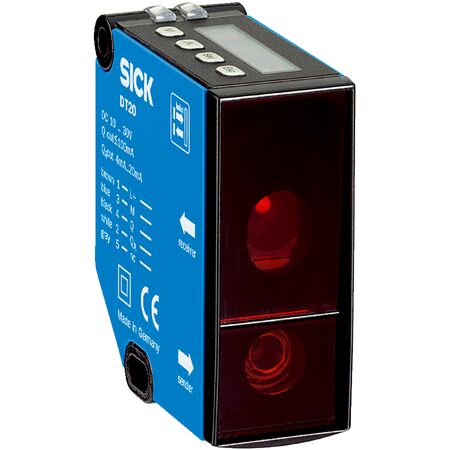

Laser Distance Sensor DT20-N224B | 100 mm to 1000 mm Range | IP65 Rated | by SICK
The Laser Distance Sensor DT20-N224B offers a measuring range from 100 mm to 1000 mm with high repeatability of ≥ 2.5 mm, making it ideal for industrial automation and precise distance measurement applications. With a fast response time of ≥ 2.5 ms and an IP65 rated enclosure, this sensor is built for durability and reliability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Laser Distance Sensor DT20-N224B | 100 mm to 1000 mm Range | IP65 Rated | by SICK
Brand: SICK
SKU: 1044216
Alternatively Known As: Laser Distance Sensor, Laser Rangefinder, Industrial Distance Sensor, SICK DT20 Sensor
Technical Specifications
- Measuring range: 100 mm to 1000 mm
- Repeatability: ≥ 2.5 mm
- Linearity: ± 6 mm
- Response time: ≥ 2.5 ms
- Light source: Visible red laser, class 2
- Typical light spot size at 1000 mm: 6 mm x 12 mm
- Digital output: 1 x NPN, max 100 mA
- Analog output: 4 mA to 20 mA, 12 bit resolution
- Supply voltage: DC 10 V to 30 V
- Power consumption: ≤ 1.8 W
- Enclosure rating: IP65
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -20 °C to +60 °C
- Housing material: Zinc diecast metal
- Window material: PMMA plastic
- Connection: Male M12, 5-pin swivel connector
- Dimensions (H x L x W): 72.4mm x 54.1mm x 24.3mm
- Weight: 0.135 kg
Key Features
- Measuring range from 100 mm to 1000 mm
- High repeatability of ≥ 2.5 mm
- Visible red laser light source, laser class 2
- Fast response time of ≥ 2.5 ms
- Multifunctional input for laser off, external teach-in, and deactivation
- IP65 rated enclosure for dust and water protection
- Metal zinc diecast housing with plastic PMMA window
- Digital and analog outputs with teach-in and invertible options
- Safety-related parameters with MTTFD of 101 years and DCavg 0%
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for distance measurement
- Object detection and positioning
- Quality control and process monitoring
- Robotics and material handling
Standards & Compliance
- AS/NZS 61010 – Safety requirements for electrical equipment for measurement, control, and laboratory use
Environmental Benefits
- Low power consumption of ≤ 1.8 W reduces energy usage
- Durable metal housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DT20-N224B Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precise distance measurement applications.
