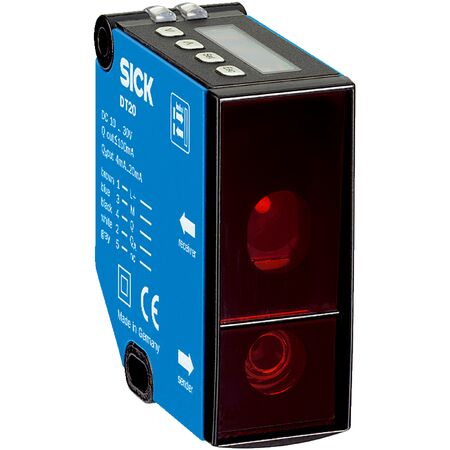

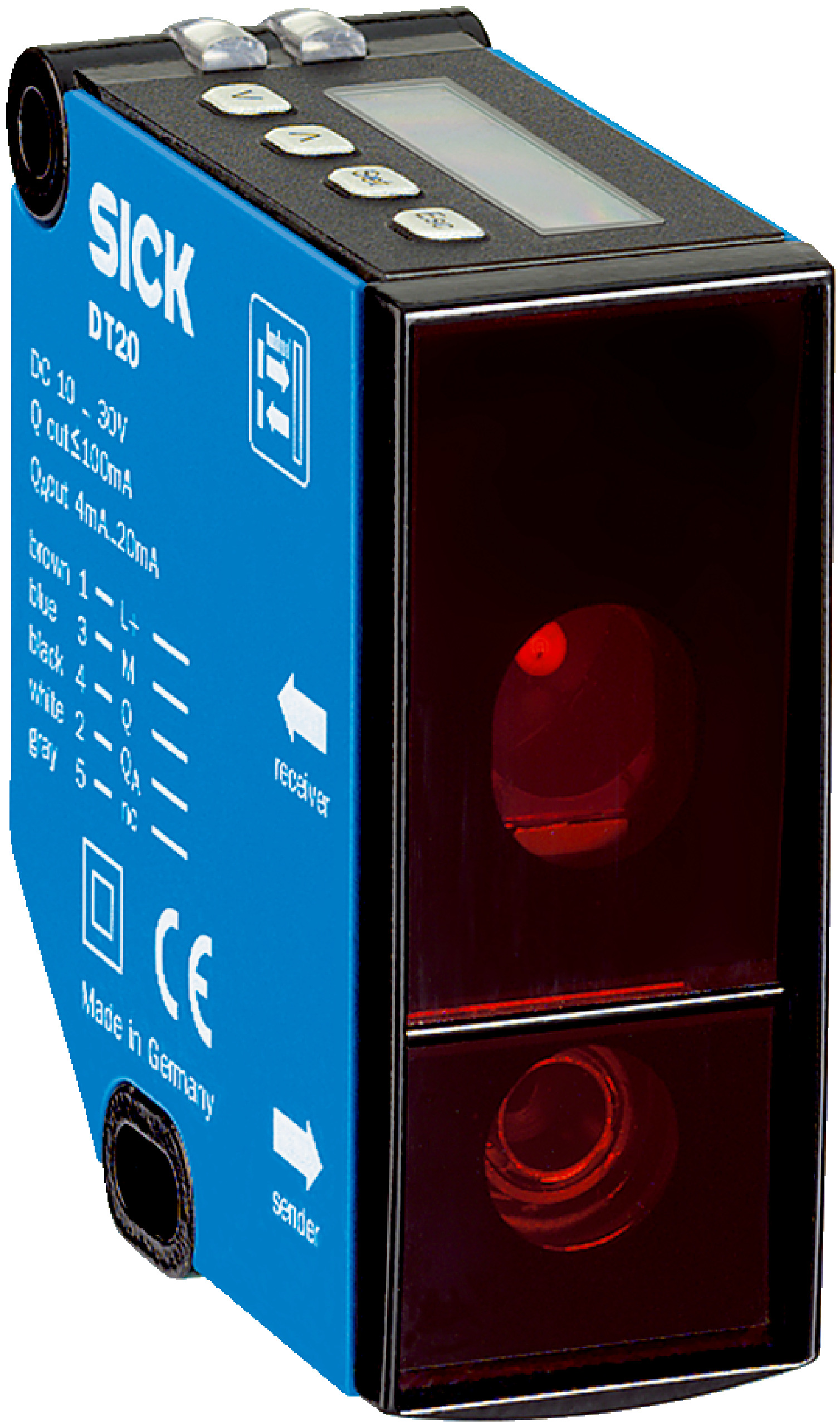

Laser Distance Sensor DT20-P214BS03 | 100 mm to 600 mm Range | IP65 Rated | by SICK
The Laser Distance Sensor DT20-P214BS03 offers a measuring range from 100 mm to 600 mm with high repeatability of ≥ 0.5 mm, making it ideal for industrial automation and precise distance measurement applications. With a fast response time of ≥ 2.5 ms and an IP65 rated enclosure, this sensor is built for durability and reliability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Laser Distance Sensor DT20-P214BS03 | 100 mm to 600 mm Range | IP65 Rated | by SICK
Brand: SICK
SKU: 1051547
Alternatively Known As: Laser Distance Sensor, Laser Range Finder, Industrial Distance Sensor, SICK DT20 Sensor
Technical Specifications
- Measuring range: 100 mm to 600 mm
- Repeatability: ≥ 0.5 mm
- Linearity: ± 2 mm
- Response time: ≥ 2.5 ms
- Output time: ≥ 2.5 ms
- Light source: Visible red laser light
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014)
- Typical light spot size at 600 mm: 3 mm x 6 mm
- Digital output: 1 PNP, max 100 mA
- Analog output: 4 mA to 20 mA, 12 bit resolution
- Supply voltage: DC 10 V to 30 V
- Power consumption: ≤ 1.8 W
- Ripple: ≤ 5 V pp
- Warm-up time: ≤ 10 min
- Indication: LC display, 2 LEDs
- Enclosure rating: IP65
- Protection class: II
- Housing material: Metal (zinc diecast)
- Window material: Plastic (PMMA)
- Connection type: Male M12, 5-pin swivel connector
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -20 °C to +60 °C
- Temperature drift: 0.25 mm/K
- Ambient light immunity: Artificial light ≤ 3,000 lx, Sunlight ≤ 10,000 lx
- Vibration resistance: EN 60068-2-6, EN 60068-2-64
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 72.4mm x 54.1mm x 24.3mm
- Weight: 0.135 kg
Key Features
- Measuring range from 100 mm to 600 mm
- High repeatability of ≥ 0.5 mm
- Linearity of ± 2 mm
- Fast response and output time of ≥ 2.5 ms
- Visible red laser light source, laser class 1
- Set moving average with fast, medium, slow options
- Multiple switching modes including distance to object
- Teach-in functions for digital and analog outputs
- Invertable digital and analog outputs
- Multifunctional input for laser off, external teach-in, or deactivation
- IP65 rated enclosure for dust and water protection
- Metal zinc diecast housing with PMMA window
- Operating temperature range from -20 °C to +55 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for distance measurement
- Object detection and positioning
- Quality control in manufacturing
- Robotics and material handling
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of ≤ 1.8 W reduces energy usage
- Durable metal housing extends product lifespan, reducing waste
- IP65 rating ensures protection against dust and water, minimizing maintenance and replacement
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DT20-P214BS03 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precise distance measurement applications.
