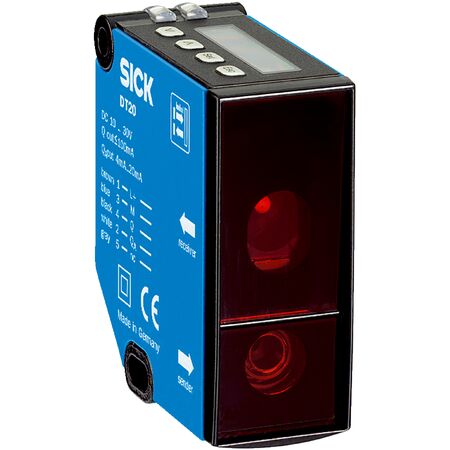

Laser Distance Sensor DT20-P224B | 100 mm to 1000 mm Range | IP65 Rated | by SICK
The Laser Distance Sensor DT20-P224B offers a measuring range from 100 mm to 1000 mm with high repeatability of ≥ 2.5 mm, making it ideal for industrial automation and precise distance measurement applications. With a fast response time of ≥ 2.5 ms and an IP65 rated enclosure, this sensor is built for durability and reliability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Laser Distance Sensor DT20-P224B | 100 mm to 1000 mm Range | IP65 Rated | by SICK
Brand: SICK
SKU: 1040405
Alternatively Known As: Laser Distance Sensor, Laser Range Sensor, Industrial Distance Sensor, SICK DT20 Sensor
Technical Specifications
- Measuring range: 100 mm to 1000 mm
- Repeatability: ≥ 2.5 mm
- Linearity: ± 6 mm
- Response time: ≥ 2.5 ms
- Light source: Red visible laser, laser class 2 (IEC 60825-1:2014)
- Typical light spot size at 1000 mm: 6 mm x 12 mm
- Digital output: 1 PNP output, max 100 mA
- Analog output: 4 mA to 20 mA current output, 12 bit resolution
- Supply voltage: DC 10 V to 30 V
- Power consumption: ≤ 1.8 W
- Enclosure rating: IP65
- Operating temperature: -20 °C to +55 °C
- Housing material: Zinc diecast metal
- Connection: Male M12, 5-pin swivel connector
- Dimensions (H x L x W): 72.4mm x 54.1mm x 24.3mm
- Weight: 0.135 kg
Key Features
- Measuring range from 100 mm to 1000 mm
- High repeatability of ≥ 2.5 mm
- Red visible laser light source, laser class 2
- Fast response time of ≥ 2.5 ms
- Multifunctional input and outputs with teach-in capabilities
- IP65 rated enclosure for dust and water protection
- Metal zinc diecast housing with plastic window
- Operating temperature range from -20 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for distance measurement
- Object detection and positioning
- Quality control and process monitoring
- Robotics and material handling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤ 1.8 W reduces energy usage
- Durable metal housing extends product life and reduces waste
- IP65 rating ensures protection against dust and water, minimizing maintenance and replacement
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DT20-P224B Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precise distance measurement applications.
