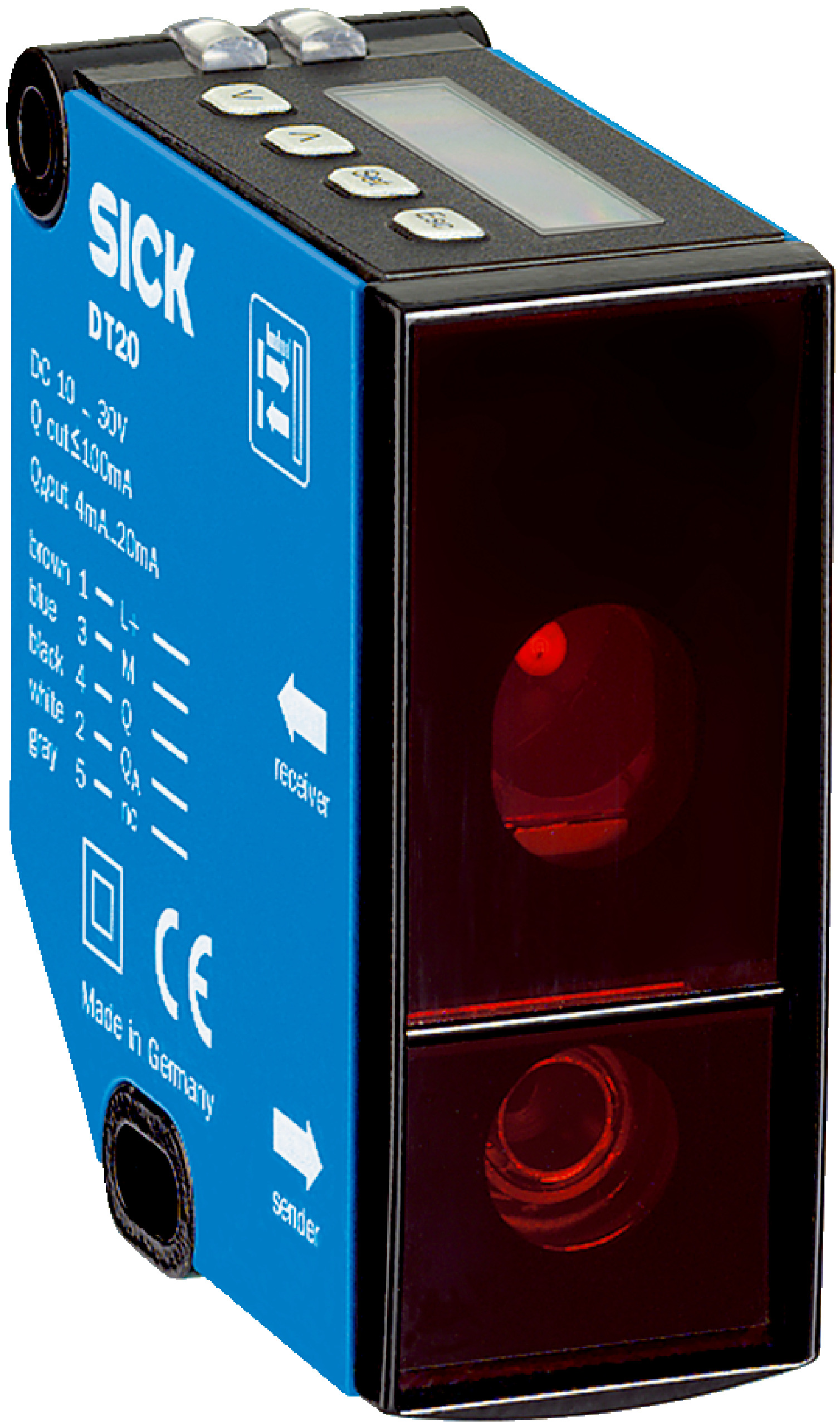

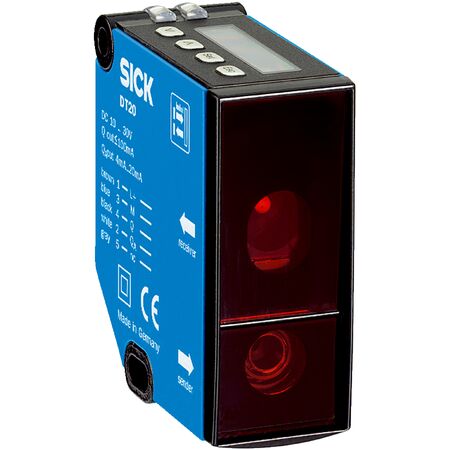

Laser Distance Sensor DT20-P244BS04 | 100 mm to 300 mm Range | High Repeatability | IP65 Rated | by SICK
The Laser Distance Sensor DT20-P244BS04 offers a measuring range from 100 mm to 300 mm with high repeatability of ≥ 0.25 mm, making it ideal for industrial automation and precision measurement applications. With a fast response time of ≥ 2.5 ms and an IP65 rated enclosure, this sensor ensures reliable performance in challenging environments, perfect for object detection, quality control, and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Laser Distance Sensor DT20-P244BS04 | 100 mm to 300 mm Range | High Repeatability | IP65 Rated | by SICK
Brand: SICK
SKU: 1052829
Alternatively Known As: Laser Distance Sensor, Laser Displacement Sensor, Optical Distance Sensor, Industrial Laser Sensor
Technical Specifications
- Measuring range: 100 mm to 300 mm
- Repeatability: ≥ 0.25 mm
- Linearity: ± 1 mm
- Response time: ≥ 2.5 ms
- Output time: ≥ 2.5 ms
- Light source: Visible red laser light, Laser class 1 (IEC 60825-1:2014)
- Typical light spot size at 300 mm: 3 mm x 6 mm
- Digital output: 1 PNP output, max current ≤ 100 mA
- Analog output: 4 mA to 20 mA current output, 12 bit resolution
- Supply voltage: DC 10 V to 30 V
- Power consumption: ≤ 1.8 W
- Ripple: ≤ 5 V pp
- Warm-up time: ≤ 10 minutes
- Indication: LC display and 2 LEDs
- Enclosure rating: IP65 (EN 60529)
- Protection class: II
- Housing material: Metal (zinc diecast)
- Window material: Plastic (PMMA)
- Connection type: Male M12, 5-pin swivel connector
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -20 °C to +60 °C
- Temperature drift: 0.25 mm/K
- Ambient light immunity: Artificial light ≤ 3,000 lx, Sunlight ≤ 10,000 lx
- Vibration resistance: EN 60068-2-6, EN 60068-2-64
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 72.4mm x 54.1mm x 24.3mm
- Weight: 0.135 kg
Key Features
- Measuring range from 100 mm to 300 mm
- High repeatability of ≥ 0.25 mm
- Linearity of ± 1 mm
- Fast response and output time of ≥ 2.5 ms
- Visible red laser light source, laser class 1
- Set moving average with fast, medium, slow options
- Multiple switching modes including distance to object
- Teach-in functionality for digital and analog outputs
- Invertable digital and analog outputs
- Multifunctional input for laser off, external teach-in, or deactivation
- Lockable user interface
- IP65 rated enclosure for dust and water protection
- Metal zinc diecast housing with plastic window
- Operating temperature range from -20 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical connections to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for distance measurement
- Object detection and positioning
- Quality control and inspection
- Robotics and material handling
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of ≤ 1.8 W reduces energy usage
- Durable metal housing extends product lifespan, reducing waste
- IP65 rating ensures protection against dust and water, minimizing maintenance and replacement
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DT20-P244BS04 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
