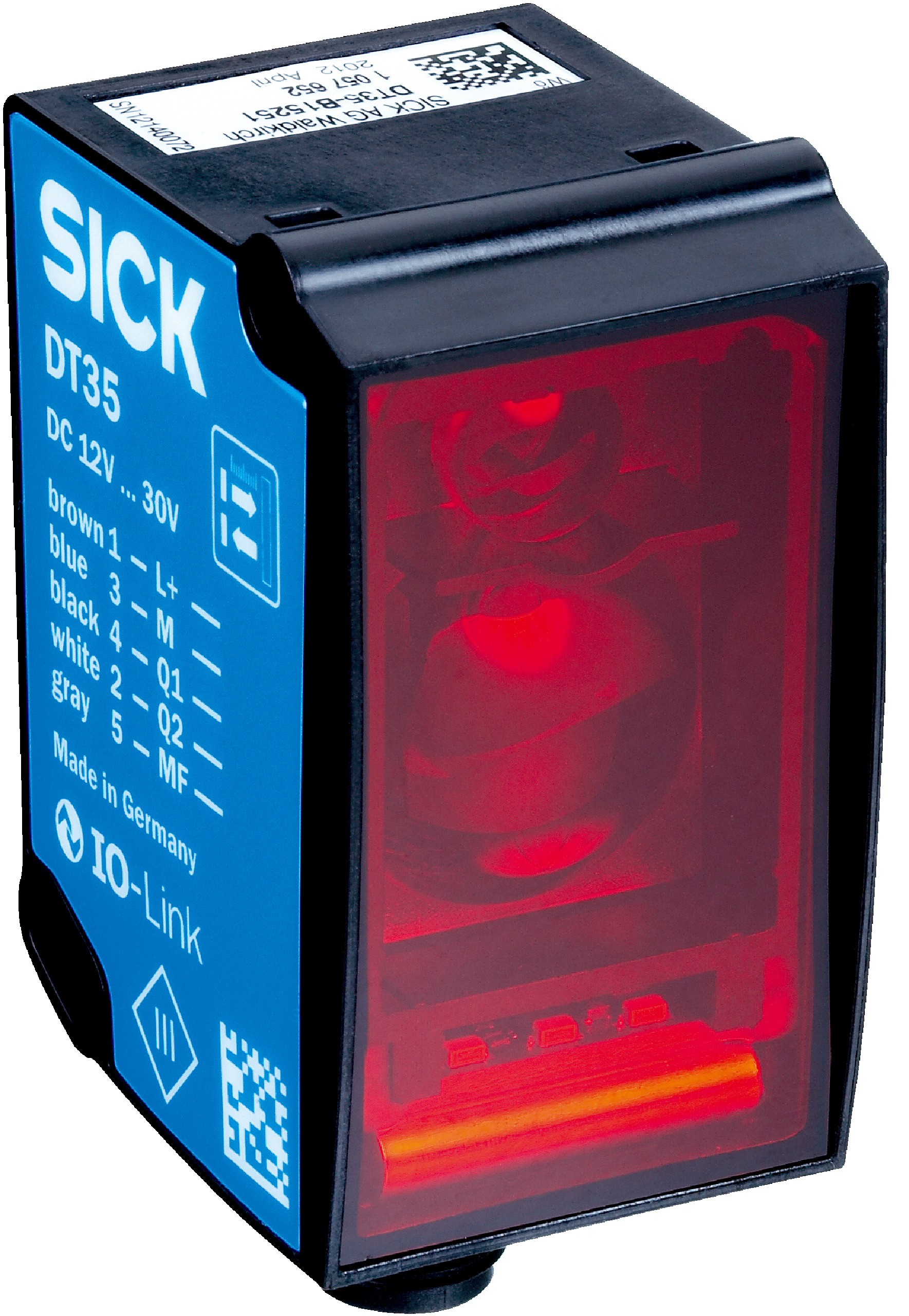

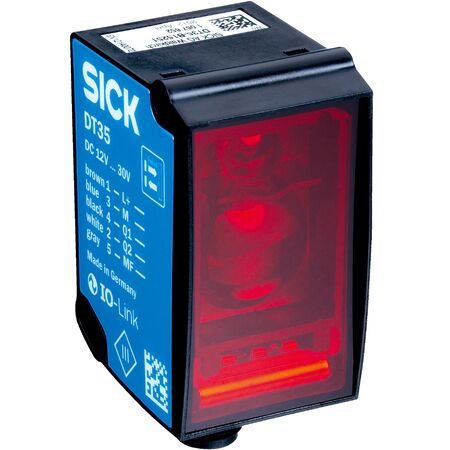

Laser Distance Sensor DT35-B15251 | 50 mm to 12,000 mm Range | 0.1 mm Resolution | IP65 & IP67 Rated | by SICK
The Laser Distance Sensor DT35-B15251 offers a measuring range from 50 mm to 12,000 mm, with a high resolution of 0.1 mm and repeatability of ≥ 0.5 mm. Ideal for industrial automation, this sensor is perfect for precise distance measurement, object detection, and quality control. With a robust IP65 and IP67 rated enclosure, it ensures reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 50 mm to 12,000 mm (90% remission factor)
- Resolution: 0.1 mm
- Repeatability: ≥ 0.5 mm
- Measurement accuracy: Typically ±10 mm
- Response time: 2.5 ms to 96.5 ms selectable
- Switching frequency: Up to 333 Hz
- Output time: 1 ms to 32 ms selectable
- Light source: Red laser, visible light
- Laser class: 2
- Supply voltage: DC 12 V to 30 V
- Power consumption: ≤ 1.7 W
- Enclosure rating: IP65, IP67
- Protection class: III
- Connection type: Male connector
- Display: LEDs
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -40 °C to +75 °C
- EMC compliance: EN 61000-6-2, EN 61000-6-3, EN 61000-6-4
- Dimensions (H x L x W): 58.67mm x 42.7mm x 32mm
- Weight: 0.1 kg
Key Features
- Measuring range from 50 mm to 12,000 mm depending on remission factor
- High resolution of 0.1 mm and repeatability ≥ 0.5 mm
- Fast response time adjustable from 2.5 ms to 96.5 ms
- Adaptable output options including current, voltage, and digital outputs
- Laser class 2 with visible red light and 100,000 hours average laser service life
- Robust IP65 and IP67 rated enclosure for harsh environments
- Multifunctional input for laser off, external teach, and reset functions
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for precise distance measurement
- Object detection and positioning in manufacturing
- Quality control and process monitoring
Standards & Compliance
- Complies with AS/NZS 61000 series for Electromagnetic Compatibility (EMC)
Environmental Benefits
- Low power consumption of ≤ 1.7 W reduces energy usage
- Long laser service life of 100,000 hours minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK DT35-B15251 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precise measurement applications.
