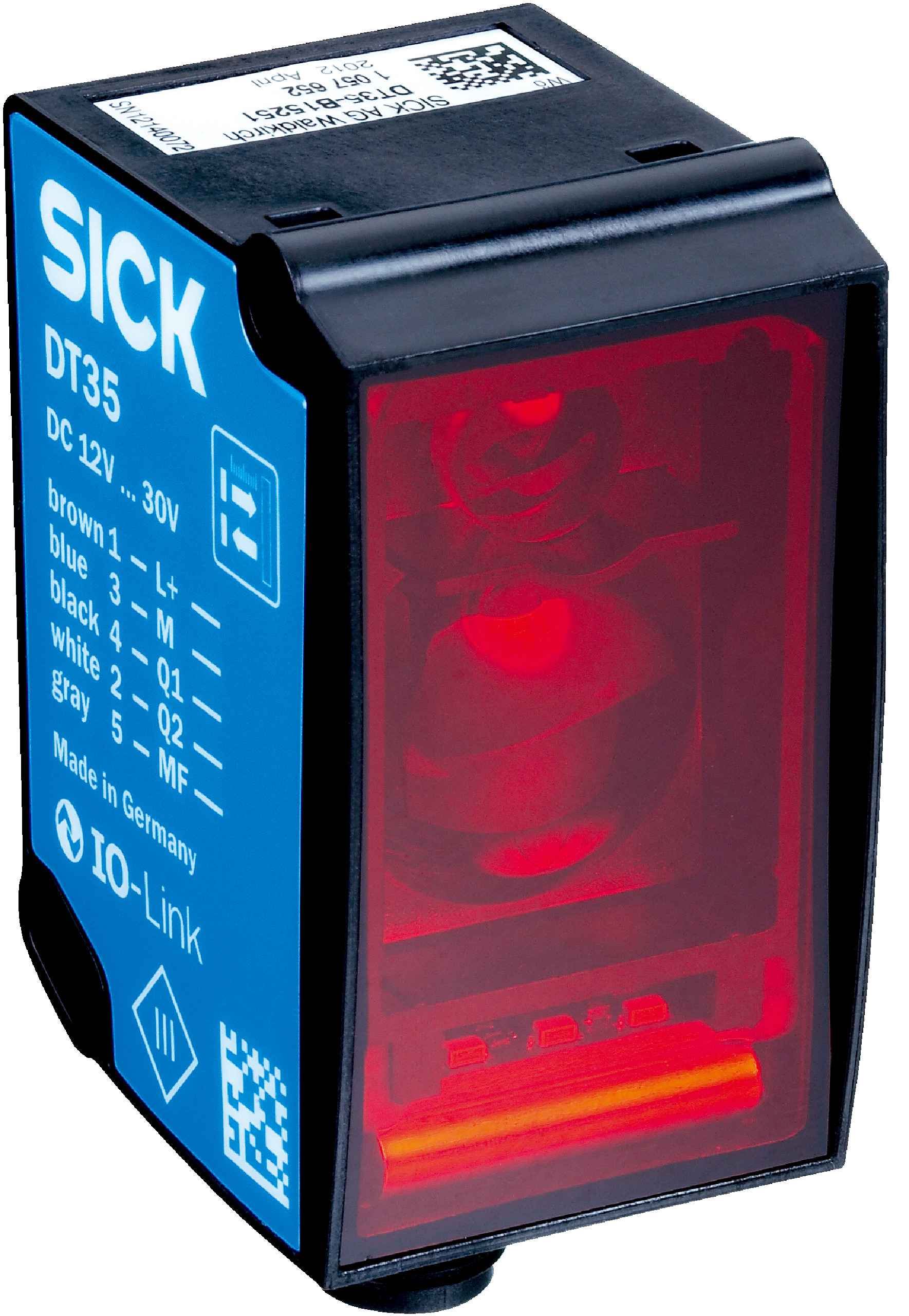

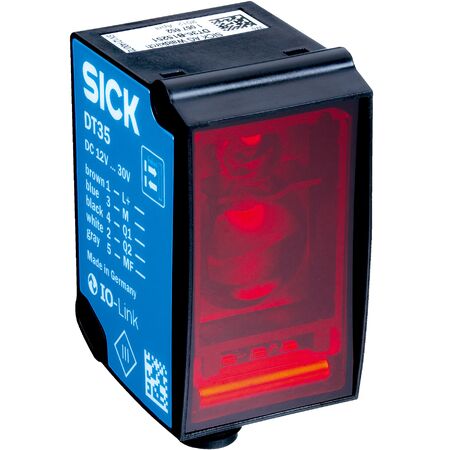

Laser Distance Sensor DT35-B15551 | 50 mm to 12,000 mm Range | 0.1 mm Resolution | IP65 & IP67 Rated | by SICK
The Laser Distance Sensor DT35-B15551 offers a measuring range from 50 mm to 12,000 mm, with a high resolution of 0.1 mm and repeatability of ≥ 0.5 mm. Designed for industrial automation, this sensor is perfect for precise distance measurement, object detection, and quality control. With a fast response time and robust IP65/IP67 enclosure, it ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 50 mm to 12,000 mm (90% remission factor)
- Resolution: 0.1 mm
- Repeatability: ≥ 0.5 mm
- Measurement accuracy: Typically ±10 mm
- Response time: 4.5 ms to 192.5 ms
- Switching frequency: Up to 166 Hz
- Output time: 2 ms to 64 ms
- Light source: Red laser, visible light
- Laser class: 1 (IEC 60825-1:2014 compliant)
- Supply voltage: DC 12 V to 30 V
- Power consumption: ≤ 1.7 W
- Enclosure rating: IP65, IP67
- Protection class: III
- Connection type: Male connector
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -40 °C to +75 °C
- Max relative humidity: ≤ 95% non-condensing
- EMC standards: EN 61000-6-2, EN 61000-6-3, EN 61000-6-4
- Dimensions (H x L x W): 58.67mm x 42.7mm x 32mm
- Weight: 0.1 kg
Key Features
- Measuring range from 50 mm to 12,000 mm depending on remission factor
- High resolution of 0.1 mm and repeatability ≥ 0.5 mm
- Fast response time from 4.5 ms to 192.5 ms
- Visible red laser light with a typical spot size of 15 mm x 15 mm at 2 m
- Multiple output options including current, voltage, and digital outputs
- IP65 and IP67 rated enclosure for robust protection
- Supports IO-Link V1.1 for process data, parameterization, and diagnosis
- Safety laser class 1 with 100,000 hours average laser service life
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for precise distance measurement
- Object detection and positioning in manufacturing
- Quality control and process monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of ≤ 1.7 W reduces energy usage
- Long laser service life of 100,000 hours minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DT35-B15551 Laser Distance Sensor is available for immediate purchase. Ideal for industrial automation, manufacturing, and quality control applications.
