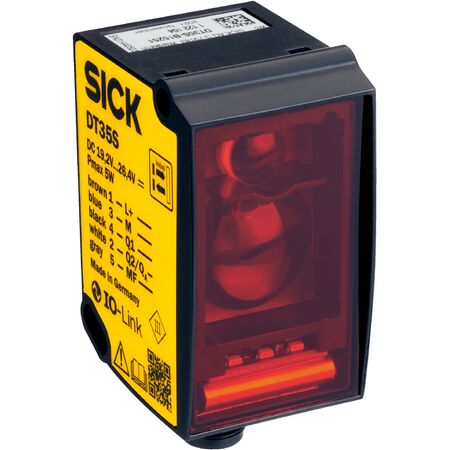

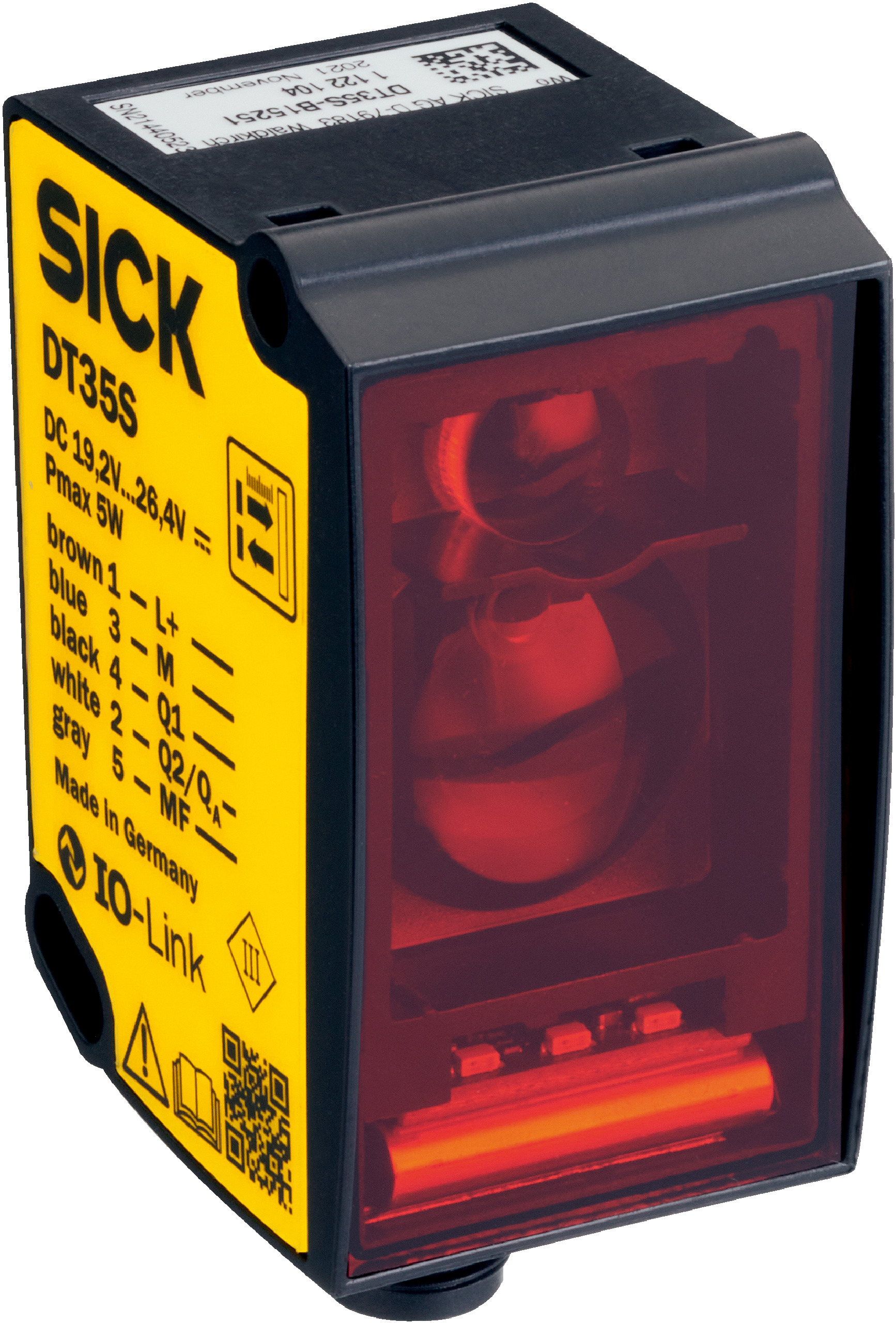

Laser Distance Sensor DT35S-B15251 | 50 mm to 8,500 mm Range | 1 mm Resolution | IP67 Rated | by SICK
The Laser Distance Sensor DT35S-B15251 offers a measuring range from 50 mm to 8,500 mm with a high resolution of 1 mm, making it perfect for industrial automation and safety monitoring. With a fast response time of 15 ms to 50 ms and a robust IP67 enclosure, this sensor is designed for reliable performance in harsh environments, ensuring accurate object detection and positioning.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 50 mm to 8,500 mm (90% remission factor)
- Resolution: 1 mm
- Systematic and statistical error: < 25 mm
- Response time: 15 ms to 50 ms
- Light source: Red laser, visible light
- Laser class: 2 (IEC 60825-1:2014)
- Supply voltage: DC 19.2 V to 26.4 V
- Power consumption: ≤ 1.7 W
- Output: 1 digital push-pull output (PNP/NPN), 1 analog current output (4 mA to 20 mA)
- Interface: IO-Link V1.1 with 38.4 kbit/s data rate
- Enclosure rating: IP67
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Connection: Male M12, 5-pin connector
- Dimensions (H x L x W): 58.67mm x 42.7mm x 32mm
- Weight: 0.1 kg
Key Features
- Safety-related measuring range from 50 mm to 8,500 mm depending on remission factor
- High resolution of 1 mm for accurate measurements
- Fast response time between 15 ms and 50 ms
- Visible red laser light source with 15 mm x 15 mm spot size at 2 m
- Adjustable speed settings and configurable analog/digital outputs
- Robust IP67 rated enclosure for harsh environments
- Complies with laser safety class 2 standards
- Multifunctional input for laser off and deactivation
- Supports IO-Link V1.1 for easy integration and configuration
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical wiring standards to ensure compliance and optimal sensor performance.
Applications
- Industrial automation for precise distance measurement
- Safety-related monitoring in machinery and robotics
- Object detection and positioning in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with IEC 61010-1 electrical safety standards
Environmental Benefits
- Low power consumption of ≤ 1.7 W reduces energy usage
- Durable design minimizes waste and replacement frequency
- Supports long mission time of 20 years enhancing sustainability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK DT35S-B15251 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
