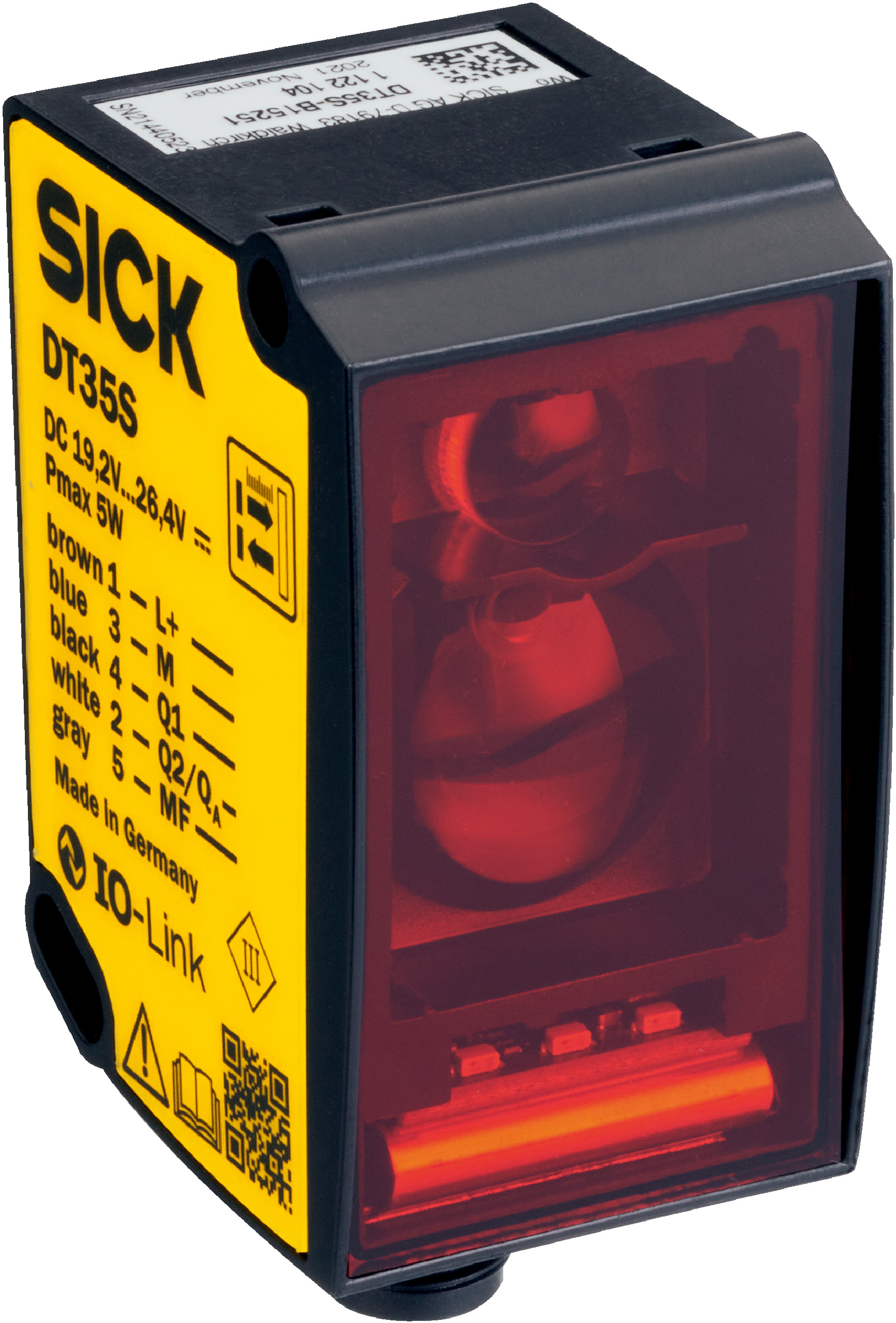

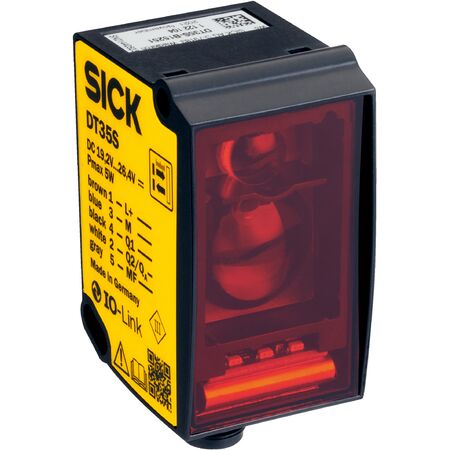

Laser Distance Sensor DT35S-B15551 | 50 mm to 8,500 mm Range | 1 mm Resolution | IP67 Rated | by SICK
The Laser Distance Sensor DT35S-B15551 offers a measuring range from 50 mm to 8,500 mm, making it perfect for industrial automation and safety applications. With a high resolution of 1 mm and a fast response time of 15 ms to 50 ms, this sensor ensures precise distance measurement and reliable object detection. Its robust IP67 enclosure and compliance with safety standards make it a durable choice for various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 50 mm to 8,500 mm depending on remission factor
- Resolution: 1 mm
- Response time: 15 ms to 50 ms
- Light source: Visible red laser, laser class 1
- Output: 1 digital output (push-pull PNP/NPN), 1 analog current output (4 mA to 20 mA)
- Supply voltage: DC 19.2 V to 26.4 V
- Power consumption: ≤ 1.7 W
- Enclosure rating: IP67
- Connection: Male M12, 5-pin connector
- Operating temperature: -25°C to +50°C
- EMC standards: EN 61000-6-2, EN 61000-6-3, EN 61000-6-4
- Dimensions (H x L x W): 58.67mm x 42.7mm x 32mm
- Weight: 0.1 kg
Key Features
- Safety-related measuring range from 50 mm to 8,500 mm with varying remission factors
- High resolution of 1 mm with systematic and statistical error under 25 mm
- Fast response time between 15 ms and 50 ms
- Visible red laser light source with laser class 1 safety
- Adjustable speed settings and configurable analog/digital outputs
- IO-Link V1.1 interface with 38.4 kbit/s data transmission rate
- Robust IP67 rated enclosure with plastic housing and window
- Wide operating temperature range from -25°C to +50°C
- Certified to multiple safety and EMC standards including IEC 61010-1 and EN ISO 13849-1
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and compliance with safety standards.
Applications
- Industrial automation for precise distance measurement
- Safety-related applications requiring reliable object detection
- Process control with configurable analog and digital outputs
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Low power consumption of ≤ 1.7 W reduces energy usage
- Durable design with long mission time of 20 years minimizes waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and duration.
Available Now
The SICK DT35S-B15551 Laser Distance Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
