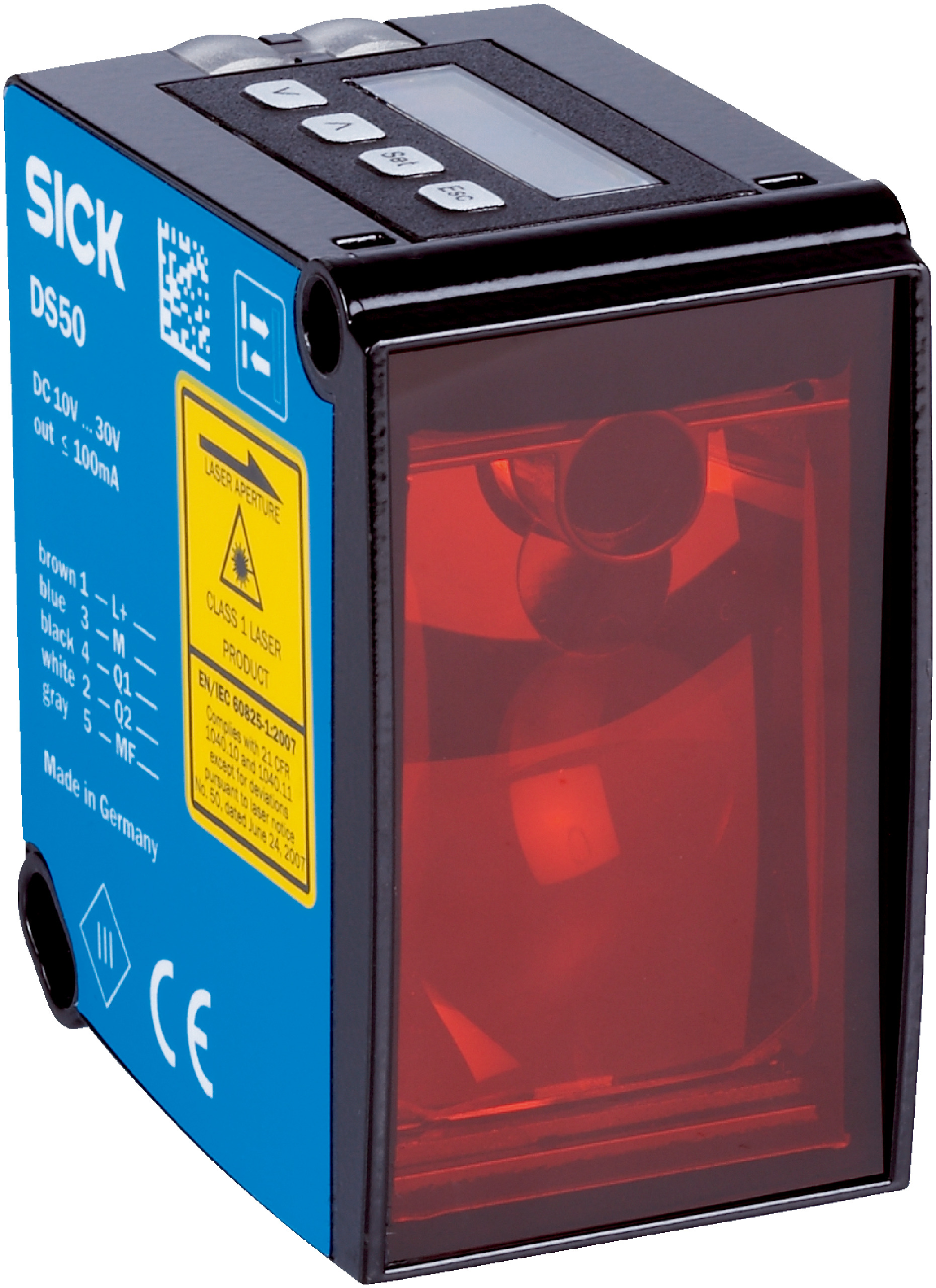

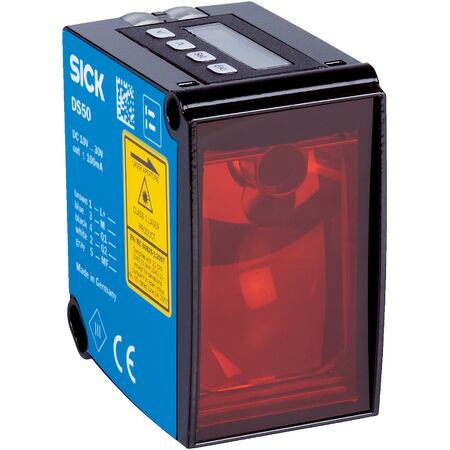

Laser Distance Sensor DT50-N1114 | 200 mm to 10,000 mm Range | 1 mm Resolution | IP65 Rated | by SICK
The Laser Distance Sensor DT50-N1114 offers a measuring range from 200 mm to 10,000 mm, with a high resolution of 1 mm and repeatability of ≥ 2.5 mm. Designed for industrial automation, this sensor is perfect for precise distance measurement, object detection, and quality control. With an IP65 rated enclosure, it ensures durability and reliability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Laser Distance Sensor DT50-N1114 | 200 mm to 10,000 mm Range | 1 mm Resolution | IP65 Rated | by SICK
Brand: SICK
SKU: 1047582
Alternatively Known As: Laser Distance Sensor DT50, SICK DT50 Laser Sensor, Industrial Laser Distance Meter
Technical Specifications
- Measuring range: 200 mm to 10,000 mm (90% remission factor)
- Resolution: 1 mm
- Repeatability: ≥ 2.5 mm
- Measurement accuracy: ± 10 mm
- Response time: 20 ms to 30 ms
- Output time: ≥ 4 ms
- Light source: Visible red laser, class 2
- Typical light spot size at 10 m: 15 mm x 15 mm
- Supply voltage: DC 15 V to 30 V
- Power consumption: ≤ 2.1 W
- Ripple: ≤ 5 V pp
- Initialization time: ≤ 250 ms
- Warm-up time: ≤ 15 min
- Display: LC display with 2 LEDs
- Enclosure rating: IP65
- Protection class: III
- Connection: Male M12, 5-pin connector
- Ambient temperature operation: -30 °C to +65 °C (up to +140 °C with cooling plates and filter)
- Max relative humidity: ≤ 95% non-condensing
- Vibration and shock resistance compliant with EN 60068 standards
- Dimensions (H x L x W): 63mm x 58mm x 36mm
- Weight: 0.2 kg
Key Features
- Measuring range from 200 mm to 10,000 mm depending on remission factor
- High resolution of 1 mm and repeatability ≥ 2.5 mm
- Fast response time between 20 ms and 30 ms
- Visible red laser light source with laser class 2
- Multifunctional input for laser off, external teach, and deactivation
- IP65 rated enclosure for protection against dust and water
- Metal zinc diecast housing with plastic PMMA window
- LC display with 2 LEDs for status indication
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical connections to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for precise distance measurement
- Object detection and positioning in manufacturing
- Quality control and process monitoring
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of ≤ 2.1 W reduces energy usage
- Long laser service life of 100,000 hours minimizes waste
- Durable metal housing extends product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK DT50-N1114 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precise distance measurement applications.
