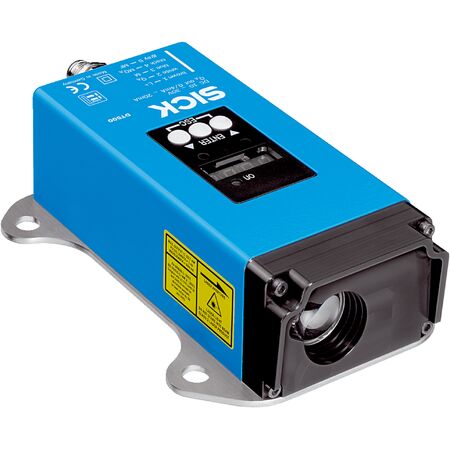

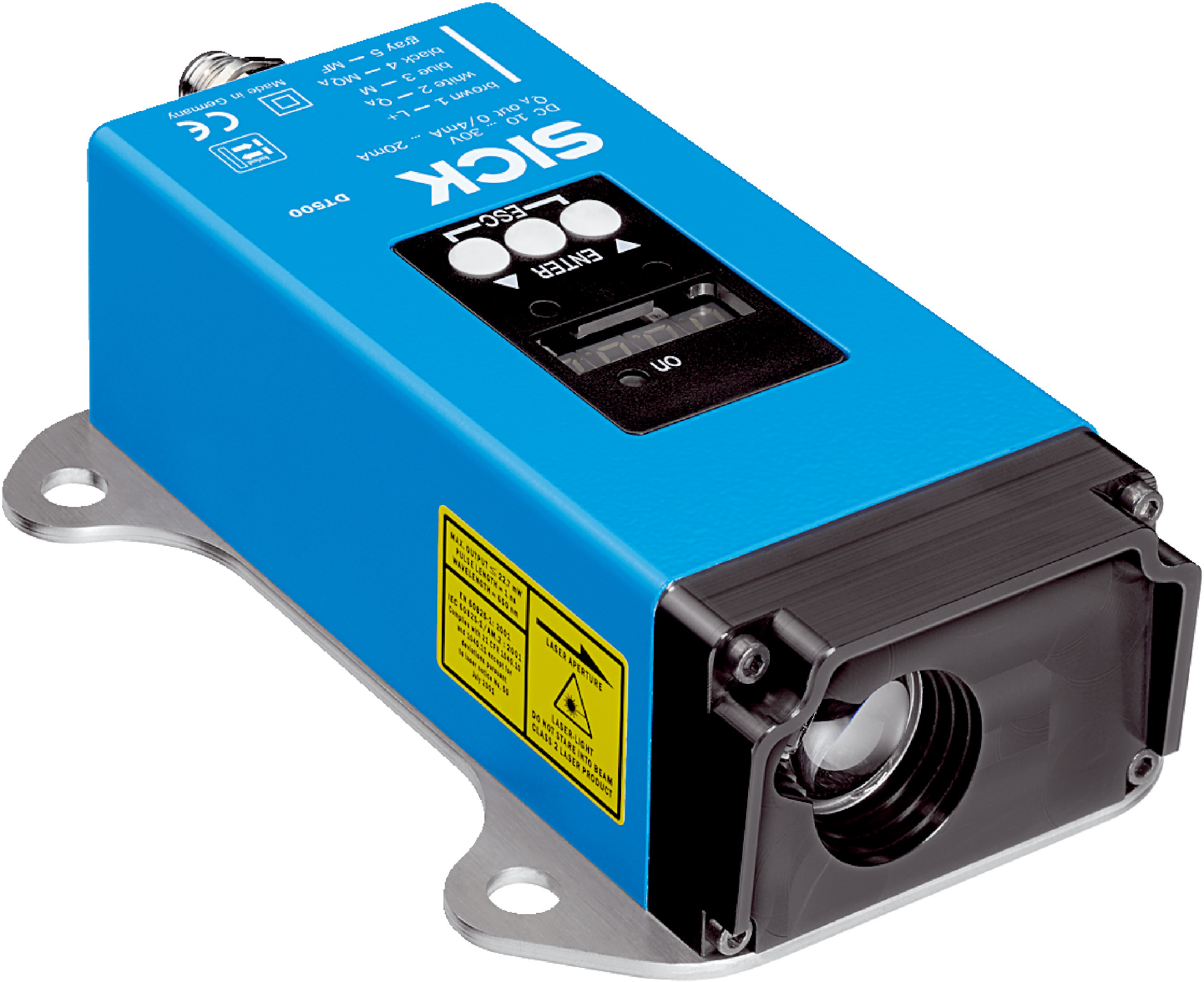

Laser Distance Sensor DT500-A223 | 0.2m to 30m Range | IP65 Rated | by SICK
The Laser Distance Sensor DT500-A223 offers a measuring range from 0.2 m to 30 m with high resolution of ≤ 0.1 mm, making it ideal for industrial automation and measurement applications. With an IP65 rated enclosure and a robust aluminum housing, this sensor ensures durability and reliability in various environments, providing accurate distance measurements for quality control and inspection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0.2 m to 30 m (90% remission), 0.8 m to 15 m (6% remission)
- Resolution: ≤ 0.1 mm
- Repeatability: 1 mm
- Measurement accuracy: ± 3 mm
- Response time: 250 ms
- Output time: 250 ms
- Light source: Visible red laser, class 2
- Typical light spot size: 10 mm at 7 m, 45 mm at 30 m, 100 mm at 70 m
- Supply voltage: DC 10 V to 30 V, reverse polarity protected
- Power consumption: Typically 22 W
- Enclosure rating: IP65
- Protection class: II
- Operating temperature: -40 °C to +45 °C (with heating up to +75 °C)
- Storage temperature: -25 °C to +75 °C
- Connection type: Male M12, 8-pin connector
- EMC compliance: EN 61000-6-2 / EN 61000-6-3
- Dimensions (H x L x W): 50mm x 153mm x 69mm
- Weight: 1 kg
Key Features
- Measuring range from 0.2 m to 30 m with 90% remission factor
- High resolution of ≤ 0.1 mm
- Repeatability of 1 mm
- Measurement accuracy of ± 3 mm
- Response and output time of 250 ms
- Visible red laser light source, laser class 2 compliant with IEC 60825-1:2014
- Heating function for operation in cold environments
- IP65 rated enclosure for dust and water protection
- Robust metal aluminum die cast housing
- M12, 8-pin male connector for connection
- Wide operating temperature range from -40 °C to +45 °C (with heating up to +75 °C)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation and measurement
- Object detection and positioning
- Distance measurement in manufacturing processes
- Quality control and inspection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption during operation
- Durable metal housing extends product lifespan, reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DT500-A223 Laser Distance Sensor is available for immediate purchase, ideal for industrial measurement and automation applications.
