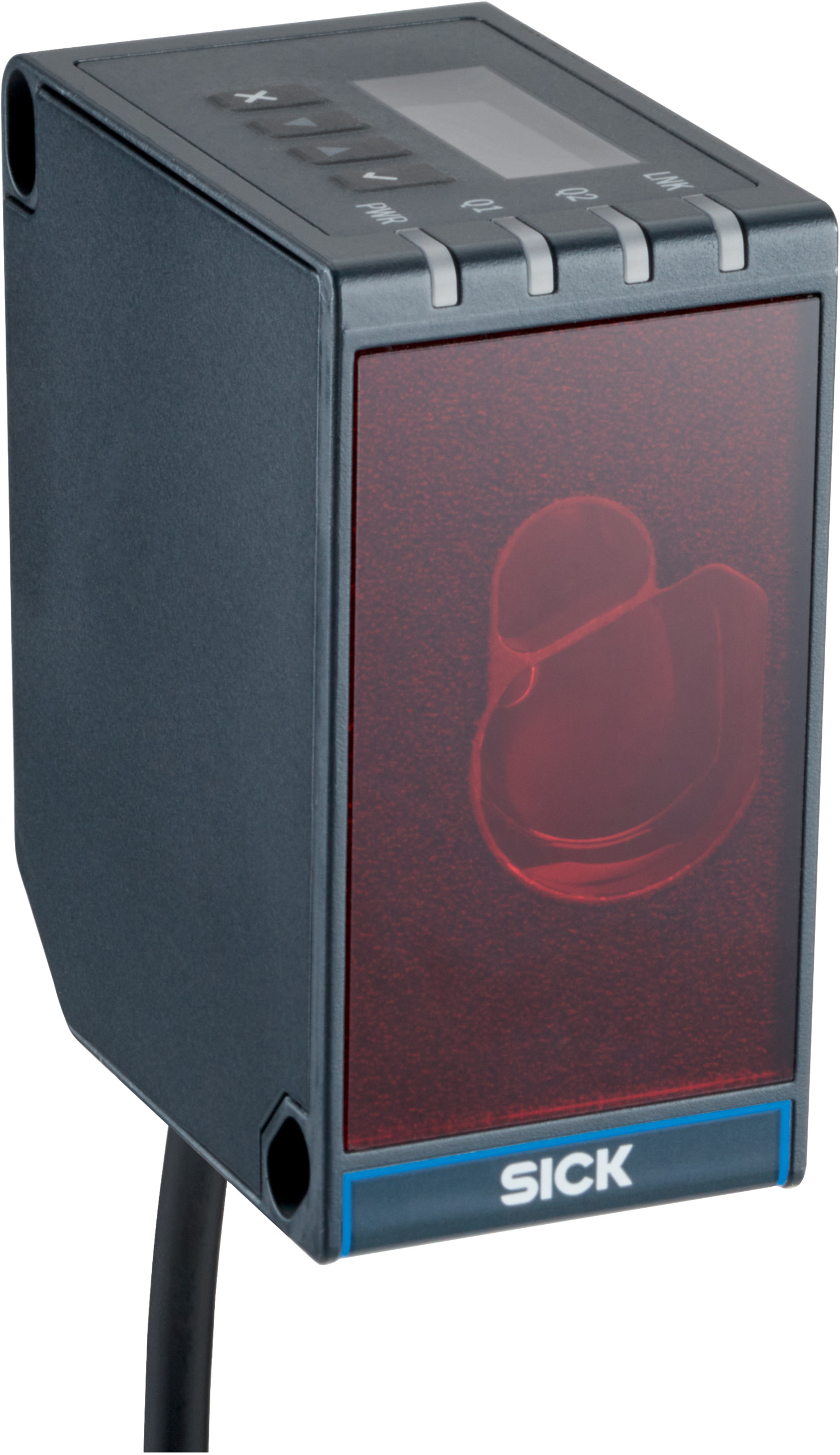

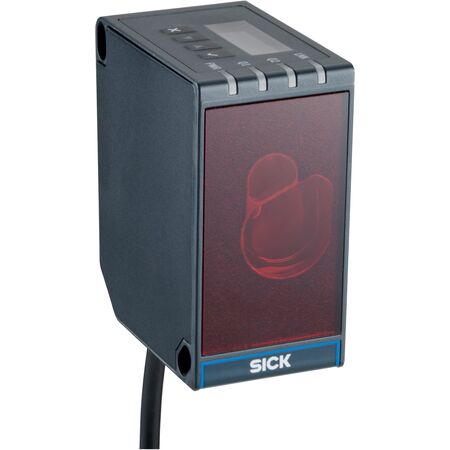

Laser Distance Sensor DT80-311111 | 50 mm to 80,000 mm Range | 0.1 mm Resolution | IP65 & IP67 Rated | by SICK
The Laser Distance Sensor DT80-311111 offers a measuring range from 50 mm to 80,000 mm, making it ideal for industrial automation and precise distance measurement. With a high resolution of 0.1 mm and robust IP65/IP67 protection, this sensor ensures reliable performance in challenging environments. Perfect for object detection, quality control, and process monitoring, it features multiple output options and a long laser service life of 100,000 hours.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 50 mm to 80,000 mm (90% remission factor)
- Resolution: 0.1 mm
- Repeatability: ≥ 0.2 mm
- Measurement accuracy: ± 2 mm
- Response time: 33 ms to 68 ms
- Output time options: 33 ms, 50 ms, 100 ms, 200 ms to 3000 ms
- Light source: Red laser, 655 nm wavelength
- Laser class: 2
- Pulse duration: > 400 µs
- Maximum pulse power: < 1 mW
- Average laser service life: 100,000 hours at 25 °C
- Supply voltage: 12 V to 30 V
- Power consumption: ≤ 2 W
- Enclosure rating: IP65, IP67
- Connection: Cable with M12, 5-pin plug, 300 mm length
- Display: 4 x LED and full color LCD
- Protection class: III
- Data transmission rate: 230.4 kbit/s (IO-Link COM3)
- Digital output: Push-pull PNP/NPN, max 100 mA
- Analog output: 4 mA to 20 mA or 0 V to 10 V, 16 bit resolution
- Dimensions (H x L x W): 65mm x 57mm x 33mm
- Weight: 0.28 kg
Key Features
- Measuring range from 50 mm to 80,000 mm with 90% remission factor
- High resolution of 0.1 mm and repeatability ≥ 0.2 mm
- Measurement accuracy of ± 2 mm
- Fast response time between 33 ms and 68 ms
- Visible red laser light source with 655 nm wavelength
- Robust metal zinc diecast housing with IP65 and IP67 protection
- Multiple output options including current, voltage, and digital outputs
- IO-Link V1.1 communication interface for process data and diagnostics
- Wide operating temperature range from -10 °C to +50 °C
- Shock and vibration resistant according to IEC standards
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for precise distance measurement
- Object detection and positioning in manufacturing
- Quality control and process monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with power consumption ≤ 2 W
- Long laser service life of 100,000 hours reduces waste and replacement frequency
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DT80-311111 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
