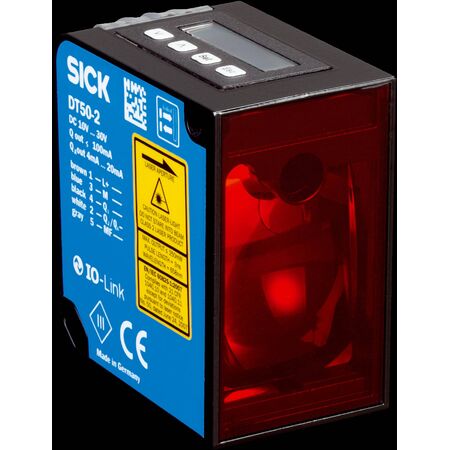

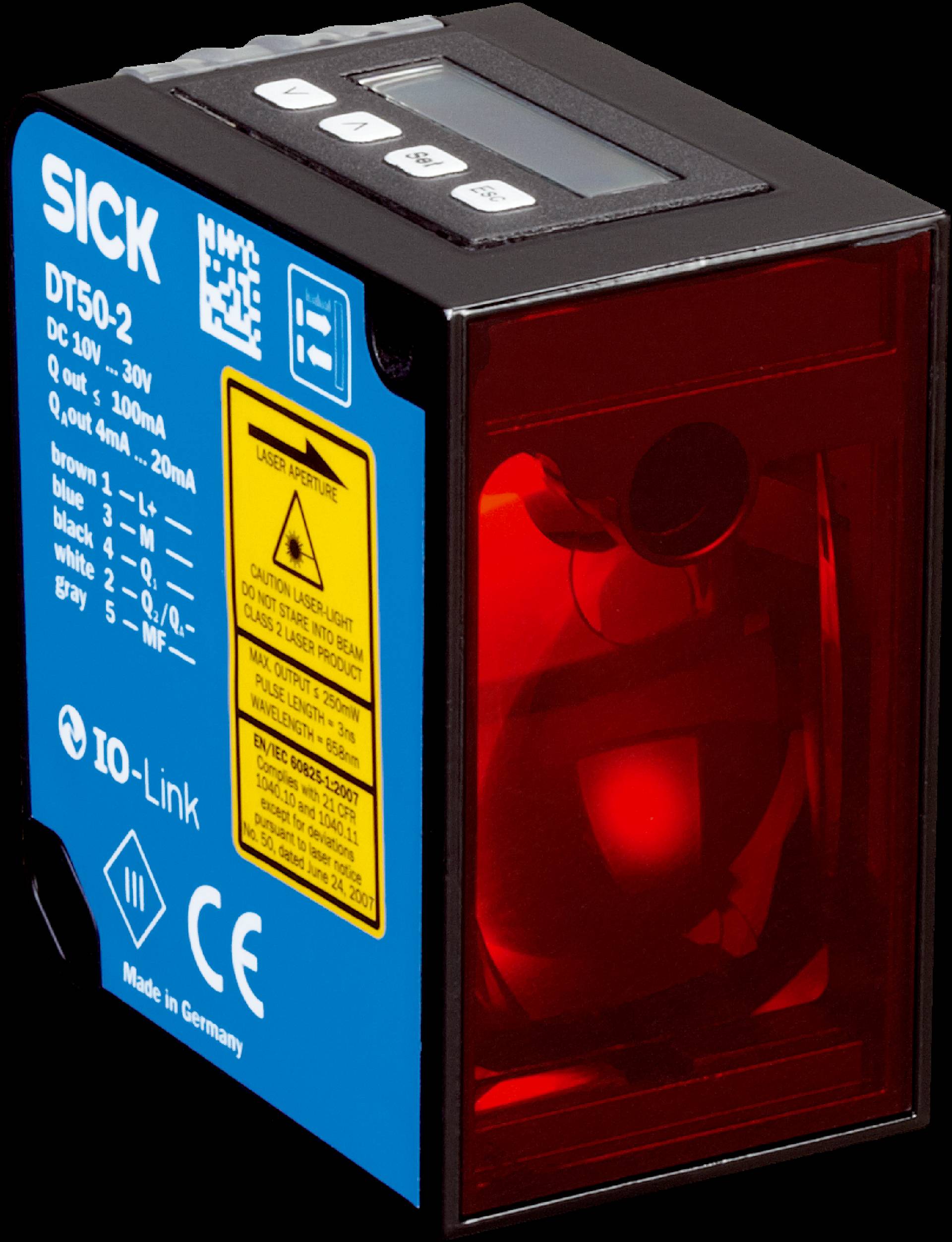

Laser Distance Sensor Dx50-2 | 200mm to 30,000mm Range | IP65 & IP67 Rated | by SICK
The Dx50-2 Laser Distance Sensor is designed for precise distance measurement in industrial automation, featuring a measuring range from 200mm to 30,000mm. With high output rates of up to 3,000 distance values per second and rugged IP65/IP67 enclosure ratings, it’s perfect for harsh environments and material handling applications. Built for reliability, this sensor integrates advanced HDDM technology for accurate performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Laser Distance Sensor Dx50-2 | 200mm to 30,000mm Range | IP65 & IP67 Rated | by SICK
Brand: SICK
SKU: 1065661
Alternatively Known As: Laser Distance Sensor, Time-of-Flight Distance Sensor, Industrial Distance Sensor, HDDM Sensor
Technical Specifications
- Minimum measuring range: 200 mm
- Maximum measuring range: 30,000 mm
- Type of analog output: Current output, voltage output
- Operating temperature range: -40 °C to +65 °C (standard), up to 140 °C (extended)
- Response time: 0.83 ms
- Laser class: 2
- Output rate: Up to 3,000 distance values per second
- Repeatability: 0.5 mm to 5 mm
- Enclosure rating: IP65 and IP67
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Measuring range up to 10 m on black targets and up to 30 m on white targets
- High output rate up to 3,000 distance values per second
- Repeatability from 0.5 mm to 5 mm
- Reliable patented HDDM time-of-flight technology
- Rugged metal housing withstands extreme temperatures from –40 °C to +65 °C
- Integrated shape comparison in sensor
- IO-Link, analog and digital output options
- Intuitive display with easy-teach operation
- Enclosure rating IP65 and IP67 for dust and water protection
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and calibration for optimal performance.
Applications
- Industrial automation for precise distance measurement
- Material handling and logistics for object detection
- Quality control and process monitoring
- Harsh environment applications requiring rugged sensors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation lowers power consumption in industrial settings
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK Dx50-2 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
