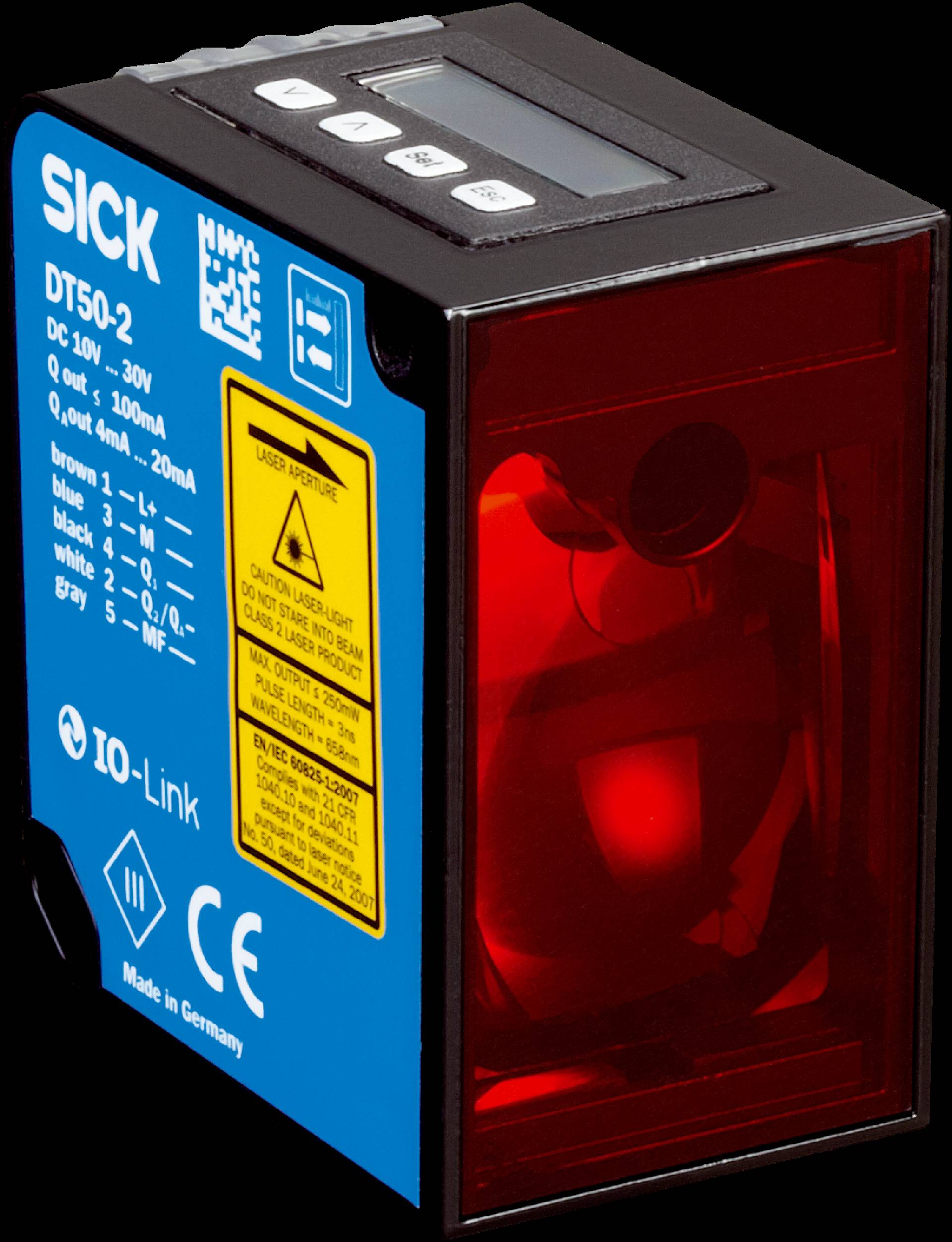

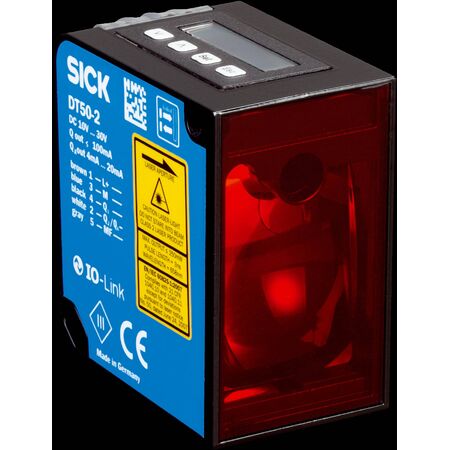

Laser Distance Sensor Dx50-2 | 200mm to 30,000mm Range | IP65 & IP67 Rated | by SICK
The Dx50-2 Laser Distance Sensor is designed for industrial automation, offering a measuring range from 200mm to 30,000mm with high output rates of up to 3,000 distance values per second. Built to withstand extreme temperatures from -40°C to +65°C, this sensor features reliable HDDM technology and is perfect for applications in material handling, quality control, and harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Laser Distance Sensor Dx50-2 | 200mm to 30,000mm Range | IP65 & IP67 Rated | by SICK
Brand: SICK
SKU: 1075271
Alternatively Known As: Laser Distance Sensor, Time-of-Flight Distance Sensor, HDDM Distance Sensor, Industrial Distance Sensor
Technical Specifications
- Minimum measuring range: 200 mm
- Maximum measuring range: 30,000 mm
- Type of analog output: Current output, voltage output
- Operating temperature range: -40 °C to +65 °C (standard), up to 140 °C (extended)
- Response time: 1.67 ms
- Laser class: 1
- Output rate: Up to 3,000 distance values per second
- Repeatability: 0.5 mm to 5 mm
- Enclosure rating: IP65 and IP67
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Measuring range up to 10 m on black targets and up to 30 m on white targets
- High output rate delivering up to 3,000 distance values per second
- Repeatability from 0.5 mm to 5 mm
- Reliable patented HDDM time-of-flight technology
- Rugged metal housing withstands extreme temperatures from –40 °C to +65 °C
- Integrated shape comparison in sensor
- IO-Link, analog and digital output options
- Display with intuitive operation and easy-teach option
- Enclosure rating IP65 and IP67 for dust and water protection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for precise distance measurement
- Material handling and logistics for object detection and positioning
- Quality control and process monitoring in manufacturing
- Harsh environment sensing with temperature extremes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation minimizes power consumption during use
Warranty Information
Standard manufacturer warranty applies; typically 1-2 years against defects.
Available Now
The SICK Dx50-2 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precise distance measurement applications.
