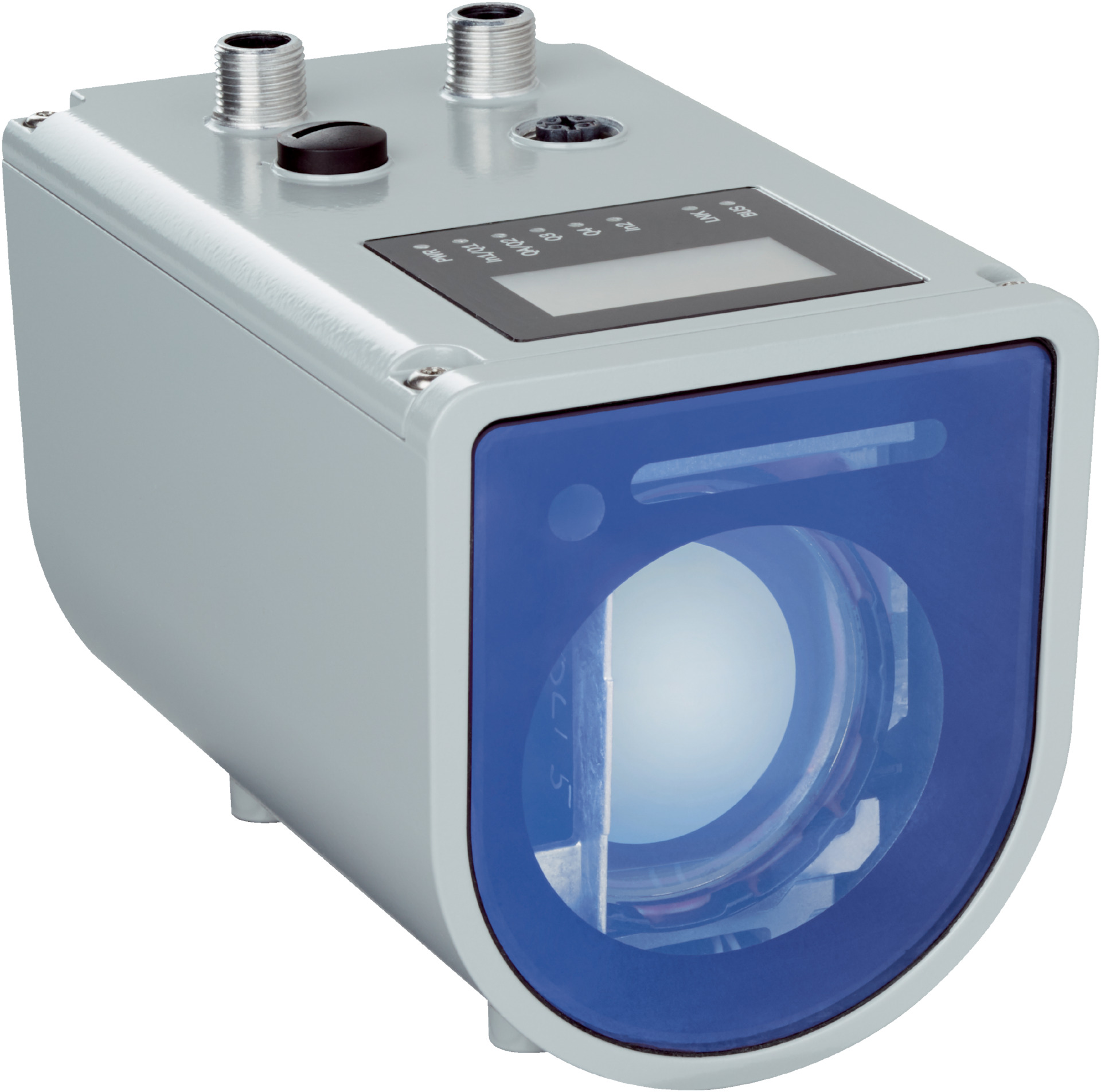

Laser Distance Sensor DT1000-S11101 | HDDM+ Technology | 0.2m to 460m Range | IP65 & IP67 Rated | by SICK
The Laser Distance Sensor DT1000-S11101 utilizes advanced HDDM+ technology for precise distance measurement, ranging from 0.2m to 460m. With a high resolution adjustable from 0.001 mm to 100 mm and an impressive measurement accuracy of ± 15 mm, this sensor is perfect for industrial applications. Its robust IP65 and IP67 enclosure ensures reliable performance in various environments, making it ideal for manufacturing and automation tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: HDDM+
- Measuring range: 0.2 m to 155 m (6% remission), 0.2 m to 460 m (90% remission)
- Resolution: 0.001 mm to 100 mm, adjustable
- Repeatability: ≥ 1 mm
- Measurement accuracy: Typically ± 15 mm
- Response time: 3 ms to 384 ms
- Measurement cycle time options: 1 ms, 4 ms, 16 ms, 64 ms, 128 ms
- Output time: ≥ 1 ms
- Light source: Infrared laser 905 nm, visible red laser 650 nm
- Laser class: 1 (IEC 60825-1:2014)
- Light spot size varies with distance from 5 mm x 20 mm at 1 m to 570 mm x 140 mm at 200 m
- Filters: Rain, snow, fog, moving average distance and speed, Kalman filter
- Max object temperature: +1400 °C
- Max movement speed: 128 m/s
- Supply voltage: DC 18 V to 30 V, reverse polarity protected
- Power consumption: ≤ 22 W (without heating), ≤ 35 W (with heating)
- Enclosure rating: IP65 and IP67
- Protection class: III (EN 61140)
- Interfaces: Ethernet TCP/IP 10/100 MBit/s, RS-422 serial, SSI
- Inputs/outputs: Digital and analog outputs, digital inputs
- Display: Graphical resistive touch display with status LEDs
- Operating temperature: -40 °C to +55 °C (up to +95 °C with cooling case)
- Storage temperature: -40 °C to +75 °C
- Weight: 980 g
- Housing material: Aluminum alloy (AlSi12)
- Window material: Glass
- Connection type: Round connector M12 x 1
- Dimensions (H x L x W): 104mm x 141mm x 84mm
- Weight: 0.98 kg
Key Features
- Measurement principle: HDDM+
- Measuring range: 0.2 m to 155 m (6% remission), up to 460 m (90% remission)
- High resolution adjustable from 0.001 mm to 100 mm
- Repeatability ≥ 1 mm
- Measurement accuracy typically ± 15 mm
- Fast response time from 3 ms to 384 ms
- Infrared measuring laser (905 nm) and visible red alignment laser (650 nm)
- Laser class 1 for safe operation
- Multiple filters including rain, snow, fog, and Kalman filter
- Max object temperature up to +1400 °C
- Average laser service life of 100,000 hours
- Max movement speed 128 m/s
- Graphical resistive touch display with status LEDs
- Enclosure rated IP65 and IP67
- Shock resistant to 30 g / 6 ms
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper setup, calibration, and compliance with safety standards.
Applications
- Industrial distance measurement
- Natural object detection
- High precision measurement in manufacturing and automation
- Outdoor and indoor measurement applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Long laser service life reduces waste and replacement frequency
- Energy efficient operation with low power consumption
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK DT1000-S11101 Laser Distance Sensor is available for immediate purchase, ideal for industrial and automation applications requiring precise distance measurement.
