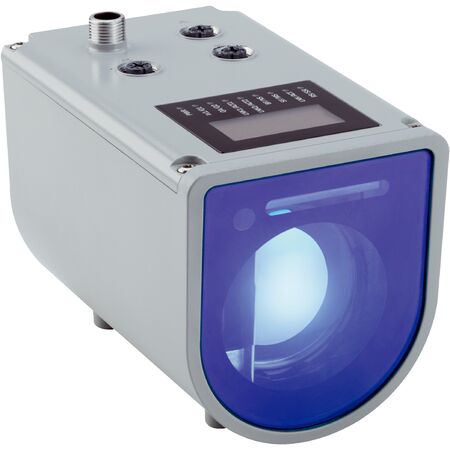

Laser Distance Sensor DL1000-S11110 | HDDM+ Measurement Principle | 0.2m to 1500m Range | IP65 & IP67 Rated | by SICK
The Laser Distance Sensor DL1000-S11110 utilizes HDDM+ technology for precise measurements ranging from 0.2m to 1500m, making it ideal for industrial distance measurement and automation applications. With a high resolution adjustable from 0.001 mm to 100 mm and an IP65/IP67 enclosure rating, this sensor is built for durability in harsh environments, ensuring reliable performance in material handling and logistics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: HDDM+
- Measuring range: 0.2 m to 1500 m on diamond grade reflective tape
- Resolution: 0.001 mm to 100 mm adjustable
- Repeatability: ≥ 1 mm
- Measurement accuracy: Typically ± 15 mm
- Response time: 3 ms to 384 ms
- Measurement cycle time: 1 ms, 4 ms, 16 ms selectable
- Output time: ≥ 1 ms
- Light source: Infrared laser 905 nm, visible red light 650 nm for alignment
- Laser class: 1 (IEC 60825-1:2014)
- Filters: Rain, snow, fog, moving average distance and speed, Kalman filter
- Max movement speed: 128 m/s
- Supply voltage: DC 18 V to 30 V, reverse polarity protected
- Power consumption: ≤ 22 W (without heating), ≤ 35 W (with heating)
- Enclosure rating: IP65 and IP67
- Protection class: III (EN 61140)
- Display: Graphical resistive touch with status LEDs
- Connection: Round connector M12 x 1
- Dimensions (H x L x W): 104mm x 141mm x 84mm
- Weight: 1 kg
Key Features
- Measurement principle: HDDM+
- Measuring range: 0.2 m to 1500 m on diamond grade reflective tape
- High resolution adjustable from 0.001 mm to 100 mm
- Repeatability ≥ 1 mm
- Measurement accuracy typically ± 15 mm
- Response time from 3 ms to 384 ms
- Laser class 1 for safe operation
- Multiple filters including rain, snow, fog, and Kalman filter
- Average laser service life of 100,000 hours
- Max movement speed up to 128 m/s
- Graphical resistive touch display with status LEDs
- Enclosure rating IP65 and IP67 for harsh environments
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial distance measurement
- Automation and process control
- Material handling and logistics
- Safety and monitoring systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long laser service life reduces waste and replacement frequency
- Energy-efficient operation with low power consumption
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK DL1000-S11110 Laser Distance Sensor is available for immediate purchase, ideal for industrial and automation applications requiring precise long-range distance measurement.
