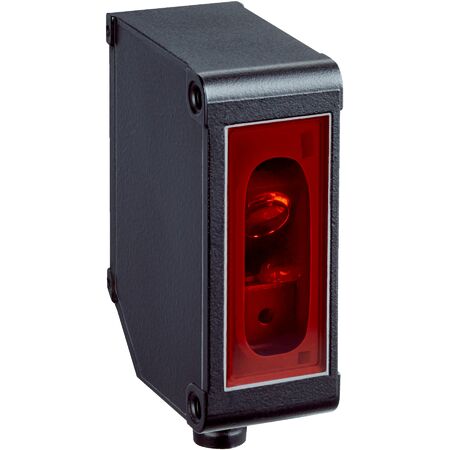

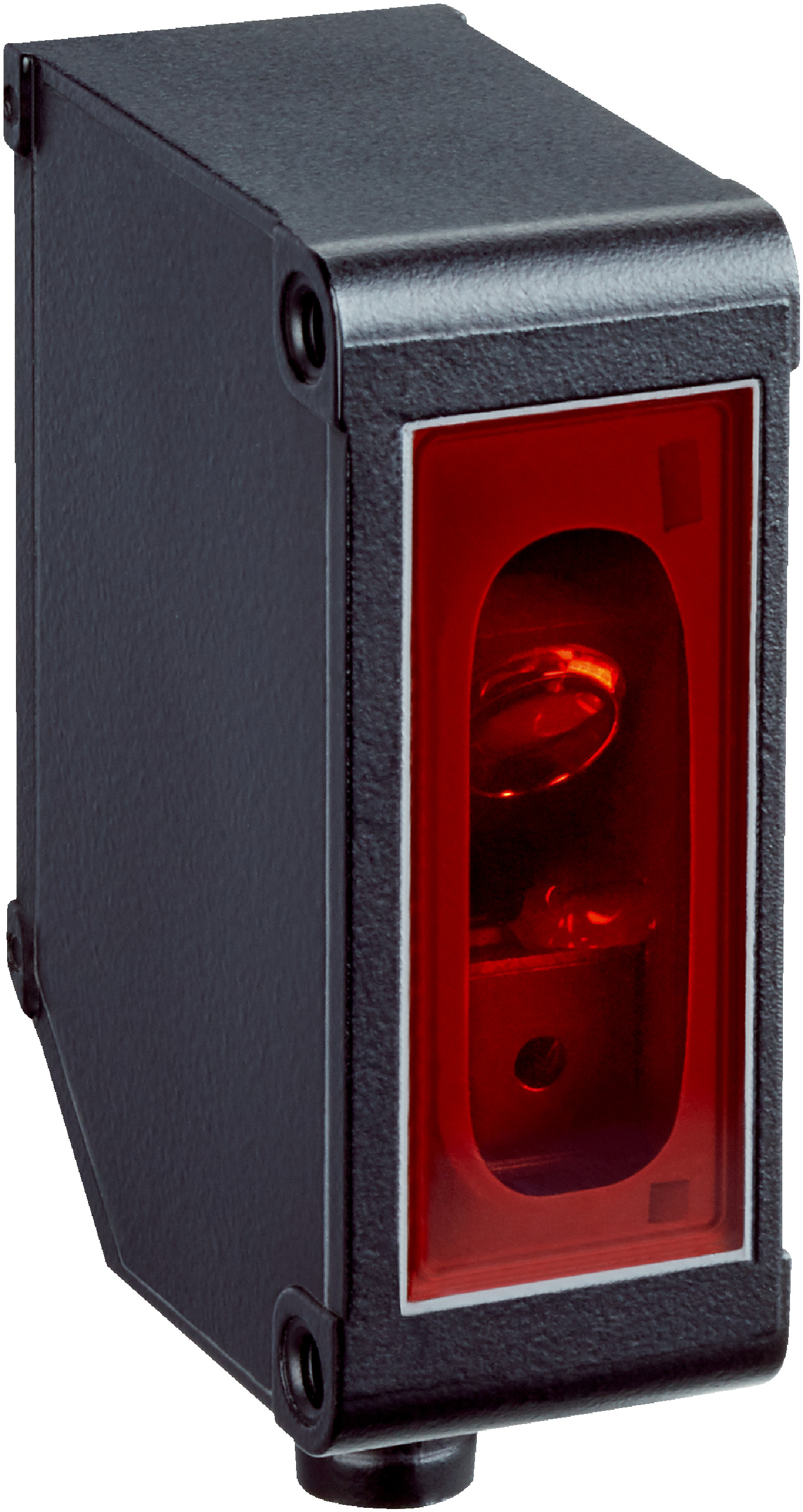

Laser Distance Sensor OD1-B015C05I14 | 10 mm to 20 mm Range | 1 µm Repeatability | IP67 Rated | by SICK
The Laser Distance Sensor OD1-B015C05I14 offers a measuring range from 10 mm to 20 mm with an impressive repeatability of 1 µm, making it ideal for industrial automation and precise distance measurement. With a fast response time of ≥ 2 ms and an IP67 rated enclosure, this sensor is built for durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 10 mm to 20 mm
- Repeatability: 1 µm
- Linearity: ±10 µm
- Response time: ≥ 2 ms
- Output time: ≥ 0.5 ms
- Light source: Visible red laser light, Laser class 1 (IEC 60825-1:2014)
- Typical light spot size at 15 mm: 700 µm x 500 µm
- Analog output: 1 current output, 4 mA to 20 mA, ≤ 300 Ω, 13.4 bit resolution
- Supply voltage: DC 12 V (-5%) to DC 24 V (+10%)
- Power consumption: ≤ 1.92 W
- Warm-up time: ≤ 5 minutes
- Enclosure rating: IP67
- Protection class: III
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +60 °C
- Humidity: 35% to 95% non-condensing
- Vibration resistance: 10 Hz to 55 Hz, 1.5 mm amplitude
- Shock resistance: 50 G
- Dimensions (H x L x W): 44mm x 31mm x 18mm
- Weight: 0.1 kg
Key Features
- Measuring range from 10 mm to 20 mm
- High repeatability of 1 µm
- Linearity of ±10 µm
- Fast response time ≥ 2 ms and output time ≥ 0.5 ms
- Visible red laser light source, Laser class 1
- Multiple switching modes including window, distance to object, and object between sensor and background
- Automatic and manual sensitivity adjustment
- IP67 rated enclosure for robust protection
- 4-digit 7-segment display with 4 LEDs for status indication
- Metal (Aluminum) housing with plastic (PPSU) window
- Connection via Male M8 4-pin connector
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and sensor alignment.
Applications
- Industrial automation for precise distance measurement
- Quality control and inspection systems
- Robotics and material handling
- Natural object detection in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤ 1.92 W reduces energy usage
- Durable metal housing extends product lifespan, reducing waste
- Complies with China-RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK OD1-B015C05I14 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
