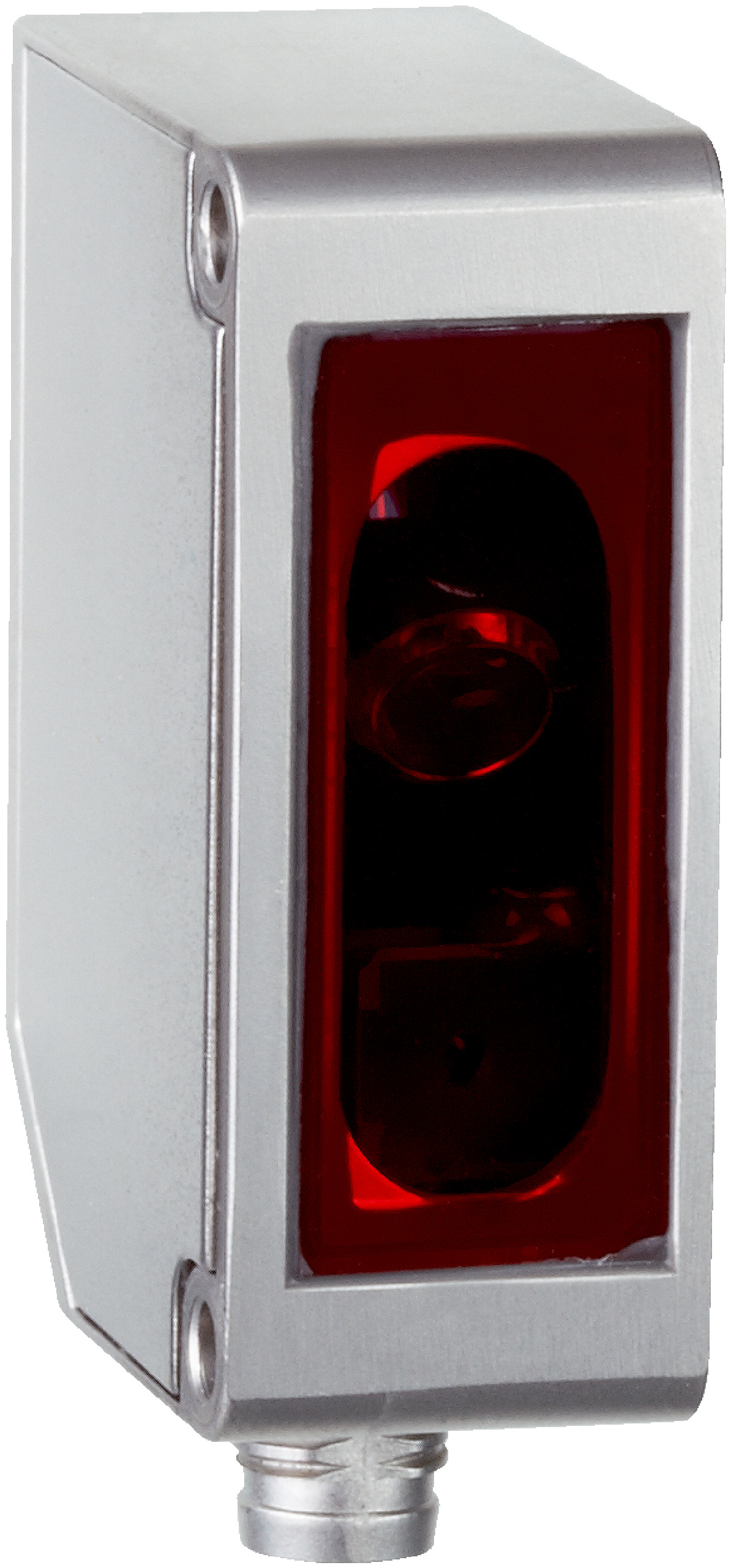

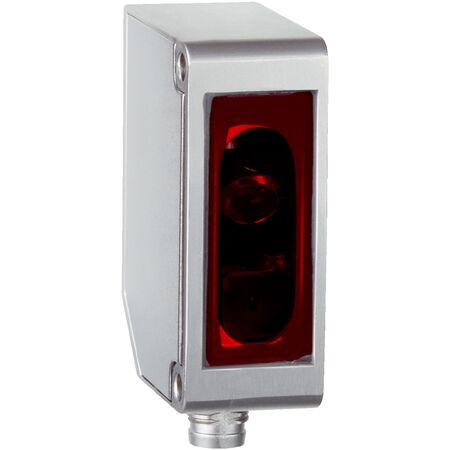

Laser Distance Sensor OD1-B015H05A14 | 10 mm to 20 mm Range | 1 µm Repeatability | IP67 Rated | by SICK
The Laser Distance Sensor OD1-B015H05A14 is designed for precise distance measurement in industrial automation, featuring a measuring range of 10 mm to 20 mm and a high repeatability of 1 µm. With a fast response time of ≥ 2 ms and an IP67 rated stainless steel housing, this sensor is perfect for quality control, robotics, and material handling applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 10 mm to 20 mm
- Repeatability: 1 µm
- Linearity: ±10 µm
- Response time: ≥ 2 ms
- Output time: ≥ 0.5 ms
- Light source: Red visible laser light, Laser class 1 (IEC 60825-1:2014)
- Typical light spot size at 15 mm: 700 µm x 500 µm
- Switching modes: window, distance to object, object between sensor and background
- Supply voltage: DC 12 V (-5%) to DC 24 V (+10%)
- Power consumption: ≤ 1.92 W
- Enclosure rating: IP67
- Protection class: III
- Display: 4-digit 7-segment with 4 status LEDs
- Connection: Male M8, 4-pin connector
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +60 °C
- Humidity: 35% to 95% non-condensing
- Vibration resistance: 10 Hz to 55 Hz, 1.5 mm amplitude
- Shock resistance: 50 G
- Dimensions (H x L x W): 44mm x 31mm x 18mm
- Weight: 0.1 kg
Key Features
- Measuring range from 10 mm to 20 mm
- High repeatability of 1 µm
- Linearity accuracy of ±10 µm
- Fast response time ≥ 2 ms and output time ≥ 0.5 ms
- Red visible laser light source, laser class 1
- Multiple switching modes including window, distance to object, and object between sensor and background
- Automatic or manual sensitivity adjustment
- IP67 rated stainless steel housing for robust industrial use
- 4-digit 7-segment display with 4 LEDs for status indication
- Supports RS-485 serial interface and optional PROFIBUS DP integration
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment for optimal performance.
Applications
- Industrial automation for precise distance measurement
- Quality control and inspection systems
- Robotics and material handling
- Object detection and positioning
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤ 1.92 W reduces energy usage
- Durable stainless steel housing extends product life and reduces waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK OD1-B015H05A14 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
