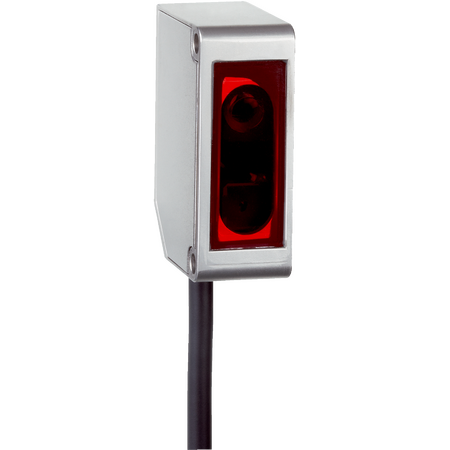

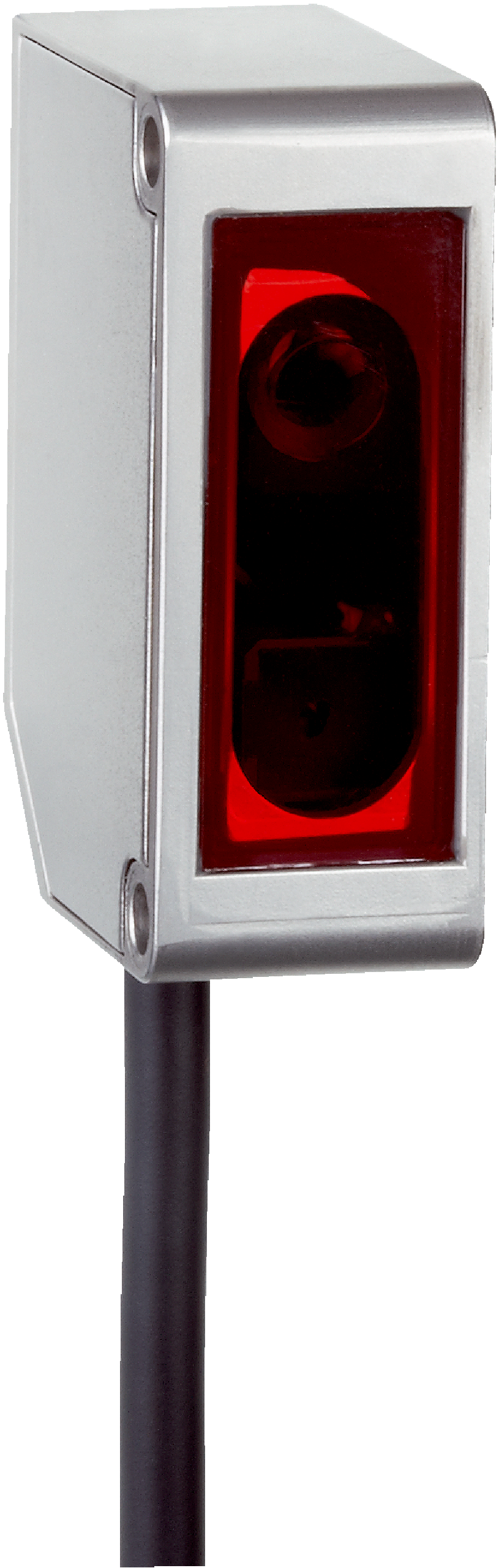

Laser Distance Sensor OD1-B015H05A15 | 10 mm to 20 mm Range | 1 µm Repeatability | IP67 Rated | by SICK
The Laser Distance Sensor OD1-B015H05A15 offers a measuring range from 10 mm to 20 mm with an impressive repeatability of 1 µm, making it perfect for industrial automation and precise distance measurement. With a fast response time of ≥ 2 ms and an IP67 rated enclosure, this sensor is built for durability and reliability in demanding environments, ensuring accurate performance in quality control and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Laser Distance Sensor, Laser Displacement Sensor, OD1 Sensor, SICK Laser Sensor
Technical Specifications
- Measuring range: 10 mm to 20 mm
- Repeatability: 1 µm
- Linearity: ±10 µm
- Response time: ≥ 2 ms
- Measuring frequency: ≤ 2 kHz
- Output time: ≥ 0.5 ms
- Light source: Red laser
- Typical light spot size: 700 µm x 500 µm at 15 mm
- Laser class: 1
- Supply voltage: DC 12 V (-5%) to DC 24 V (+10%)
- Power consumption: ≤ 1.92 W
- Warm-up time: ≤ 5 min
- Display: 4-digit 7-segment with 4 status LEDs
- Enclosure rating: IP67
- Protection class: III
- Connection: Cable with male connector, 30 cm
- Digital output: 1 PNP/NPN selectable
- Analog output: 4 mA to 20 mA, ≤ 300 Ω
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +60 °C
- Humidity: 35% to 95% non-condensing
- Vibration resistance: 10 Hz to 55 Hz, 1.5 mm amplitude
- Shock resistance: 50 G
- Dimensions (H x L x W): 44mm x 31mm x 18mm
- Weight: 0.1 kg
Key Features
- Measuring range from 10 mm to 20 mm
- High repeatability of 1 µm
- Linearity accuracy of ±10 µm
- Fast response time of ≥ 2 ms
- Measuring frequency up to 2 kHz
- Red laser light source with typical spot size 700 µm x 500 µm at 15 mm
- Multiple switching modes including window, distance to object, and object between sensor and background
- Averaging function from 1 to 512x
- IP67 rated enclosure for robust protection
- Stainless steel housing with plastic (PPSU) window
- 4-digit 7-segment display with 4 LEDs for status indication
- Supports RS-485 serial interface and optional PROFIBUS DP integration
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and industrial sensor integration to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for precise distance measurement
- Quality control and inspection systems
- Robotics and manufacturing process monitoring
- Material handling and logistics
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤ 1.92 W reduces energy usage
- Durable stainless steel housing extends product lifespan, reducing waste
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK OD1-B015H05A15 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
