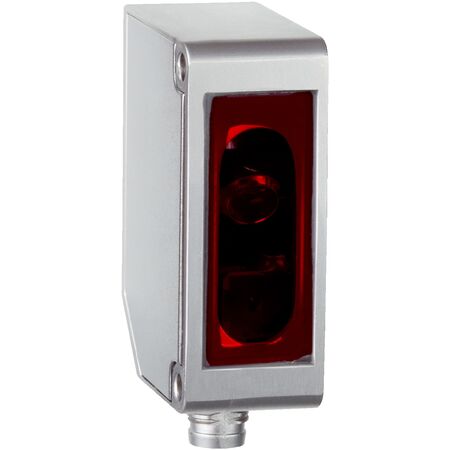

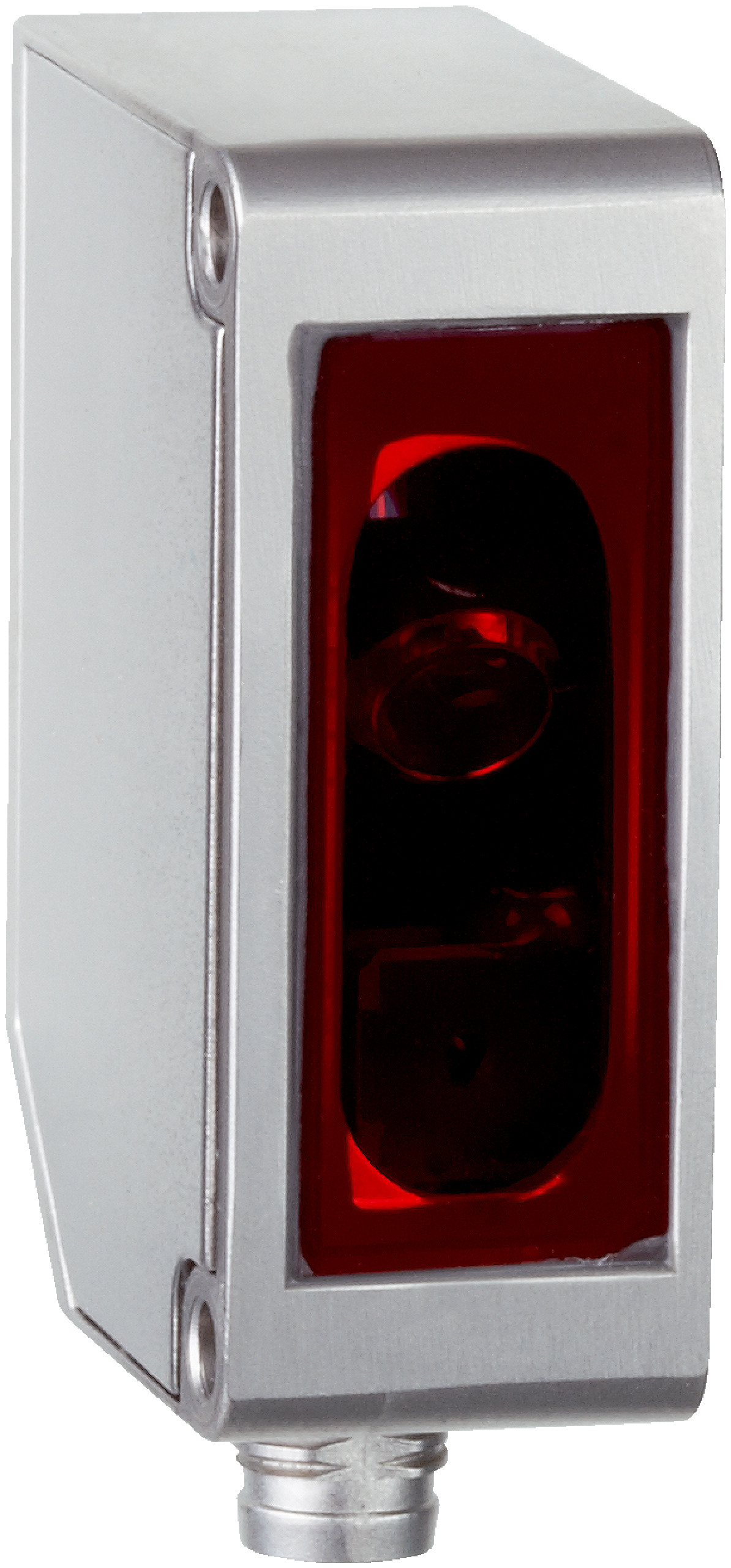

Laser Distance Sensor OD1-B015H05I14 | 10 mm to 20 mm Range | 1 µm Repeatability | IP67 Rated | by SICK
The Laser Distance Sensor OD1-B015H05I14 offers a measuring range from 10 mm to 20 mm with an impressive repeatability of 1 µm, making it ideal for industrial automation and precise distance measurement. With a robust IP67-rated stainless steel housing and fast response times, this sensor is perfect for quality control, robotics, and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 10 mm to 20 mm
- Repeatability: 1 µm
- Linearity: ±10 µm
- Response time: ≥ 2 ms
- Output time: ≥ 0.5 ms
- Light source: Red visible laser light
- Laser class: 1 (IEC 60825-1:2014)
- Typical light spot size at 15 mm: 700 µm x 500 µm
- Analog output: 4 mA to 20 mA current output, ≤ 300 Ω load, 13.4 bit resolution
- Supply voltage: DC 12 V (–5 %) to DC 24 V (+10 %)
- Power consumption: ≤ 1.92 W
- Warm-up time: ≤ 5 minutes
- Enclosure rating: IP67
- Protection class: III
- Operating temperature: –10 °C to +50 °C
- Storage temperature: –20 °C to +60 °C
- Humidity: 35 % to 95 % non-condensing
- Vibration resistance: 10 Hz to 55 Hz, 1.5 mm amplitude
- Shock resistance: 50 G
- Dimensions (H x L x W): 44mm x 31mm x 18mm
- Weight: 0.1 kg
Key Features
- Measuring range from 10 mm to 20 mm
- High repeatability of 1 µm
- Linearity accuracy of ±10 µm
- Fast response time ≥ 2 ms and output time ≥ 0.5 ms
- Red visible laser light source, laser class 1
- Multiple switching modes including window, distance to object, and object between sensor and background
- Automatic and manual sensitivity adjustment
- Analog and digital outputs with teach-in capability
- Robust stainless steel housing with IP67 rating
- 4-digit 7-segment display with LED status indicators
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for precise distance measurement
- Quality control and inspection systems
- Robotics and material handling
- Natural object detection in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤ 1.92 W reduces energy usage
- Durable stainless steel housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK OD1-B015H05I14 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
