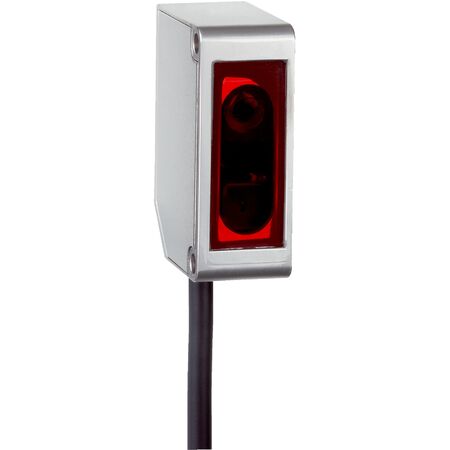

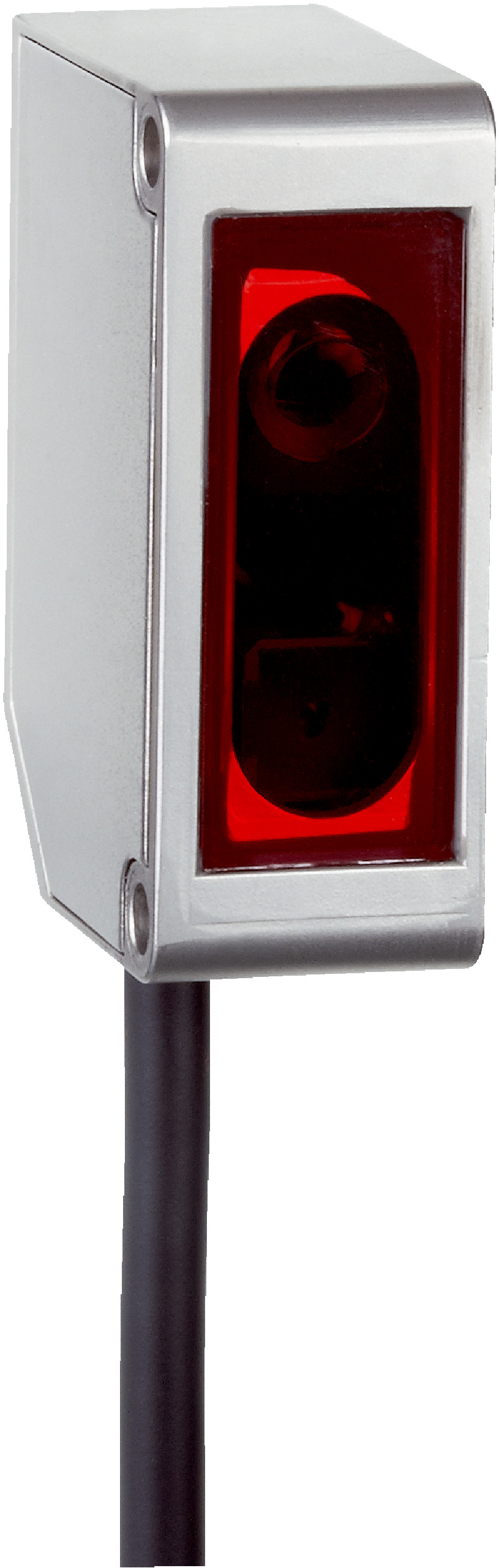

Laser Distance Sensor OD1-B015H05I25S02 | 10 mm to 20 mm Range | 1 µm Repeatability | IP67 Rated | by SICK
The Laser Distance Sensor OD1-B015H05I25S02 offers a measuring range from 10 mm to 20 mm with an impressive repeatability of 1 µm, making it ideal for industrial automation and precision measurement applications. With a robust IP67-rated stainless steel housing and fast response times, this sensor is perfect for quality control, robotics, and material handling tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 10 mm to 20 mm
- Repeatability: 1 µm
- Linearity: ±10 µm
- Response time: ≥ 2 ms
- Output time: ≥ 0.5 ms
- Light source: Visible red laser light, Laser class 1 (IEC 60825-1:2014)
- Typical light spot size at 15 mm: 700 µm x 500 µm
- Analog output: 4 mA to 20 mA, ≤ 300 Ω, 13.4 bit resolution
- Digital output: 1 PNP/NPN selectable
- Supply voltage: DC 12 V (-5%) to DC 24 V (+10%)
- Power consumption: ≤ 1.92 W
- Warm-up time: ≤ 5 minutes
- Enclosure rating: IP67
- Protection class: III
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +60 °C
- Humidity: 35% to 95% non-condensing
- Vibration resistance: 10 Hz to 55 Hz, 1.5 mm amplitude
- Shock resistance: 50 G
- Dimensions (H x L x W): 44mm x 31mm x 18mm
- Weight: 0.1 kg
Key Features
- Measuring range from 10 mm to 20 mm
- High repeatability of 1 µm
- Linearity of ±10 µm
- Fast response time ≥ 2 ms and output time ≥ 0.5 ms
- Visible red laser light source, Laser class 1
- Multiple switching modes including window, distance to object, and object between sensor and background
- Automatic and manual sensitivity adjustment
- Analog and digital outputs with teach-in functionality
- Robust stainless steel housing with IP67 rating
- 4-digit 7-segment display with LED status indicators
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical connections to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for precise distance measurement
- Quality control and inspection systems
- Robotics and object detection
- Material handling and packaging
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤ 1.92 W reduces energy usage
- Durable stainless steel housing extends product life and reduces waste
- IP67 rating ensures protection against dust and water, minimizing maintenance and replacement
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK OD1-B015H05I25S02 Laser Distance Sensor is available for immediate purchase. Ideal for industrial automation and precision measurement applications.
