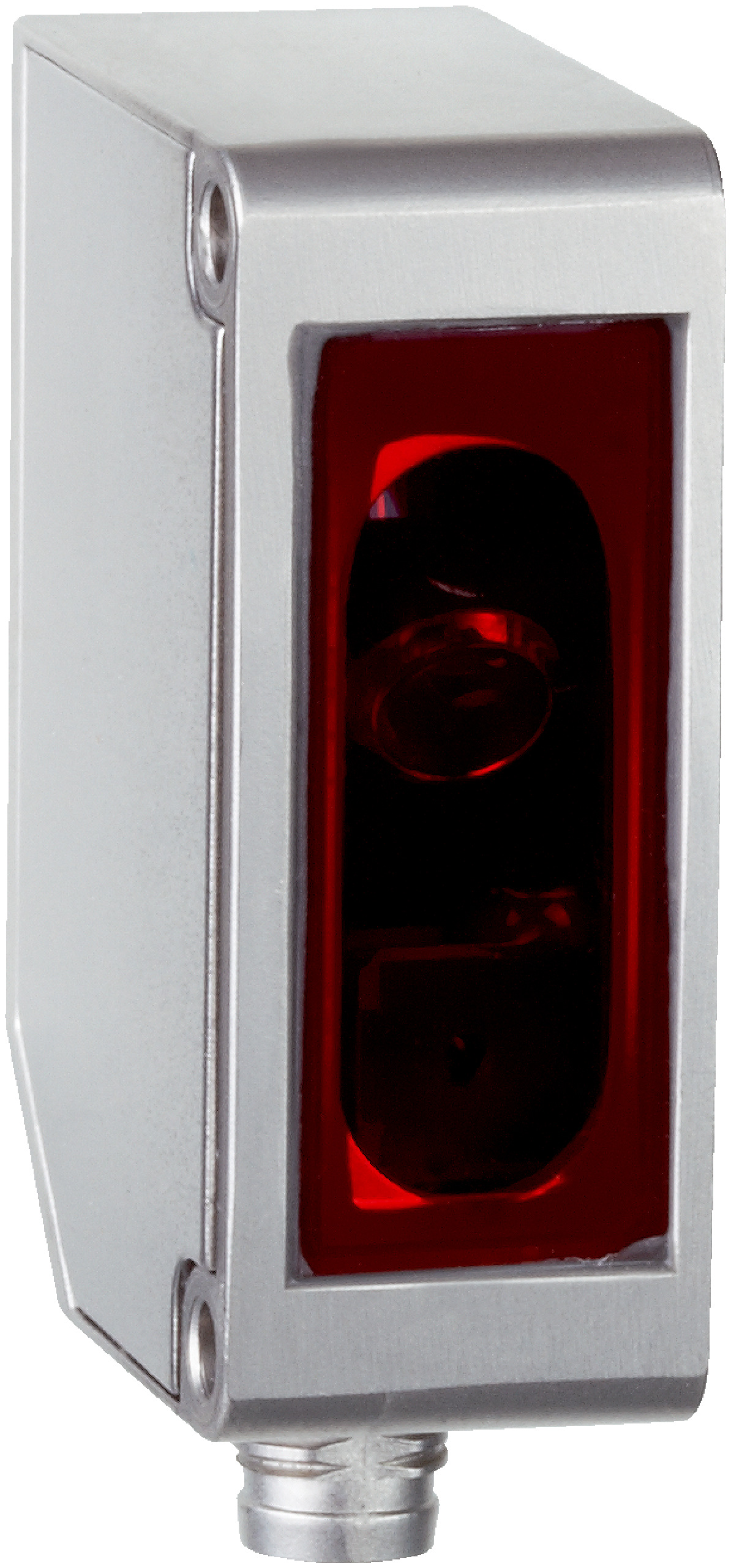

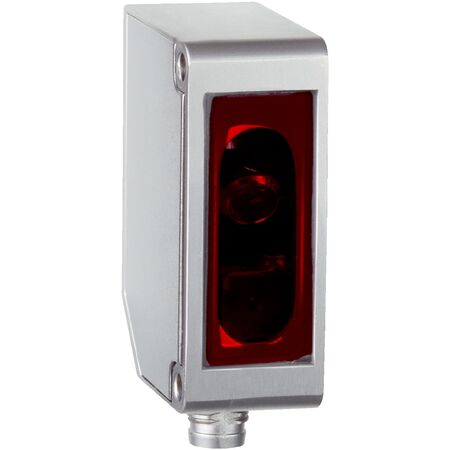

Laser Distance Sensor OD1-B015H05U14 | 10 mm to 20 mm Range | 1 µm Repeatability | IP67 Rated | by SICK
The Laser Distance Sensor OD1-B015H05U14 offers a measuring range from 10 mm to 20 mm with an impressive repeatability of 1 µm, making it ideal for industrial automation and precise distance measurement. With a fast response time of ≥ 2 ms and an IP67 rated stainless steel housing, this sensor is built for robust performance in demanding environments, ensuring reliable operation in quality control, robotics, and object detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 10 mm to 20 mm
- Repeatability: 1 µm
- Linearity: ±10 µm
- Response time: ≥ 2 ms
- Output time: ≥ 0.5 ms
- Light source: Red visible laser light
- Laser class: 1 (IEC 60825-1:2014)
- Typical light spot size at 15 mm: 700 µm x 500 µm
- Analog output: 1 voltage output, 0 V to 10 V, resolution 13.4 bit
- Supply voltage: DC 12 V (-5%) to DC 24 V (+10%)
- Power consumption: ≤ 1.92 W
- Enclosure rating: IP67
- Protection class: III
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +60 °C
- Humidity: 35% to 95% non-condensing
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1.5 mm
- Shock resistance: 50 G
- Dimensions (H x L x W): 44mm x 31mm x 18mm
- Weight: 0.1 kg
Key Features
- Measuring range from 10 mm to 20 mm
- High repeatability of 1 µm
- Linearity accuracy of ±10 µm
- Fast response time ≥ 2 ms and output time ≥ 0.5 ms
- Red visible laser light source, Laser class 1
- Multiple switching modes including window, distance to object, and object between sensor and background
- Automatic and manual sensitivity adjustment
- Averaging function from 1 to 512x
- IP67 rated stainless steel housing for robust industrial use
- 4-digit 7-segment display with LED status indicators
- Shock resistance up to 50 G and vibration resistance 10 Hz to 55 Hz
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment.
Applications
- Industrial automation for precise distance measurement
- Quality control and inspection systems
- Robotics and object detection
- Natural object measurement in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤ 1.92 W reduces energy usage
- Durable stainless steel housing extends product life and reduces waste
- Non-hazardous laser class 1 ensures safe operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
