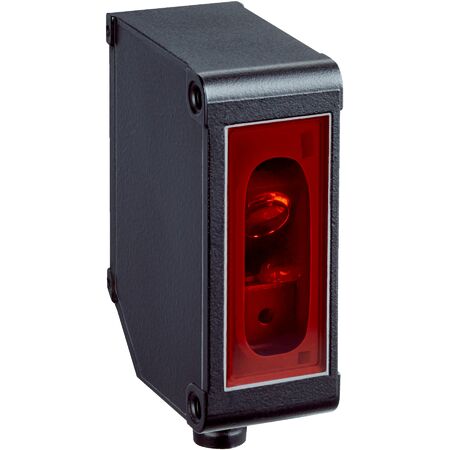

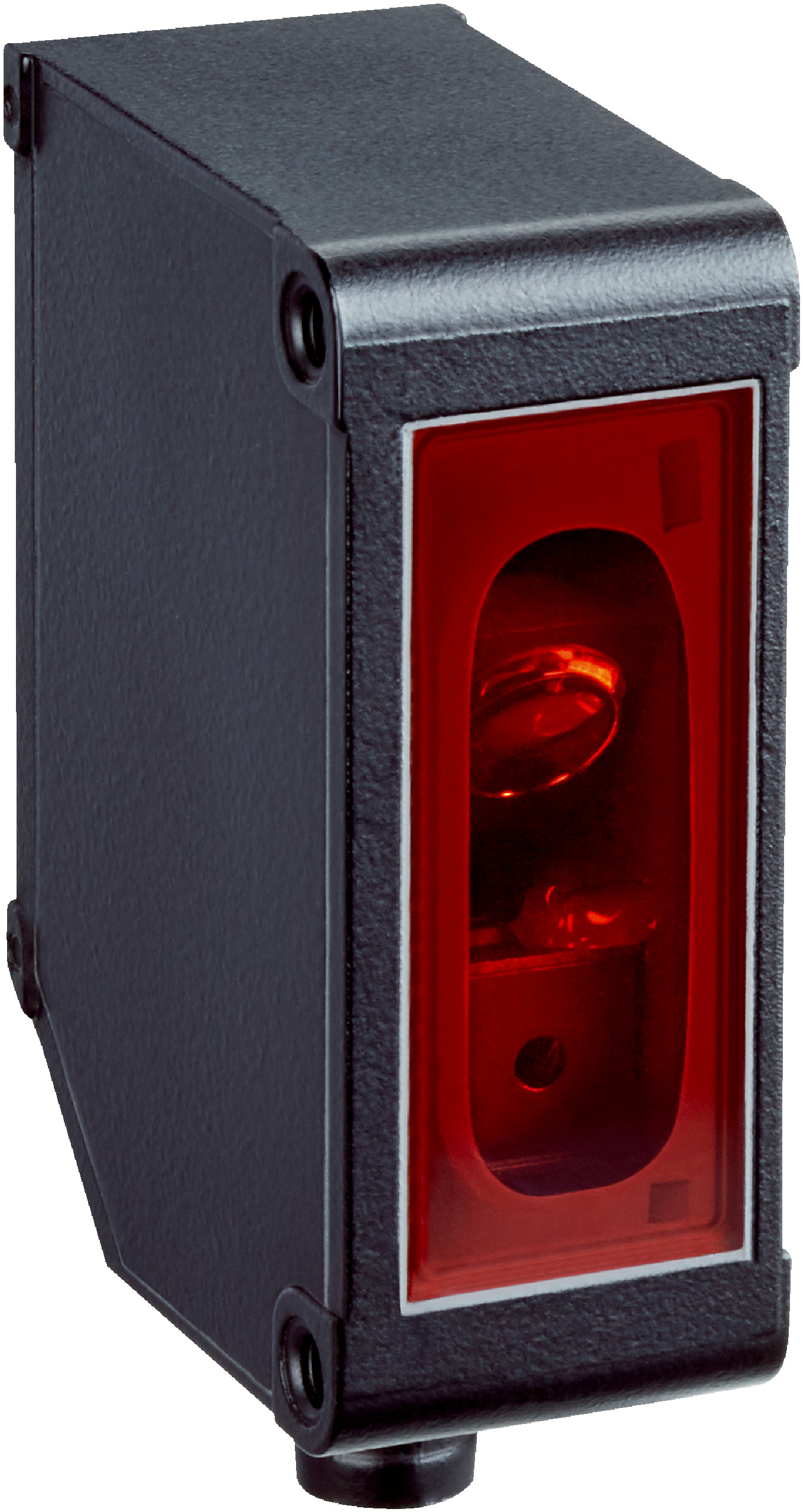

Laser Distance Sensor OD1-B035C15A14 | 20 mm to 50 mm Range | 6 µm Repeatability | IP67 Rated | by SICK
The Laser Distance Sensor OD1-B035C15A14 offers a measuring range from 20 mm to 50 mm with high repeatability of 6 µm, making it ideal for industrial automation and precise distance measurement. With a fast response time of ≥ 2 ms and an IP67 rated enclosure, this sensor is built for durability and reliability in quality control and inspection systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 20 mm to 50 mm
- Repeatability: 6 µm
- Linearity: ±30 µm
- Response time: ≥ 2 ms
- Output time: ≥ 0.5 ms
- Light source: Red visible laser, laser class 1 (IEC 60825-1:2014)
- Typical light spot size at 35 mm: 800 µm x 450 µm
- Supply voltage: DC 12 V (-5%) to DC 24 V (+10%)
- Power consumption: ≤ 1.92 W
- Warm-up time: ≤ 5 minutes
- Enclosure rating: IP67
- Protection class: III
- Connection: Male M8 4-pin connector
- Display: 4-digit 7-segment with 4 status LEDs
- Outputs: 1 digital PNP/NPN selectable, 1 analog current output 4-20 mA ≤ 300 Ω
- Interfaces: RS-485 serial, optional PROFIBUS DP via external unit
- Dimensions (H x L x W): 44mm x 31mm x 18mm
- Weight: 0.1 kg
Key Features
- Measuring range from 20 mm to 50 mm
- High repeatability of 6 µm
- Linearity accuracy of ±30 µm
- Fast response time ≥ 2 ms and output time ≥ 0.5 ms
- Red visible laser light source, laser class 1
- Multiple switching modes including window, distance to object, and object between sensor and background
- Automatic or manual sensitivity adjustment
- IP67 rated enclosure for robust protection
- 4-digit 7-segment display with 4 LEDs for status indication
- Metal aluminum housing with plastic PPSU window
- Supports RS-485 serial interface and optional PROFIBUS DP integration
- Analog current output 4 mA to 20 mA
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical wiring standards to ensure proper setup and compliance with safety regulations.
Applications
- Industrial automation for precise distance measurement
- Quality control and inspection systems
- Robotics and material handling
- Object detection and positioning in manufacturing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤ 1.92 W reduces energy usage
- Durable metal housing extends product lifespan, reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK OD1-B035C15A14 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
