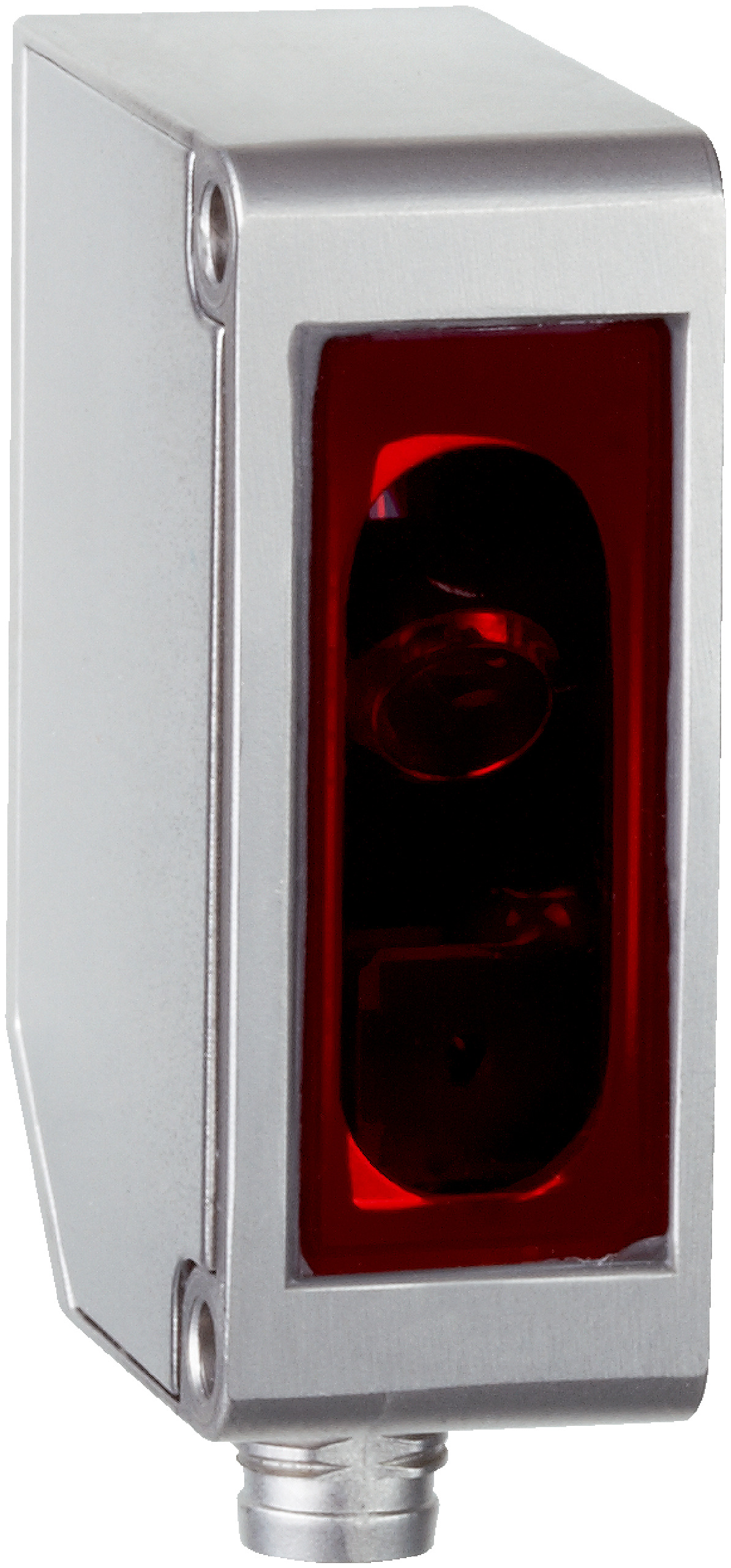

Laser Distance Sensor OD1-B035H15A14 | 20 mm to 50 mm Range | 6 µm Repeatability | IP67 Rated | by SICK
The Laser Distance Sensor OD1-B035H15A14 offers a measuring range from 20 mm to 50 mm with high repeatability of 6 µm, making it ideal for industrial automation and precise distance measurement. With a fast response time of ≥ 2 ms and an IP67 rated stainless steel housing, this sensor is built for robust performance in demanding environments, ensuring reliable operation in quality control, robotics, and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 20 mm to 50 mm
- Repeatability: 6 µm
- Linearity: ±30 µm
- Response time: ≥ 2 ms
- Output time: ≥ 0.5 ms
- Light source: Red visible laser light
- Laser class: 1 (IEC 60825-1:2014)
- Typical light spot size at 35 mm: 800 µm x 450 µm
- Supply voltage: DC 12 V (-5%) to DC 24 V (+10%)
- Power consumption: ≤ 1.92 W
- Warm-up time: ≤ 5 min
- Enclosure rating: IP67
- Protection class: III
- Connection type: Male connector, M8, 4-pin
- Display: 4-digit 7-segment with 4 LEDs
- Digital output: 1 PNP/NPN selectable
- Analog output: Current output 4 mA to 20 mA, ≤ 300 Ω
- Communication interfaces: RS-485, optional PROFIBUS DP via external unit
- Dimensions (H x L x W): 44mm x 31mm x 18mm
- Weight: 0.1 kg
Key Features
- Measuring range from 20 mm to 50 mm
- High repeatability of 6 µm
- Linearity accuracy of ±30 µm
- Fast response time ≥ 2 ms and output time ≥ 0.5 ms
- Red visible laser light source, laser class 1
- Multiple switching modes including window, distance to object, and object between sensor and background
- Automatic or manual sensitivity adjustment
- IP67 rated stainless steel housing for robust industrial use
- 4-digit 7-segment display with 4 LEDs for status indication
- Supports RS-485 serial communication and optional PROFIBUS DP integration
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for precise distance measurement
- Quality control and inspection systems
- Robotics and material handling
- Object detection and positioning in manufacturing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤1.92 W reduces energy usage
- Durable stainless steel housing extends product lifespan, reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK OD1-B035H15A14 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
