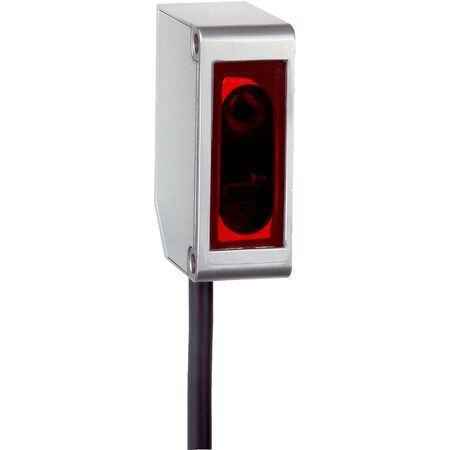

Laser Distance Sensor OD1-B035H15I25 | 20 mm to 50 mm Range | 6 µm Repeatability | IP67 Rated | by SICK
The Laser Distance Sensor OD1-B035H15I25 offers a measuring range from 20 mm to 50 mm with a high repeatability of 6 µm, making it ideal for industrial automation and precise distance measurement. With a fast response time of ≥ 2 ms and an IP67 rated stainless steel housing, this sensor is built for robust performance in demanding environments, ensuring reliability in quality control and inspection systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 20 mm to 50 mm
- Repeatability: 6 µm
- Linearity: ±30 µm
- Response time: ≥ 2 ms
- Output time: ≥ 0.5 ms
- Light source: Red visible laser light, Laser class 1 (IEC 60825-1:2014)
- Typical light spot size at 35 mm: 800 µm x 450 µm
- Analog output: 4 mA to 20 mA, ≤ 300 Ω, 13.4 bit resolution
- Digital output: 1 PNP/NPN selectable current output
- Supply voltage: DC 12 V (-5%) to DC 24 V (+10%)
- Power consumption: ≤ 1.92 W
- Warm-up time: ≤ 5 minutes
- Enclosure rating: IP67
- Protection class: III
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +60 °C
- Humidity: 35% to 95% non-condensing
- Vibration resistance: 10 Hz to 55 Hz, 1.5 mm amplitude
- Shock resistance: 50 G
- Dimensions (H x L x W): 44mm x 31mm x 18mm
- Weight: 0.1 kg
Key Features
- Measuring range from 20 mm to 50 mm
- High repeatability of 6 µm
- Linearity accuracy of ±30 µm
- Fast response time ≥ 2 ms and output time ≥ 0.5 ms
- Red visible laser light source, Laser class 1
- Automatic and manual sensitivity adjustment
- Multiple switching modes including window, distance to object, and object between sensor and background
- IP67 rated stainless steel housing for robust industrial use
- 4-digit 7-segment display with LED status indicators
- Supports both analog (4-20 mA) and digital (PNP/NPN selectable) outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical wiring standards to ensure proper setup and compliance with safety regulations.
Applications
- Industrial automation for precise distance measurement
- Quality control and inspection systems
- Robotics and material handling
- Natural object detection in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤1.92 W reduces energy usage
- Durable stainless steel housing extends product lifespan, reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK OD1-B035H15I25 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
