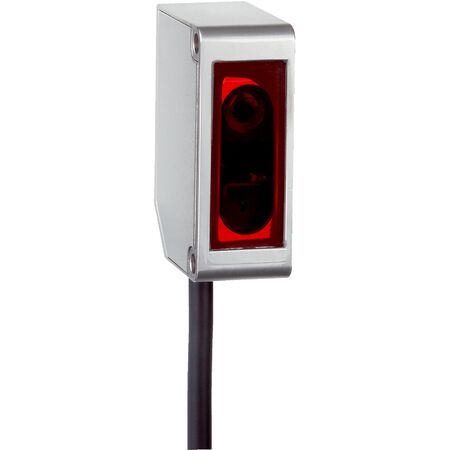

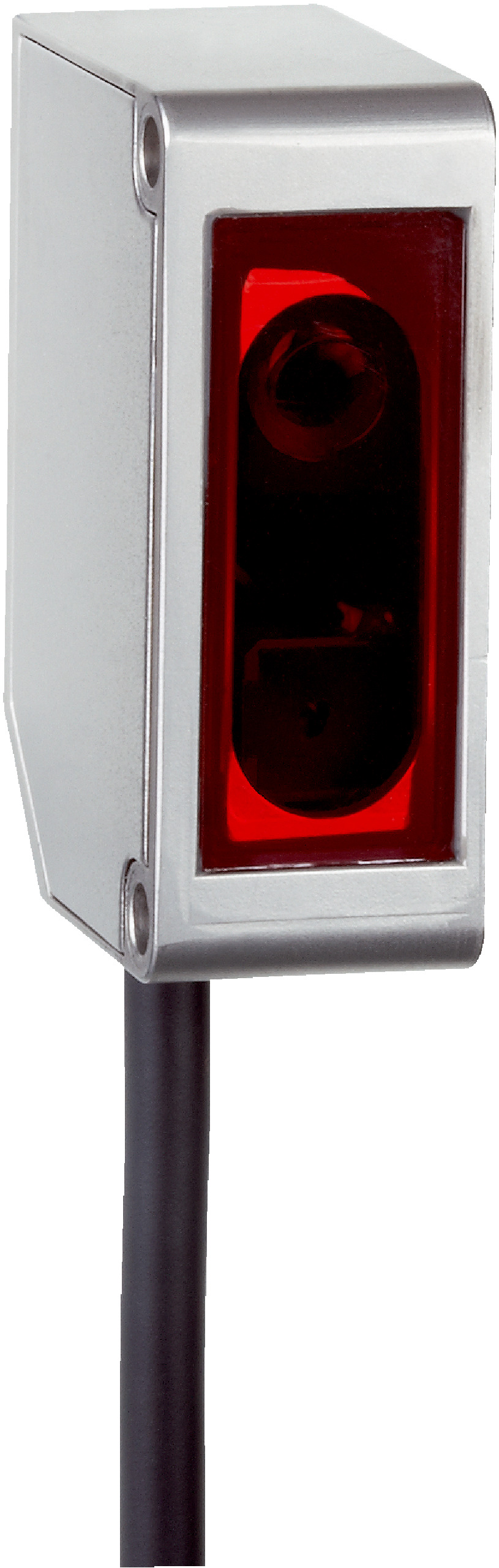

Laser Distance Sensor OD1-B035H15U25 | 20 mm to 50 mm Range | 6 µm Repeatability | IP67 Rated | by SICK
The Laser Distance Sensor OD1-B035H15U25 offers a measuring range from 20 mm to 50 mm with high repeatability of 6 µm, making it ideal for industrial automation and precise distance measurement. With a robust IP67-rated stainless steel housing and fast response times, this sensor is perfect for quality control, robotics, and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 20 mm to 50 mm
- Repeatability: 6 µm
- Linearity: ±30 µm
- Response time: ≥ 2 ms
- Output time: ≥ 0.5 ms
- Light source: Red visible laser light, Laser class 1 (IEC 60825-1:2014)
- Typical light spot size at 35 mm: 800 µm x 450 µm
- Supply voltage: DC 12 V (-5%) to DC 24 V (+10%)
- Power consumption: ≤ 1.92 W
- Enclosure rating: IP67
- Protection class: III
- Display: 4-digit 7-segment with 4 LEDs for status
- Connection: Cable with male M12, 5-pin connector, 30 cm
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +60 °C
- Humidity: 35% to 95% non-condensing
- Vibration resistance: 10 Hz to 55 Hz, 1.5 mm amplitude
- Shock resistance: 50 G
- Dimensions (H x L x W): 44mm x 31mm x 18mm
- Weight: 0.1 kg
Key Features
- Measuring range from 20 mm to 50 mm
- High repeatability of 6 µm
- Linearity accuracy of ±30 µm
- Fast response time ≥ 2 ms and output time ≥ 0.5 ms
- Red visible laser light source, Laser class 1
- Multiple switching modes including window, distance to object, and object between sensor and background
- Automatic and manual sensitivity adjustment
- Analog and digital outputs with teach-in functionality
- Robust stainless steel housing with IP67 rating
- 4-digit 7-segment display with LED status indicators
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for precise distance measurement
- Quality control and inspection systems
- Robotics and material handling
- Object detection and positioning in manufacturing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤ 1.92 W reduces energy usage
- Durable stainless steel housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK OD1-B035H15U25 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
