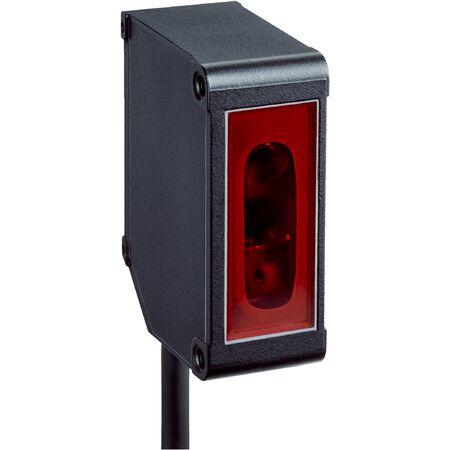

Laser Distance Sensor OD1-B100C50I25 | 50 mm to 150 mm Range | 20 µm Repeatability | IP67 Rated | by SICK
The Laser Distance Sensor OD1-B100C50I25 offers a measuring range from 50 mm to 150 mm with high repeatability of 20 µm, making it ideal for industrial automation and precise distance measurement. With a robust IP67-rated aluminum housing and fast response times, this sensor is perfect for quality control, robotics, and natural object detection in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 50 mm to 150 mm
- Repeatability: 20 µm
- Linearity: ±100 µm
- Response time: ≥ 2 ms
- Output time: ≥ 0.5 ms
- Light source: Visible red laser light, Laser class 1
- Typical light spot size at 100 mm: 700 µm x 600 µm
- Analog output: 4 mA to 20 mA, ≤ 300 Ω, 13.4 bit resolution
- Digital output: 1 PNP/NPN selectable
- Supply voltage: DC 12 V (-5%) to DC 24 V (+10%)
- Power consumption: ≤ 1.92 W
- Enclosure rating: IP67
- Operating temperature: -10 °C to +50 °C
- Shock resistance: 50 G
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1.5 mm
- Dimensions (H x L x W): 44mm x 31mm x 18mm
- Weight: 0.1 kg
Key Features
- Measuring range from 50 mm to 150 mm
- High repeatability of 20 µm
- Linearity accuracy of ±100 µm
- Fast response time ≥ 2 ms and output time ≥ 0.5 ms
- Visible red laser light source, Laser class 1
- Multiple switching modes including window, distance to object, and object between sensor and background
- Automatic and manual sensitivity adjustment
- Analog and digital outputs with teach-in functionality
- Robust metal aluminum housing with IP67 rating
- Operating temperature range from -10 °C to +50 °C
- Shock resistance up to 50 G and vibration resistance 10 Hz to 55 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical wiring standards to ensure proper setup and compliance.
Applications
- Industrial automation for precise distance measurement
- Quality control and inspection systems
- Robotics and material handling
- Natural object detection in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤ 1.92 W reduces energy usage
- Durable metal housing extends product life and reduces waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK OD1-B100C50I25 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
