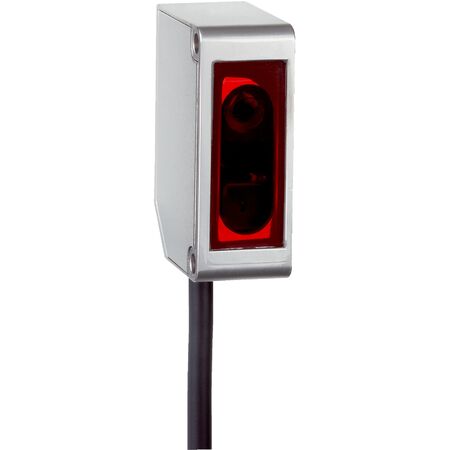

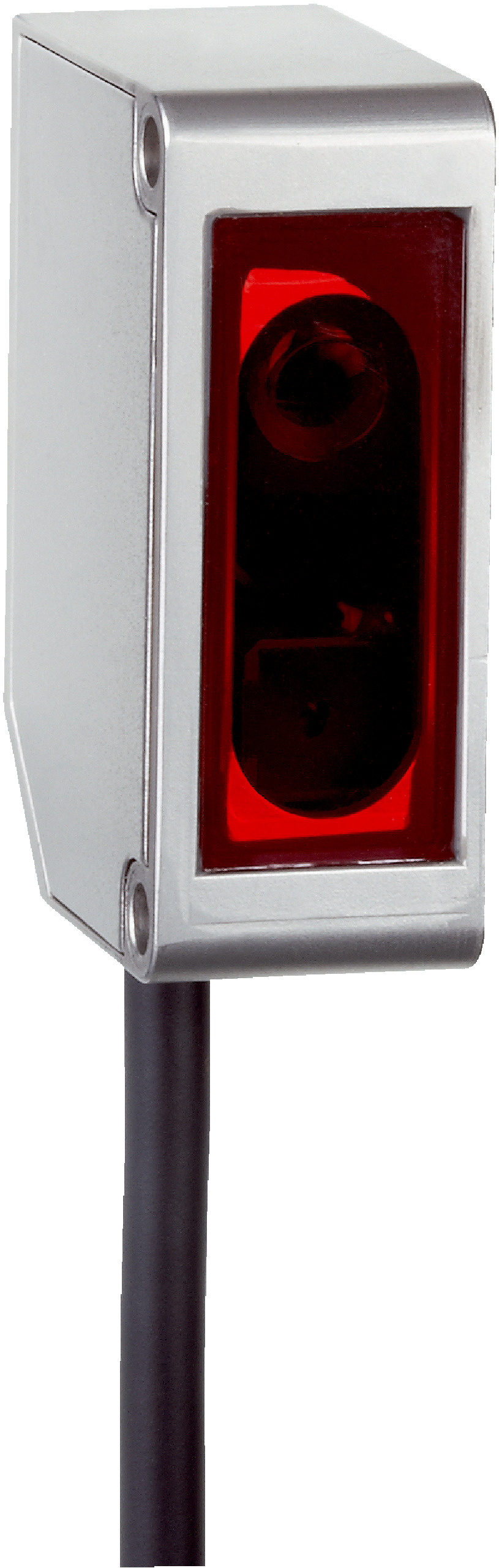

Laser Distance Sensor OD1-B100H50A15 | 50 mm to 150 mm Range | 20 µm Repeatability | IP67 Rated | by SICK
The Laser Distance Sensor OD1-B100H50A15 is designed for precise distance measurement in industrial automation, featuring a measuring range of 50 mm to 150 mm and a high repeatability of 20 µm. With a fast response time of ≥ 2 ms and an IP67 rated enclosure, this sensor is perfect for quality control, object detection, and integration with advanced evaluation units.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 50 mm to 150 mm
- Repeatability: 20 µm
- Linearity: ±100 µm
- Response time: ≥ 2 ms
- Output time: ≥ 0.5 ms
- Light source: Red visible laser light
- Laser class: 1 (IEC 60825-1:2014)
- Typical light spot size at 100 mm: 700 µm x 600 µm
- Supply voltage: DC 12 V (-5%) to DC 24 V (+10%)
- Power consumption: ≤ 1.92 W
- Warm-up time: ≤ 5 minutes
- Enclosure rating: IP67
- Protection class: III
- Display: 4-digit 7-segment with 4 LEDs
- Connection: Cable with male M12, 5-pin connector, 30 cm
- Ambient temperature operation: -10 °C to +50 °C
- Ambient temperature storage: -20 °C to +60 °C
- Humidity: 35% to 95% non-condensing
- Vibration resistance: 10 Hz to 55 Hz, 1.5 mm amplitude
- Shock resistance: 50 G
- Dimensions (H x L x W): 44mm x 31mm x 18mm
- Weight: 0.1 kg
Key Features
- Measuring range from 50 mm to 150 mm
- High repeatability of 20 µm
- Linearity accuracy of ±100 µm
- Fast response time ≥ 2 ms and output time ≥ 0.5 ms
- Red visible laser light source, Laser class 1
- Multiple switching modes including window, distance to object, and object between sensor and background
- Automatic or manual sensitivity adjustment
- IP67 rated enclosure for robust protection
- Stainless steel housing with plastic (PPSU) window
- 4-digit 7-segment display with 4 LEDs for status indication
- Supports RS-485 serial interface and optional PROFIBUS DP integration
- Digital and analog current outputs (4 mA to 20 mA)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper integration and compliance with safety standards.
Applications
- Industrial automation for precise distance measurement
- Quality control and inspection in manufacturing
- Object detection and positioning in production lines
- Integration with evaluation units for advanced sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤ 1.92 W reduces energy usage
- Durable stainless steel housing extends product lifespan, reducing waste
- IP67 rating ensures protection against dust and water, minimizing maintenance and replacement
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK OD1-B100H50A15 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
