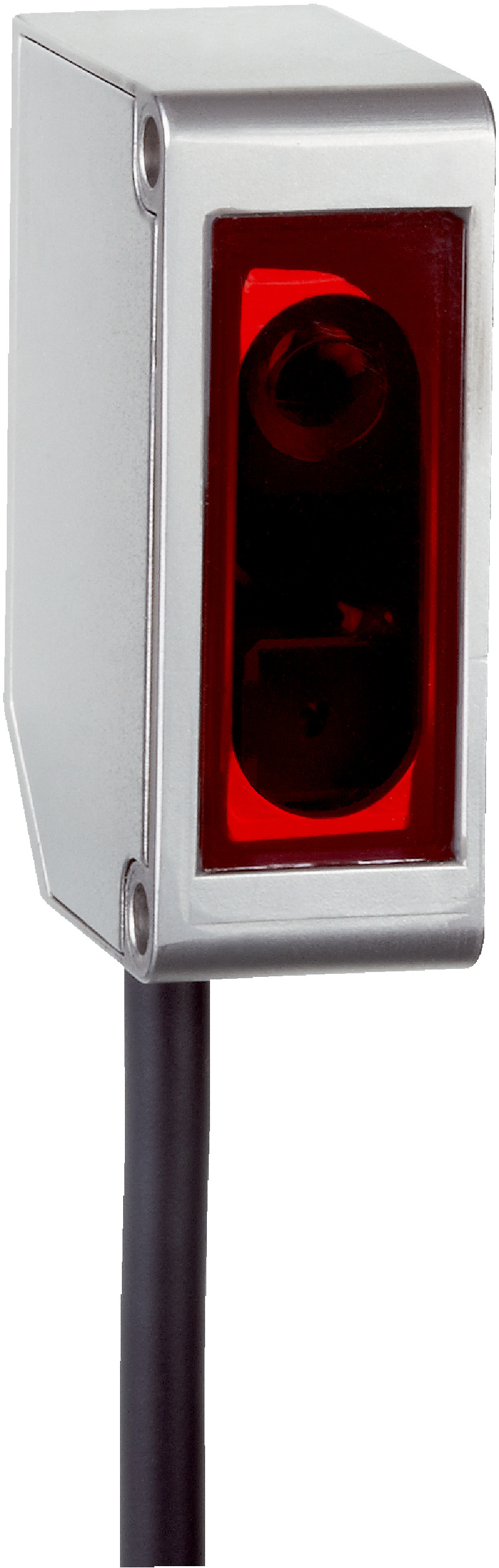

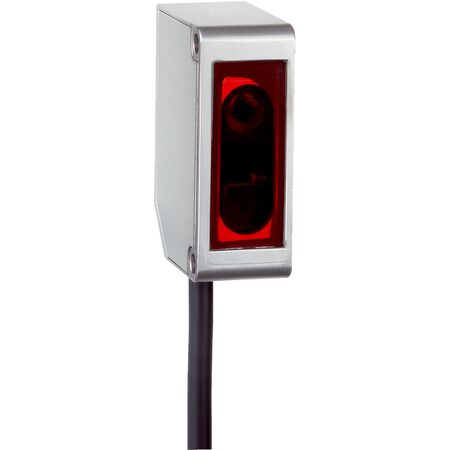

Laser Distance Sensor OD1-B100H50I25 | 50 mm to 150 mm Range | 20 µm Repeatability | IP67 Rated | by SICK
The Laser Distance Sensor OD1-B100H50I25 offers a measuring range from 50 mm to 150 mm with high repeatability of 20 µm, making it ideal for industrial automation and precise distance measurement. With a robust IP67-rated stainless steel housing and multiple output options, this sensor is perfect for quality control, robotics, and natural object detection in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 50 mm to 150 mm
- Repeatability: 20 µm
- Linearity: ± 100 µm
- Response time: ≥ 2 ms
- Output time: ≥ 0.5 ms
- Light source: Visible red laser light
- Laser class: 1 (IEC 60825-1:2014)
- Typical light spot size at 100 mm: 700 µm x 600 µm
- Supply voltage: DC 12 V (-5%) to DC 24 V (+10%)
- Power consumption: ≤ 1.92 W
- Enclosure rating: IP67
- Protection class: III
- Digital output: 1 PNP/NPN selectable
- Analog output: 4 mA to 20 mA, ≤ 300 Ω, 13.4 bit resolution
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +60 °C
- Vibration resistance: 10 Hz to 55 Hz, 1.5 mm amplitude
- Shock resistance: 50 G
- Dimensions (H x L x W): 44mm x 31mm x 18mm
- Weight: 0.1 kg
Key Features
- Measuring range from 50 mm to 150 mm
- High repeatability of 20 µm
- Laser class 1 for safe visible red light operation
- Multiple switching modes including window, distance to object, and object between sensor and background
- Automatic and manual sensitivity adjustment
- Analog and digital outputs with teach-in functionality
- Robust stainless steel housing with IP67 rating
- 4-digit 7-segment display with LED status indicators
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical connections to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for precise distance measurement
- Quality control and inspection systems
- Robotics and material handling
- Natural object detection in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤ 1.92 W reduces energy usage
- Durable stainless steel housing extends product life and reduces waste
- IP67 rating ensures protection against dust and water, minimizing maintenance and replacement
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK OD1-B100H50I25 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
