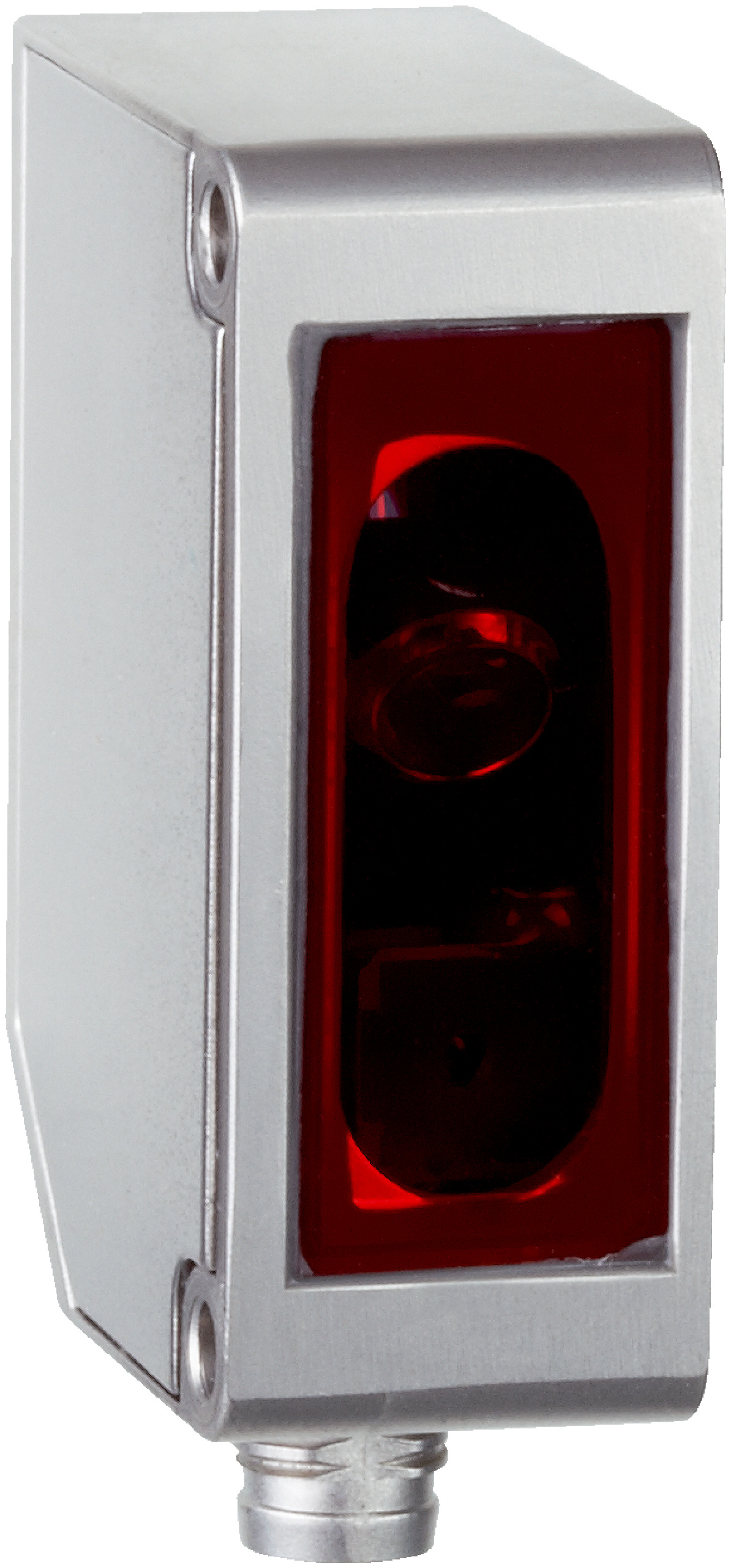

Laser Distance Sensor OD1-B100H50U14 | 50 mm to 150 mm Range | 20 µm Repeatability | IP67 Rated | by SICK
The Laser Distance Sensor OD1-B100H50U14 offers a measuring range from 50 mm to 150 mm with high repeatability of 20 µm, making it ideal for industrial automation and precise distance measurement. With a fast response time of ≥ 2 ms and an IP67 rated stainless steel housing, this sensor is built for robust performance in demanding environments, ensuring reliable operation in quality control and inspection systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 50 mm to 150 mm
- Repeatability: 20 µm
- Linearity: ±100 µm
- Response time: ≥ 2 ms
- Output time: ≥ 0.5 ms
- Light source: Red visible laser light
- Laser class: 1 (IEC 60825-1:2014)
- Analog output: 0 V to 10 V, 13.4 bit resolution
- Supply voltage: DC 12 V (-5%) to DC 24 V (+10%)
- Power consumption: ≤ 1.92 W
- Enclosure rating: IP67
- Protection class: III
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +60 °C
- Weight: 70 g
- Housing material: Stainless steel
- Connection type: Male connector, M8, 4-pin
- Dimensions (H x L x W): 44mm x 31mm x 18mm
- Weight: 0.1 kg
Key Features
- Measuring range from 50 mm to 150 mm
- High repeatability of 20 µm
- Linearity accuracy of ±100 µm
- Fast response time ≥ 2 ms and output time ≥ 0.5 ms
- Red visible laser light source, Laser class 1
- Multiple switching modes including window, distance to object, and object between sensor and background
- Automatic and manual sensitivity adjustment
- Analog voltage output (0 V to 10 V) with 13.4 bit resolution
- IP67 rated stainless steel housing for robust industrial use
- 4-digit 7-segment display with LED status indicators
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical connections to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for precise distance measurement
- Quality control and inspection systems
- Robotics and material handling
- Natural object detection in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤ 1.92 W reduces energy usage
- Durable stainless steel housing extends product lifespan, reducing waste
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK OD1-B100H50U14 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
