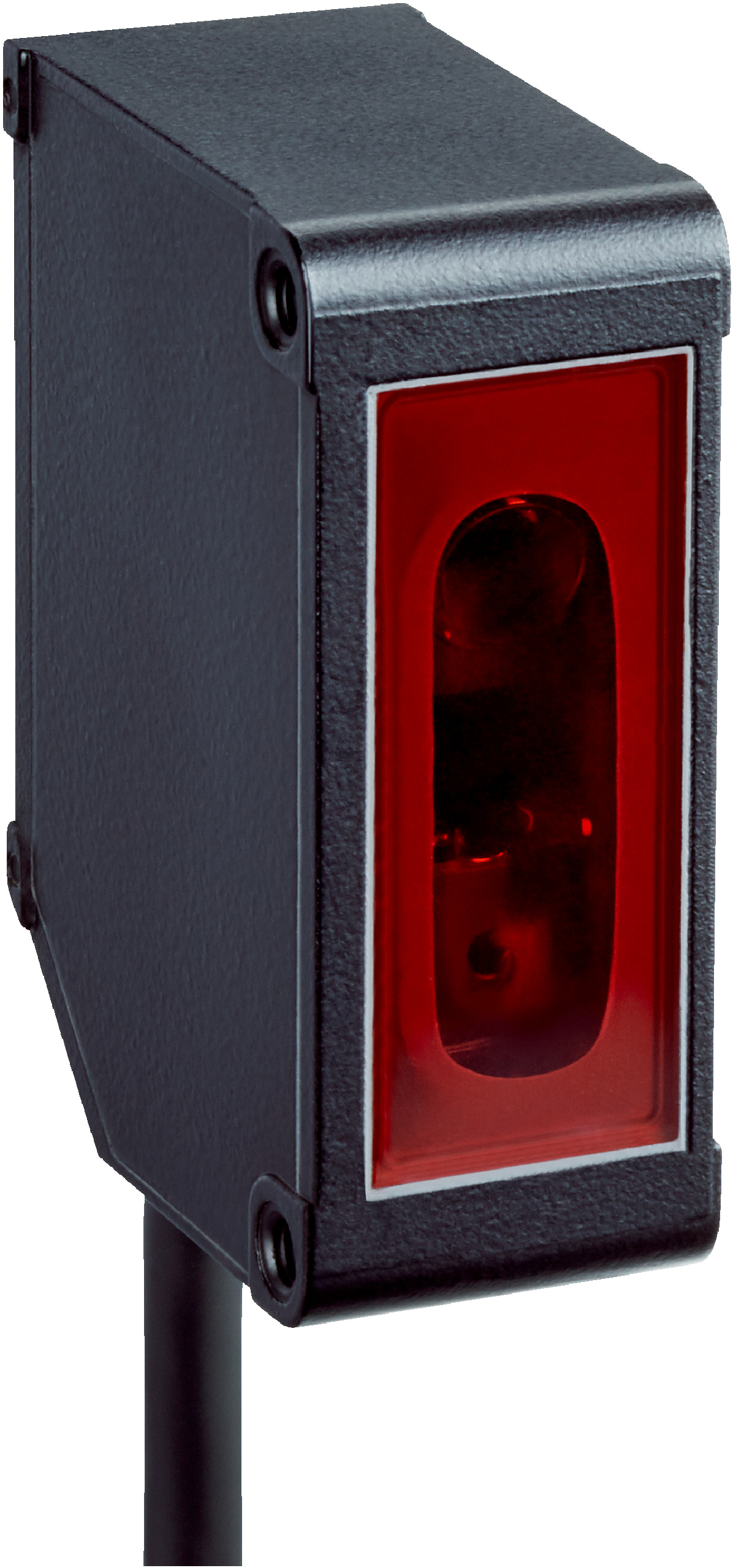

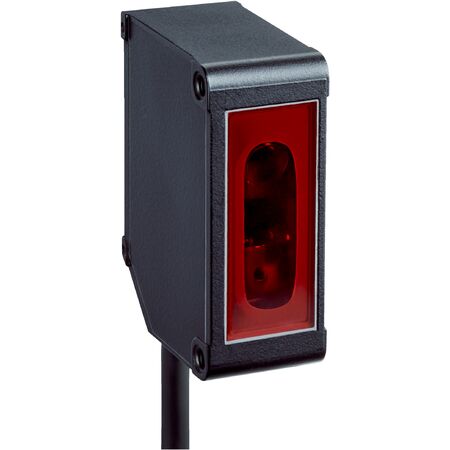

Laser Distance Sensor OD1-B150F0AQ15 | 50 mm to 250 mm Range | 200 µm Repeatability | IP67 Rated | by SICK
The Laser Distance Sensor OD1-B150F0AQ15 offers a measuring range from 50 mm to 250 mm with high repeatability of 200 µm, making it ideal for industrial automation and precise distance measurement. With a fast response time of ≥ 2 ms and an IP67 rated enclosure, this sensor is built for durability and reliability in demanding environments, ensuring accurate object detection and positioning.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 50 mm to 250 mm
- Repeatability: 200 µm
- Response time: ≥ 2 ms
- Output time: ≥ 0.5 ms
- Light source: Red visible laser light, laser class 2 (IEC 60825-1:2014)
- Typical light spot size at 150 mm: 2 mm x 1.3 mm
- Supply voltage: DC 12 V (-5%) to DC 24 V (+10%)
- Power consumption: ≤ 1.92 W
- Warm-up time: ≤ 5 minutes
- Enclosure rating: IP67
- Protection class: III
- Connection type: Cable with male M12, 5-pin connector, 30 cm
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +60 °C
- Relative humidity: 35% to 95% non-condensing
- Vibration resistance: 10 Hz to 55 Hz, 1.5 mm amplitude
- Shock resistance: 50 G
- Dimensions (H x L x W): 44mm x 31mm x 18mm
- Weight: 0.1 kg
Key Features
- Measuring range from 50 mm to 250 mm
- High repeatability of 200 µm
- Fast response time ≥ 2 ms and output time ≥ 0.5 ms
- Red visible laser light source, laser class 2
- Multiple switching modes including window, distance to object, and object between sensor and background
- Automatic or manual sensitivity adjustment
- Digital outputs can be taught in and invertible
- IP67 rated enclosure for robust protection
- 4-digit 7-segment display with 4 LEDs for status indication
- Selectable PNP/NPN digital output
- Multifunctional input for laser-off, external teach-in, or trigger
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for precise distance measurement
- Quality control and inspection systems
- Object detection and positioning in manufacturing
- Robotics and material handling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤ 1.92 W reduces energy usage
- Durable IP67 rated housing extends product life and reduces waste
- Non-contact measurement reduces wear and tear on equipment
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK OD1-B150F0AQ15 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
