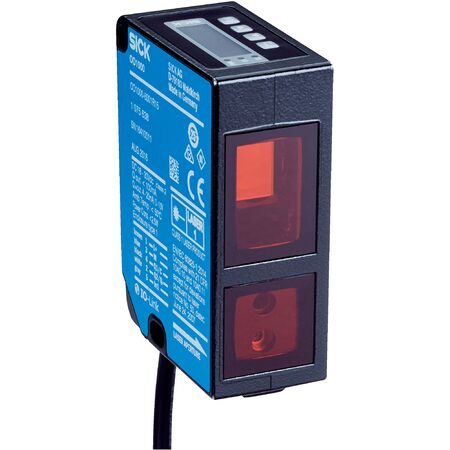

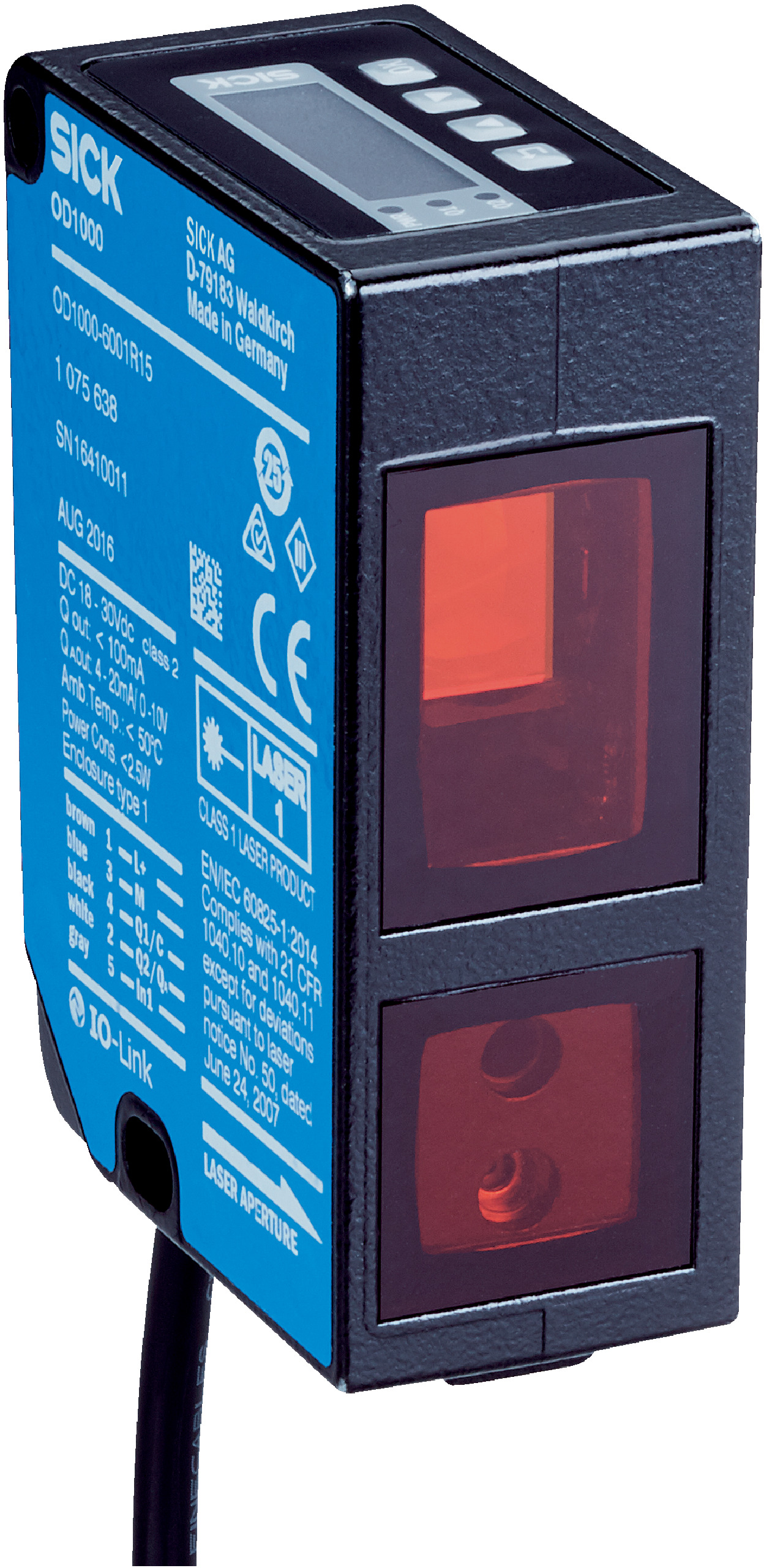

Laser Distance Sensor OD1000-6001R15 | 200 mm to 1000 mm Range | 0.4 mm Repeatability | IP65 & IP67 Rated | by SICK
The Laser Distance Sensor OD1000-6001R15 offers a measuring range from 200 mm to 1000 mm with high repeatability of 0.4 mm, making it ideal for industrial automation and quality control applications. With a fast response time of ≥ 1.5 ms and an IP65/IP67 enclosure rating, this sensor is built for reliable performance in harsh environments, ensuring precise distance measurement for robotics and material handling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 200 mm to 1000 mm
- Repeatability: 0.4 mm
- Linearity: ±1.5 mm
- Response time: ≥ 1.5 ms
- Output time: ≥ 0.33 ms
- Light source: Visible red laser light, Laser class 1 (IEC 60825-1:2014)
- Typical light spot size: 1.5 mm x 1.5 mm (200 mm to 1000 mm)
- Supply voltage: DC 18 V to 30 V
- Power consumption: ≤ 2.5 W
- Ripple: ≤ 5 V pp
- Warm-up time: < 10 minutes
- Enclosure rating: IP65, IP67
- Protection class: III (EN 50178)
- Display: OLED with status LEDs
- Connection: Cable with M12, 5-pin, A-coded, 30 cm
- Digital output: 1 push-pull (PNP/NPN)
- Analog output: 4 mA to 20 mA (≤ 600 Ω) or 0 V to 10 V (> 20,000 Ω), 16 bit resolution
- Interfaces: IO-Link V1.1 and V1.0, data transmission rates 230.4 kbit/s (COM3) and 38.4 kbit/s (COM2)
- Dimensions (H x L x W): 72mm x 53mm x 26mm
- Weight: 0.28 kg
Key Features
- Measuring range from 200 mm to 1000 mm
- High repeatability of 0.4 mm and linearity of ±1.5 mm
- Fast response time ≥ 1.5 ms and output time ≥ 0.33 ms
- Visible red laser light source, laser class 1 for safety
- Adjustable average value or media filter
- Multiple switching modes including Distance to Object and switching window
- Teach-in functions for digital and analog outputs
- Multifunctional input for laser off, external teach-in, or deactivation
- OLED display with status LEDs and rotatable display
- Alarm function and time functions (ON/OFF delay, 1 shot)
- Enclosure rated IP65 and IP67 for harsh environments
- Robust metal zinc diecast housing with plastic window
- Cable with M12 5-pin male connector, 30 cm length
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment for optimal performance.
Applications
- Industrial automation for precise distance measurement
- Quality control and inspection systems
- Robotics and material handling
- Level measurement and object detection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤ 2.5 W reduces energy usage
- Durable metal housing extends product lifespan, reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK OD1000-6001R15 Laser Distance Sensor is available for immediate purchase, ideal for industrial automation, quality control, and robotics applications.
